16 Port 32 Port PLC Splitter in ABS or PC Fiber Optic Splice Tray for FTTH Optical Distribution Frame ODF
Price:
$2~$5
MOQ:
10 pieces
Delivery Time:
2~25 Work Day
Brand:
ANSHI
Product Description

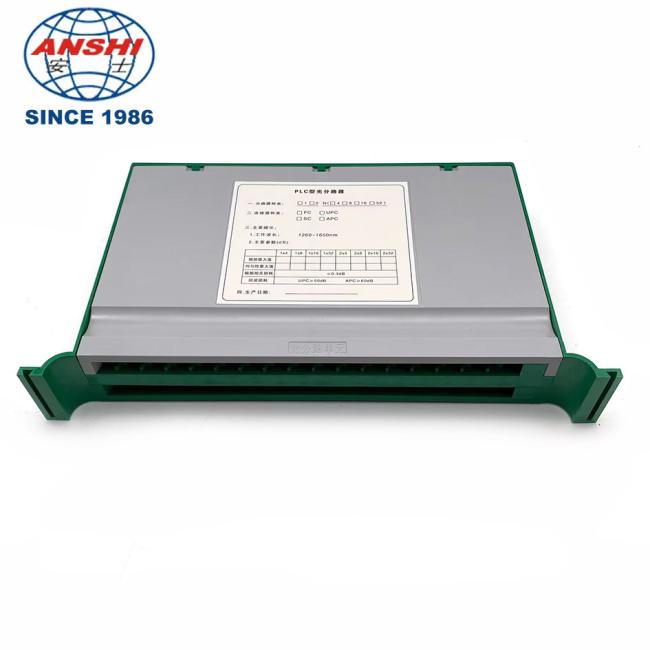

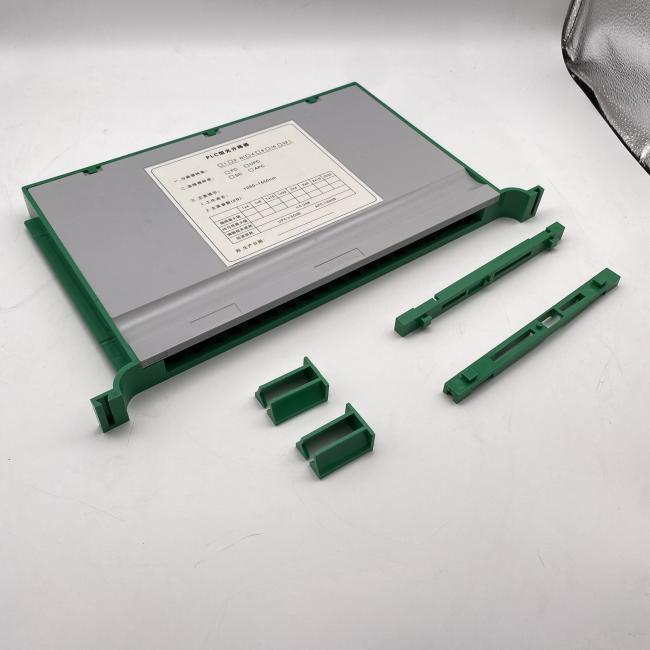

1 X 32 1 X 16 Fiber PLC Splitter 32 Port Fiber Optic Splice Tray With Adapters
1x32 fiber PLC optical splitter in 32 port splice tray with adapters Optical Distribution Frames ODF
Product Features
- Customizable splitting ratio
- Light weight with high strength and dustproof construction
- Available in FC, SC, and LC adapter types
- Convenient and easy network setup
- Compatible with Module type ODF installation
Applications
- Optoelectronics communication systems
- CATV networks
- LAN installations
Ordering Information
- Available in 1U PLC Splitter with tray configurations
- Selectable splitting ratios: 1x16 or 1x32
- Customizable cable lengths
- Multiple connector options available
Performance Specifications
| Type | 1x2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2x2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating wavelength (nm) | 1260-1650 | |||||||||||
| Insertion loss (dB) - Typical | 3.6 | 6.8 | 10.0 | 13.0 | 16.5 | 20.5 | 4.0 | 7.3 | 10.5 | 13.5 | 17.0 | 20.5 |
| Insertion loss (dB) - Maximum | 3.8 | 7.2 | 10.7 | 13.9 | 17.2 | 22.0 | 4.2 | 7.6 | 10.8 | 14.0 | 17.5 | 22.0 |
| Uniformity (dB) - Typical | 0.4 | 0.5 | 0.6 | 1.0 | 1.0 | 2.5 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.0 |
| Uniformity (dB) - Maximum | 0.6 | 0.8 | 1.0 | 1.4 | 1.6 | 2.5 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | 2.5 |
| Polarization Dependent Loss (dB) - Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 |
| Polarization Dependent Loss (dB) - Maximum | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 | 0.4 |
| Wavelength dependent loss (dB) - Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
| Wavelength dependent loss (dB) - Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.3 | 0.5 | 0.5 | 0.5 |
| Return loss (dB) - Minimum | UPC:50 APC:55 | |||||||||||
| Directivity (dB) - Minimum | 55 | |||||||||||
| Operating temperature (°C) | -20 to 70 | |||||||||||
| Storage temperature (°C) | -40 to 85 | |||||||||||
| Optical fiber type | SMF-28e or customer required | |||||||||||
| Optical fiber length (m) | 1M or customize | |||||||||||
Remarks:
1. Measured at room temperature and excludes connector loss.
2. For devices with connectors, insertion loss will be 0.3 dB higher.
1. Measured at room temperature and excludes connector loss.
2. For devices with connectors, insertion loss will be 0.3 dB higher.
