Domed oil sight glass Speed reducers oil levels Gearboxes brass oil level sight gauge bsp & npt thread CUSTOM AVAILABLE
GrandMfg® Brass Oil sight glass winow Plugs
GRAND-MFG Domed shape oil sight glass, domed oil sight gauge, domed sight glass plug, domed sights gauge
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass Thickness: 3mm
Glass Type: Borosilicate Glass
Resist Temperature Range: -30 Cent degrees to 200 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
GrandMfg® Aluminum Oil level sight glass window indicator plugs
Material Body: Aluminum 6061 T6/Aluminum 6063
Finish: aluminum natural and aluminum oxidized color/ Anodizing color.
Seal: Viton/FKM/FPM,NBR, Aramid gasket,Teflon and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector
| item | aluminum sight glasses |
| material body | Aluminum 6061 T6/Aluminum 6063 |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | UNC,UNF,Metric and BSP(G thread) |
| size | Below you will get the size you wanted.Another size is okay. OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |

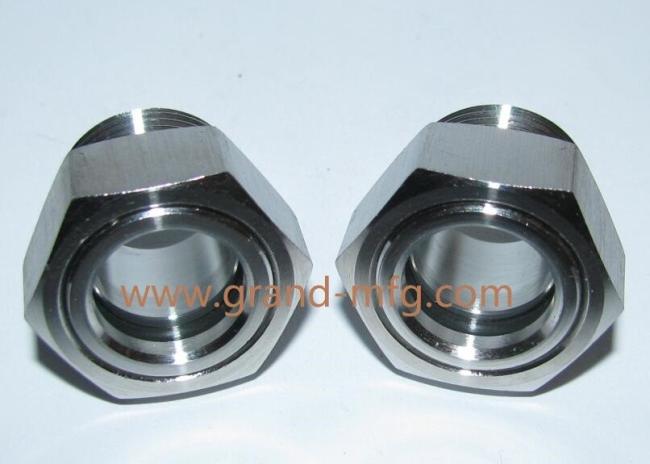

GrandMfg® stainless Steel Oil level sight glass
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket,Silicone Rubber,and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector

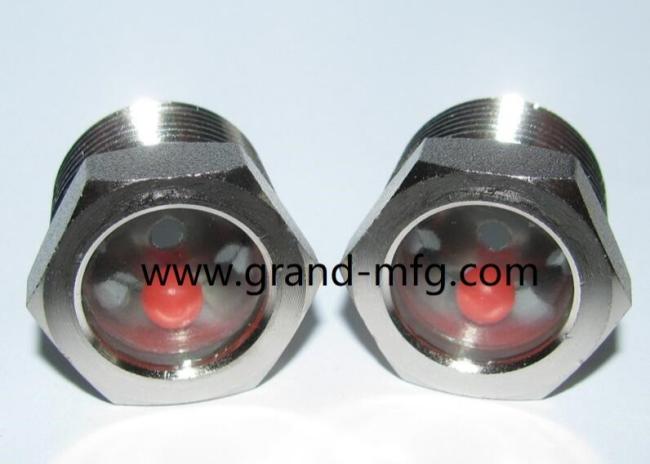

GrandMfg® fused oil level sight glass Plated
Material Body: Carbon Steel Plated
Finishing: Zinc plated,Nickel plated and chrome plated
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 8 mm
Reflectors: Stainless Steel 304 Reflector
