Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available
Fused window sights, fused sight windows, Flange fused glass oil sight glass

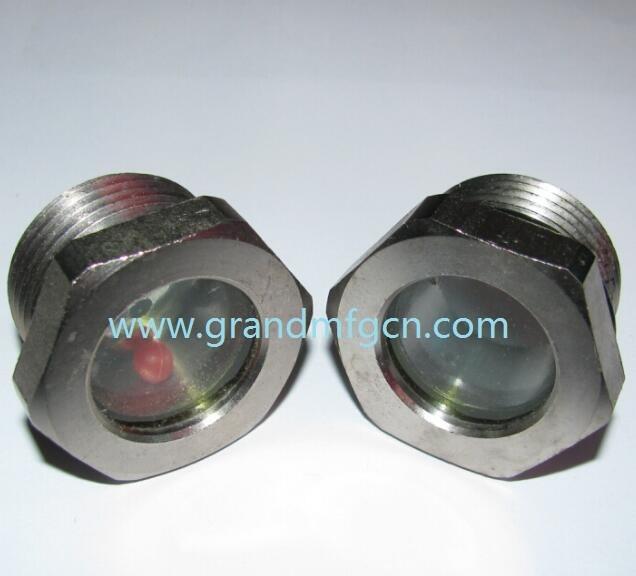

Fused glass style sight windows
Feature glass to metal bond for utmost reliability.
Plated steel bodies have convenient hex wrench surface.

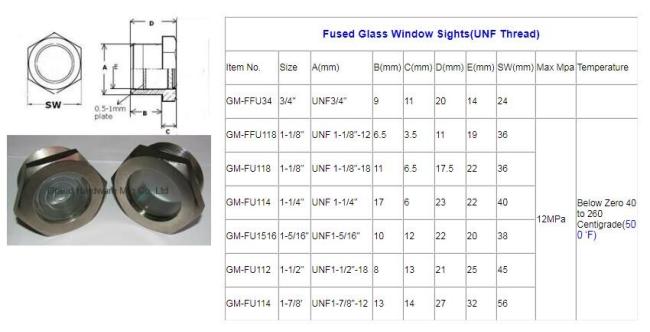

Connection are Standard NPT, UNC, UNF and BSP (G thread) from 1/4" to 2".
Windows are clear, ripple free, and flush with the front face,
Having no recess on which dirt might collect.
Specifications:
Service: Compatible gases and liquids.
Window: nature glass.
Body: plated steed and stainless steel.
Temperature: -30'C to 260 'C (500 F).
Pressure: 125 psig (8.6bar)

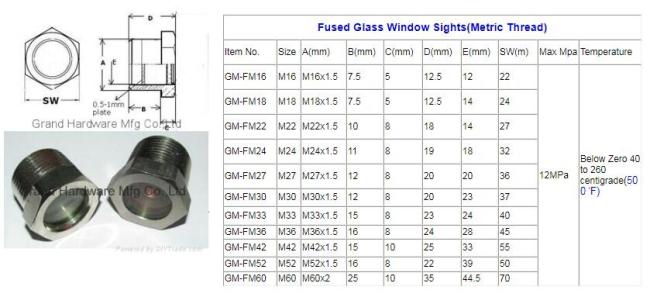

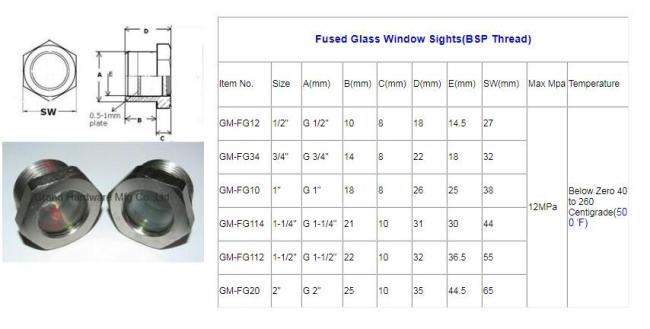

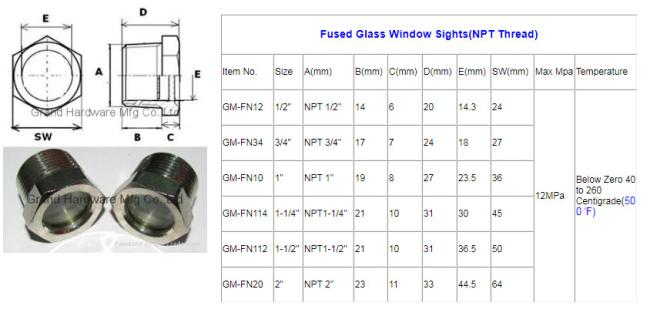

Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size: 1/4" to 2"
MOQ: 1000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer,
Compressor and Power Transmission.
| Item | Fused sight glass |
| Material | steel nickel plated |
| Window | Natural Glass |
| Glass Thickness | 2mm to 5 mm |
| Working Tempreature | : －40℃～200℃ |
| Temperature Assaults Date | : －40℃～180℃ |
| Working Pressure | 2.5, 4.0Mpa |
| Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. |
|

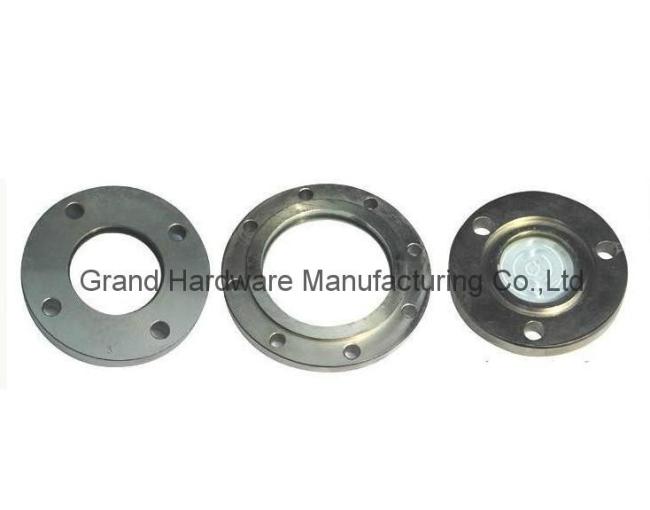

| Item | Flat flange sight glass |
| Material | steel nickel plated |
| Window | Natural Glass |
| Glass Thickness | 2mm to 5 mm |
| Working Tempreature | : －40℃～200℃ |
| Temperature Assaults Date | : －40℃～180℃ |
| Working Pressure | 2.5, 4.0Mpa |
| Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. |
|
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | Magnetic oil drain plugs |
| material | Steel and Aluminum |
| Magnet Material | NdFeb magnets and Ferrite magnets |
| Thread Type | BSP,Metric |
| finish | Steel Zinc plated, Aluminum Natural and Aluminum Oxidized Color. |
| size | Metric thread,NPT Thread and BSP thread. OEM is welcome. |
| Usage | Auto engineer,gearbox,pump,oil tank and speed reducer. |
| item | steel plugs |
| material | Carbon Steel and Al 6061 |
| Thread Type | BSP,Metric,NPT |
| finish | Steel Zinc plated,Aluminum Natural and Aluminum Anodizing |
| size | Any Size OEM are welcome. |
| Usage | Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive, Truck,Pump and Power Transimission. |
| 1)Wihtstand hight pressure hydraulic plugs. 2)Covering standards of DIN, SAE, ISO, JIS and BS etc. |
|
