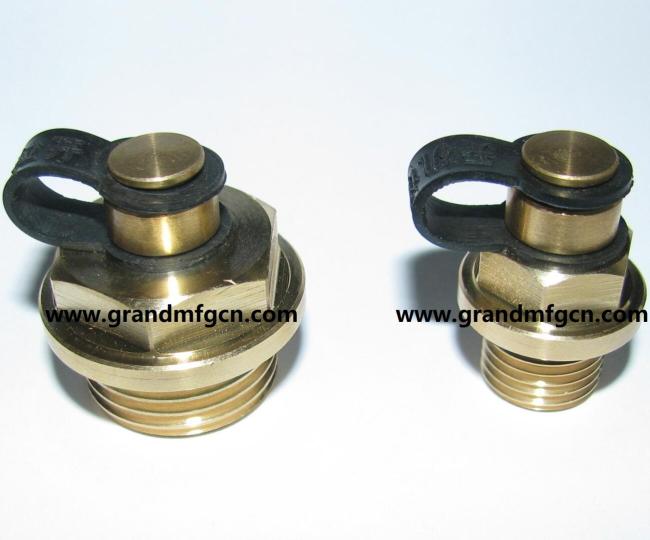

NPT BSP(G) Metric thread 3/8" 1/2" 3/4" 1"brass breather vent plugs air release valves withstand 0.15 bar pressure OEM
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
45 work days
Brand:
grand-mfg
Product Description
Material: Brass and Aluminum
Finish: Natural and Nickel Plated
Thread Type: BSP,Metric,NPT
Size: Any Size OEM are welcome.
Work Pressure: 0.005 MPa to M 0.03 MPa
Tempture Range: -30 Cent degree to 130 Cent degree.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission.
| item | brass breather vent plugs |
| material | brass or aluminum |
| Thread Type | BSP,Metric,NPT |
| finish | Natural and Nickel Plated |
| size | Any Size OEM are welcome. |
| Work Pressure | 0.005 MPa to M 0.03 Mpa |
| Tempture Range | : -30 Cent degree to 130 Cent degree. |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission. |
| item | Magnetic oil drain plugs |
| material | Steel and Aluminum |
| Magnet Material | NdFeb magnets and Ferrite magnets |
| Thread Type | BSP,Metric |
| finish | Steel Zinc plated, Aluminum Natural and Aluminum Oxidized Color. |
| size | Metric thread,NPT Thread and BSP thread. OEM is welcome. |
| Usage | Auto engineer,gearbox,pump,oil tank and speed reducer. |
| item | brass sight gauges |
| Housing | brass tube |
| tube | quartz glass tube |
| O-Ring and flat gaskets | NBR Rubber |
| Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts | 80mm to 600mm |
| item | Hydraulic oil level indicator |
| Housing | Aluminum alloy housing and inside thermoplastic (PC) |
| O-Ring and flat gaskets | NBR Rubber |
| Reflector | aluminum with printed white |
| Bolt | M10 Hexagon nut and washer in galvanized steel |
| Temperature resistant | : -20’C to 100 ‘C. / 0’F to 220 ‘F |
| Distance of two bolts | 50mm to 500mm |
| Usage | Thin-wall container, Radiator, Hydraulic reservoir and receivers. |
| item | plastic sight glasses |
| material | plastic |
| seal | NBR |
| Reflectors | Plastic PMMA |
| Resist Tempreature Range | : -30'C to 70'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Metric and BSP(G thread) |
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | brass machined parts |
| material | Brass,Copper and Bronze. |
| finish | Natural,Polished,Nickel plated and Chrome Plated |
| Processing | Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted |
| Dimension Tolerance: | CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm |
