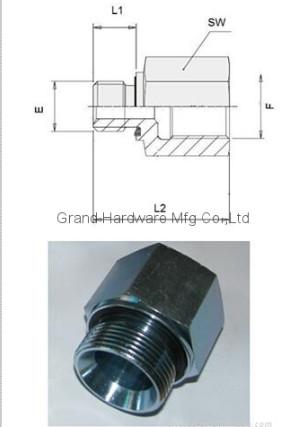

zinc plated hydraulic steel plugs (male NPT BSP Metric thread)
Grand Hardware Manufacturing Co., Ltd
& Yuhuan Yize Machinery Factory is a precision metal parts supplier.
--Professional OEM metal parts supplier in many categories.such as CNC machining parts,CNC turning parts,precision metal parts,stamping parts and punching parts.
--Especially professional in oil level sight glass,fused windows sights,breather vent plugs,wheel bolts,hydraulic adapters and hydraulic steel oil drain plugs.
--We focus on the below business:
1.High gloss cutting drill, high speed CNC and digital control processing.
2. Both metal and plastic piece parts laser radium carving.
3. Exterior parts stamping, processing and other piece parts machining.
4. Pieces of exterior anoding, wiring drawing and printing and other surface treatments
5.+/-0.01mm tolerance will be controlled.
--We supply the metal parts in compliance with customized designs by material of:
Stainless steel, mid steel, Aluminum alloy, Copper and brass, Bronze, Hardened metal.
--Finish parts surface treatment: Zinc plating, Zinc-Nickel plating, Anodising and Etc.
--We can realize the customers' idea and design perfectly by our experienced work and keep confidentially meanwhile.
--Customized drawing are welcome.
--OEM metal work is welcome.
--Both the delivery time and service will exceed your expectation.
Any more qustion,Please contact us for more details about our production capacity which you concern!
Our job is to make your job easier!
| item | sight glasses,oil gauges |
| oil drain plugs,steel plugs | |
| breather vent plugs | |
| auto radiator parts | |
| magnetic drain plugs | |
| precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome. |
|
| website | www.grandmfgcn.com |
| sales department | Grace |
| grandmfg@vip.126.com |
| item | steel sight glasses |
| material | steel |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | brass sight gauges |
| Housing | brass tube |
| tube | quartz glass tube |
| O-Ring and flat gaskets | NBR Rubber |
| Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts | 80mm to 600mm |
| item | Hydraulic oil level indicator |
| Housing | Aluminum alloy housing and inside thermoplastic (PC) |
| O-Ring and flat gaskets | NBR Rubber |
| Reflector | aluminum with printed white |
| Bolt | M10 Hexagon nut and washer in galvanized steel |
| Temperature resistant | : -20’C to 100 ‘C. / 0’F to 220 ‘F |
| Distance of two bolts | 50mm to 500mm |
| Usage | Thin-wall container, Radiator, Hydraulic reservoir and receivers. |

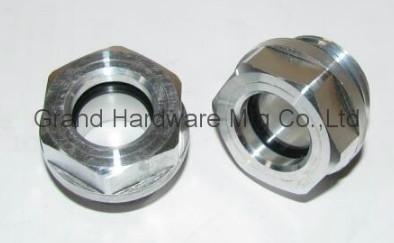

| item | aluminum sight glasses |
| material body | Aluminum 6061 T6/Aluminum 6063 |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | UNC,UNF,Metric and BSP(G thread) |
| size | Below you will get the size you wanted.Another size is okay. OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
