G 2 inch carbon steel fused oil level sight glass male BSP thread professional manufacturer and seller
Price:
$ 0.8-10 pcs
MOQ:
200pcs
Delivery Time:
25 work days
Brand:
grand-mfg
Product Description
Specifications:
Service: Compatible gases and liquids.
Window: nature glass (3mm to 6mm)
Body: Nickel Plated steet,stainless steel 304 and S.S 316
Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.
Temperature: -30'C to 260 'C (500 ‘F).
Max Pressure: 12 MPa(1740Psi)
Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)
Size: 1/4" to 2"
Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.
| Item | Fused sight glass |
| Material | steel nickel plated |
| Window | Natural Glass |
| Glass Thickness | 2mm to 5 mm |
| Working Tempreature | : －40℃～200℃ |
| Temperature Assaults Date | : －40℃～180℃ |
| Working Pressure | 2.5, 4.0Mpa |
| Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. |
|

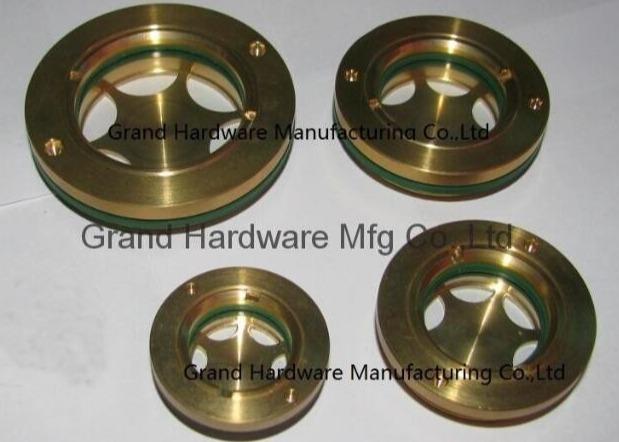

| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | brass sight gauges |
| Housing | brass tube |
| tube | quartz glass tube |
| O-Ring and flat gaskets | NBR Rubber |
| Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts | 80mm to 600mm |

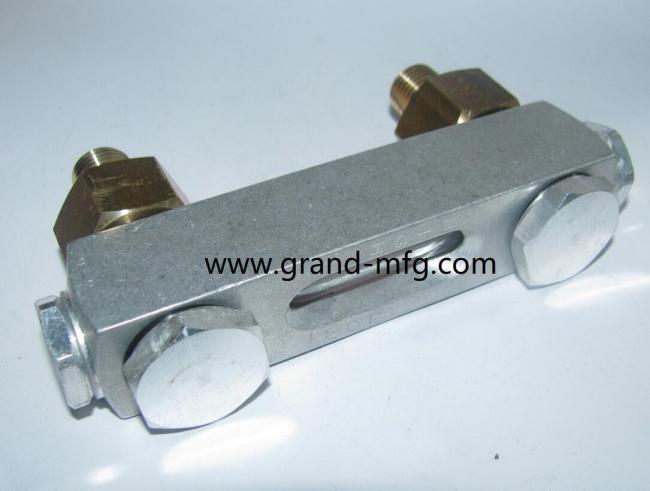

| item | Hydraulic oil level indicator |
| Housing | Aluminum alloy housing and inside thermoplastic (PC) |
| O-Ring and flat gaskets | NBR Rubber |
| Reflector | aluminum with printed white |
| Bolt | M10 Hexagon nut and washer in galvanized steel |
| Temperature resistant | : -20’C to 100 ‘C. / 0’F to 220 ‘F |
| Distance of two bolts | 50mm to 500mm |
| Usage | Thin-wall container, Radiator, Hydraulic reservoir and receivers. |
| item | brass breather vent plugs |
| material | brass or aluminum |
| Thread Type | BSP,Metric,NPT |
| finish | Natural and Nickel Plated |
| size | Any Size OEM are welcome. |
| Work Pressure | 0.005 MPa to M 0.03 Mpa |
| Tempture Range | : -30 Cent degree to 130 Cent degree. |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission. |
