Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied
Price:
$ 0.8-2 pcs
MOQ:
20pcs
Delivery Time:
45days
Brand:
GM
Product Description

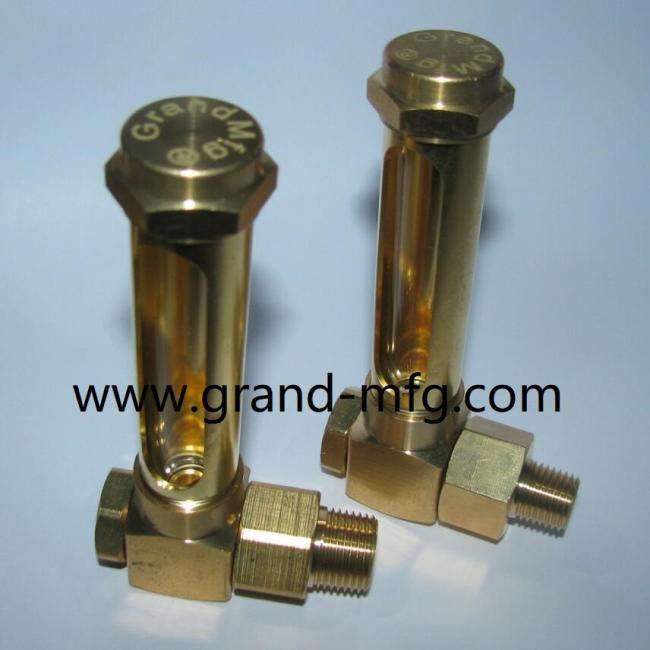

Brass Tube Oil level Indicator/Oil level Gauge with glass tube.Plastic level indicator/gauge
Housing: Brass Tube .
Tube: Real glass tube.
O-Ring and flat gaskets: NBR Rubber.
Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts: 80mm to 600mm
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission.
| item | brass sight gauges |
| Housing | brass tube |
| tube | quartz glass tube |
| O-Ring and flat gaskets | NBR Rubber |
| Thread szie | M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant | : -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts | 80mm to 600mm |
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | steel sight glasses |
| material | steel |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |

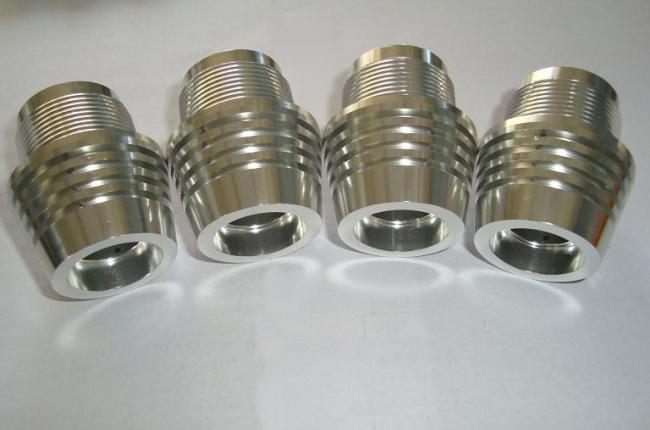

| item | aluminum machined parts |
| material | Al 6061,Alloy Alloy,Die castings Aluminum Castings. |
| finish | Natural,Sandblasted,Anodized and Oxidized Color |
| Processing | Turning,Machining,Lathing,Milling,moulded,Sand Castings and die castings |
| Dimension Tolerance: | : +/-0.02mm or +/-0.005 inch(CNC machining and lathing) : +/-0.1mm or +/-0.05 inch (Aluminum Castings) |
