China BTO-10 hot dipped gal flat wrap razor wire in panel used on fence top for sale

BTO-10 hot dipped gal flat wrap razor wire in panel used on fence top

Price Negotiable

Price: Negotiable

MOQ: 1 piece

Delivery Time: 7 days

Brand: XKh

Product Description

BTO-10 hot dipped gal flat wrap razor wire in panel used on fence top

Descriptions :

Flat warp razor barbed wire is a new type of razor barbed wire. Metal Tec press the single loop razor barbed wire into flat, or press two loops into flat then expand them across. We usually use it together with beenline razor barbed wire to build a defencing wall, or use it alone as a fence.

It is normally used in community, storehouse, mine, prison, key sites of National Defence, etc

Quick details :

Material :Hot dipped /electric galvanized iron wire or stainless steel wire as core wire ,hot dipped galvanized sheet or stainless steel sheet as blade
Blade type : BTO 10 ,15,18,22,25,28,30 & CBT 60 or 65
Coil diameter : 300mm,450mm,500mm,600mm,700mm,730mm,850mm,900mm,1050mm,1200mm (300-1200mm)
Coil clipped space : 10-35cm (as per request , 15-20cm will be in big density and high security )
Core wire thickness :1.8-2.75mm(2.5mm is the standard )
Blade thickness : 0.3-0.5mm (0.45mm is the standard )
structure shape : in roll (15m is the standard )or in sheet (2m is better considering container size )

BLADE TYPE	PANELHEIGHT	ROLL WEIGHT	ROLL LENGTH	USAGE
BTO-10	450MM	11.3KGS	18M	Recommended as wall or fence topping.
BTO-10	600MM	12KGS	18M	For use with existing fence to upgrade to high security.
BTO-10	900	14KGS	18M	For use with existing fence to upgrade to high security.

OTHER Blade type

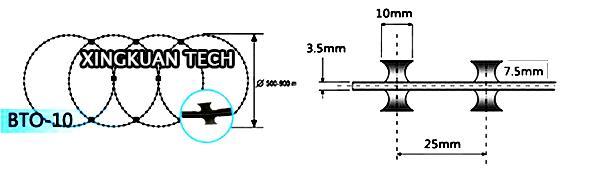

Specification	Blade thickness	Wire diameter	Blade length	Blade width	Blade spacing
BTO-10	0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12	0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18	0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22	0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28	0.5±0.05	2.5±0.1	28	15	45±1
BTO-30	0.5±0.05	2.5±0.1	30	18	45±1
CBT-60	0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65	0.6±0.05	2.5±0.1	65±2	21±1	100±2

Applications :

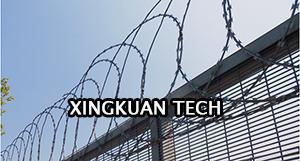

Installed against the existing smooth wire mesh fence;
Fitted to the welded mesh fence;
Fitted by overlapping the fence mesh;
Installed to the brick wall directly.

Notice :

Flat wrap razor wire normally the coil diameter is 450mm ,500mm, 900mm
Roll length : standard is 15m or 16m , for the sheet is 2mtrs
Clipped space , we will suggest you when you have special request .
Packing : roll compacted - normally 5 rolls as one bundle .1 layer packing is thick waterproof paper , 2 layers -add woven bag . 3 layers need to add pallet .
Payment term : L/C,T/T or any 3rd platform's insurance order way .
