5cm Chain Link Fabric Fencing , Galvanized Steel Wire Mesh Rolls 6cm 8cm
5cm,6cm,8cm,8.5cm ,10cm Galvanized Steel Mesh Rolls Chain Link Fence
Descriptions :
Galvanized steel chain link fence is supplied in mesh rolls. We supply various chain link wire mesh for customers, mainly galvanized chain link fence (two types: electro galvanized and hot dipped zinc plated fence), stainless steel chain link fence and PVC coated iron chain link fence. Galvanized chain link fence is the most popular and economic cost type.
Galvanized fence is chosen for its zinc protective property, economic cost and bright shine surface.

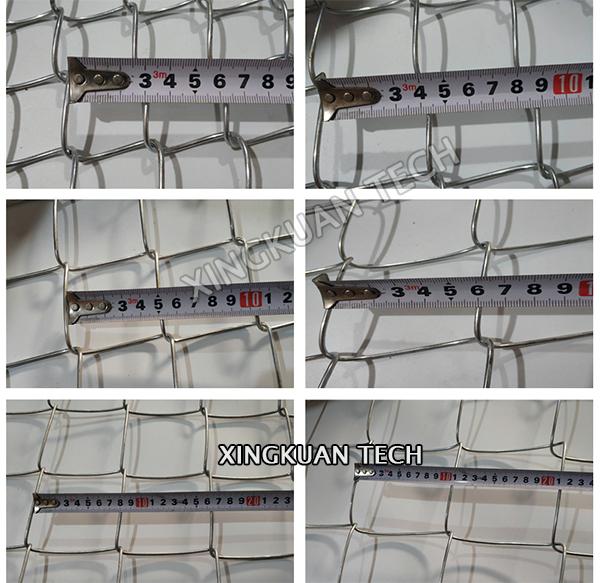

for the opening , 50mm=1/2 inch is the most popular, we can adjust the hole opening on our machine , bigger or smaller is avilable always .
Quick details :
Below is parts of chain link mesh roll size
| Mesh Opening of Chain Link Fabric | Wire Gauge (BWG) | Fence Weight (kg/m2) |
| 1/2" | 14 | 4.4 |
| 3/4" | 12 | 6.0 |
| 3/4" | 14 | 3.3 |
| 3/4" | 16 | 1.9 |
| 1" | 12 | 4.0 |
| 1" | 14 | 2.4 |
| 1" | 16 | 1.4 |
| 5/4" | 12 | 3.2 |
| Mesh Opening of Chain Link Fabric | Wire Gauge (BWG) | Fence Weight (kg/m2) |
| 5/4" | 14 | 1.92 |
| 3/2" | 10 | 4.0 |
| 3/2" | 12 | 2.7 |
| 3/2" | 14 | 1.6 |
| 2" | 8 | 4.16 |
| 2" | 10 | 3.0 |
| 2" | 11 | 2.5 |
| 2" | 12 | 2.0 |
We also supply fence panel with soulutions , include the associate parts .
Galvanized Chain Link Fence Panels work with Matching Fence Posts:
| Fence Panel Height(m) | Panel Length(m) | Wire (mm) | Mesh Opening | Post style |
| 1.03 | 2.0-3.0 | 3.50-8.00 | 50x100 | Peach post |
| 1.23 | 2.0-3.0 | 3.50-8.00 | 50x150 | Square post |
| 1.53 | 2.0-3.0 | 3.50-8.00 | 50x200 | Holland post |
| 1.73 | 2.0-3.0 | 3.50-8.00 | 75x150 | Peach post |
| 1.8 | 2.0-3.0 | 3.50-8.00 | 50x100 | Square post |
| 1.93 | 2.0-3.0 | 3.50-8.00 | 50x100 | Holland post |
| 2.03 | 2.0-3.0 | 3.50-8.00 | 50x150 | Peach post |
| 2.23 | 2.0-3.0 | 3.50-8.00 | 50x150 | Square post |
Applications :
1) As fences for playground, gardens, super highway, railway, airport, residence, etc.
2) AS fences to protect and support seawall, slope, road and bridge, reservoir and other civil engineering.
3) Link chain fence is also used in breeding of animals.
Notice :

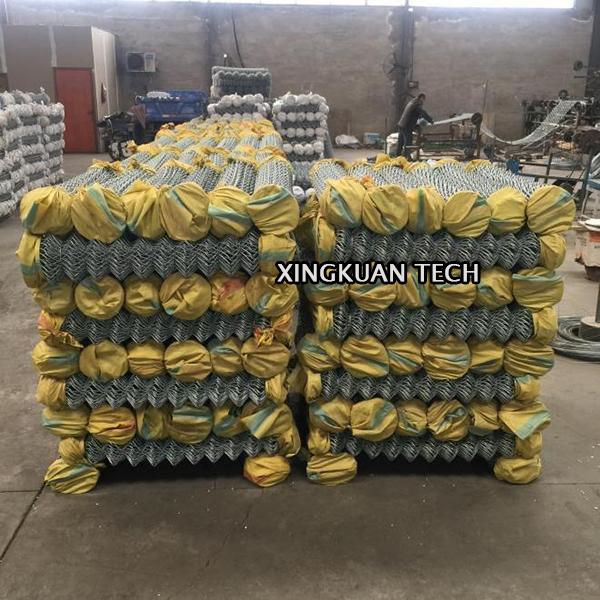

- Packing : Plastic film or woven bag wrap both ends for each roll , several rolls on pallet or bulk way or as per request ,we will offer suggestion for loading to save space
- Delivery time: very fast shipment , normally 7-10 days for 1x20 feet container .
- Installation : very flexible , you can use post , or frame , gate , we also can supply accordingly .
- Please show your detailed request , if without , just tell the usage , we would like to implement a solution to you
- If possible, please offer these : wire diameter , aperture , width , length and edge , also quantity .
