8cm Aperture Chain Link Fence Fabric , Diamond Wire Mesh Fencing 2.8mm Wire
2.8mm wire, 8cm aperture chain link wire mesh netting ,diamond wire mesh roll
Descriptions :
Chain-link wire are the fastest and most cost effective fence products on the market today.
Chain link wire has been in existence over a century. in early times ,which have been referred to as Cyclone fences, Anchor fence and link type fences. chain link wire is the most cost effective solution for perimeter security and pet containment in residential applications. In commercial and industrial applications it is primarily used for standard and high security.
Quick details :

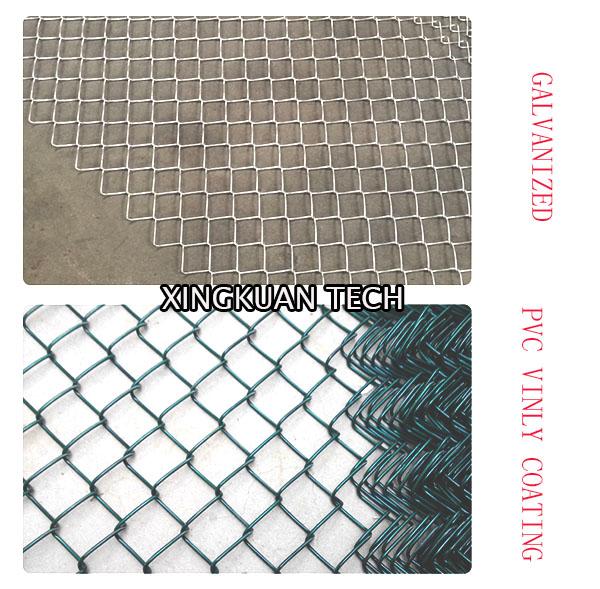

1. Galvanized Chain Link Fence
Materials: high quality galvanized wire, mild steel wire, aluminum alloy wire, iron wire.
Treatment: Electro galvanized, hot-dipped galvanized.
Advantages: Galvanized chain link fence is with long- time use and easy to install. All galvanized chain link fence accessories are hot-dipped galvanized and they are without maintenance for long time.
| Opening (mm) | 1" | 1.5" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| 25 | 40 | 50 | 57 | 60 | 64 | 67 | 75 | 100 | |
| Wire diameter | 18#-13# | 16#-18# | 18#-7# | ||||||
| 1.2-2.4mm | 1.6-4.2mm | 2.0-5.0mm | |||||||
| Length/roll | 0.50m-5.0m (can be longer) | ||||||||
| Width | 0.5m-5.0m | ||||||||
| Materials and specifications can be made as request. | |||||||||
2. Stainless Steel Chain Link Fence
Stainless steel chain link fence is the most durable chain link fence compared with galvanized chain link fence and plastic coated chain link fence.
Materials: 201, 302, 304, 304L, 316 stainless steel wire, low carbon steel wire.
Features: acid resistance, alkali resistance, high temperature resistance and weather resistance.
Specifications:
Wire diameter: 1.2-5mm.
Mesh opening: 25, 40, 55, 60, 65, 76 and 100. Special specifications can be available.
3. PVC Chain Link Fence
PVC chain link fence is woven accurately with PVC metal wire.
Materials: PVC wire, stainless steel wire, low carbon steel wire, galvanized wire, iron wire and so on.
Colors: green, white, black, brown. The colors can be chosen according to customers’ request.
Finish treatment: spray, plastic coated and dip.
| Height (m) | 0.9 | 1.2 | 1.4 | 1.8 | 2.0 | 2.4 | 2.75 | 3.0 |
| Opening (mm) | 50×x50mm, 60x60mm, 80x80mm, 100x100mm, etc. | |||||||
| Roll length | 12/15/18/21 (m) | |||||||
| Colors | Black, white, green, brown, as customers‘ request. |
|||||||
Applications :
1.Commercial grounds (Corporation, hotel, supermarket);
2. Private grounds (Courtyard, Villadom);
3.Public grounds (Park, zoo, train or bus station, lawn);
4.Road and transit (Highway, railway or road city transit);
Notice :
- Packing : Plastic film or woven bag wrap both ends for each roll , several rolls on pallet or bulk way or as per request ,we will offer suggestion for loading to save space
- Delivery time: very fast shipment , normally 7-10 days for 1x20 feet container .
- Installation : very flexible , you can use post , or frame , gate , we also can supply accordingly .
- Please show your detailed request , if without , just tell the usage , we would like to implement a solution to you

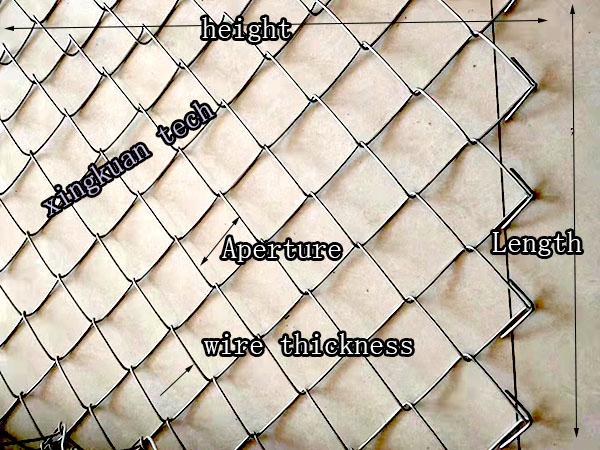

- If possible, please offer these : wire diameter , aperture , width , length and edge , also quantity .
