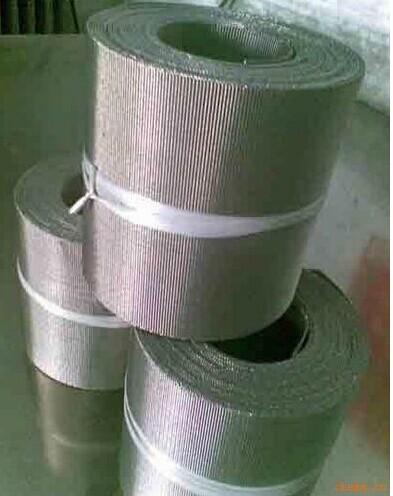

Filter belts for continuous screen changers

In addition to extruder screen filter, we also manufacturewire cloth filters belts for continuous screen changersfrom high tensile stainless steel wire, which are suitable for screening foreign particles out of molten plastic.

Stainless steel continuous filter belt specification:
Material: Stainless Steel 302,304,316,316L.

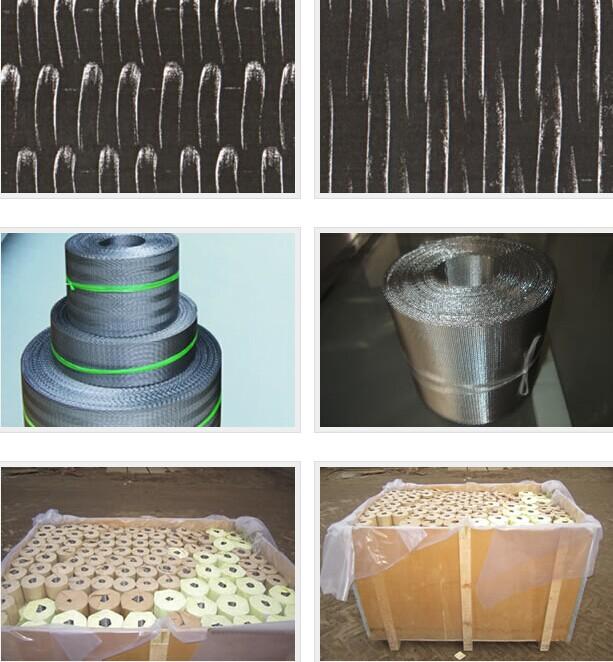

Woven in reverse dutch weave pattern.

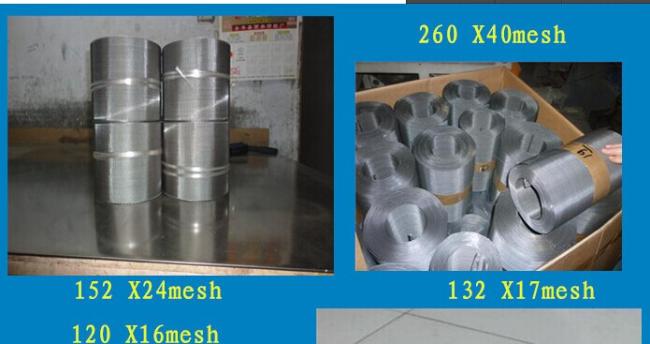

Size: 48×10 mesh, 72×15 mesh, 132×14 mesh, 132×17 mesh, 152×24 mesh, 152×30 mesh, 260×40 mesh, 250×40 mesh, 400×120 mesh.
Width 100mm to 1200mm.
Length 10m to 30m.
Other size available

Features:
Automatic belt filter mesh has the resistance to acid, soda, corrosion, high temperature etc;
The filter band is produced by reverse dutch weave, so it has greater strength to support for greater loads in filtration;
With reverse dutch weave, the ribbon filter belt has precision mesh size to effect good filtration in extrusion;

Application:
This type of filter screen are widely used for plastic extrusion and melt filtration in plastic industry for PP, PS, PVC, PET, PE, ABS, PMMA in belt style continuous screen changers.
