Black Vinyl Chicken Wire Mesh Panels for construction
-
Black Vinyl Chicken Wire Mesh Panels for Cages , electric galvanized wire netting
Description:

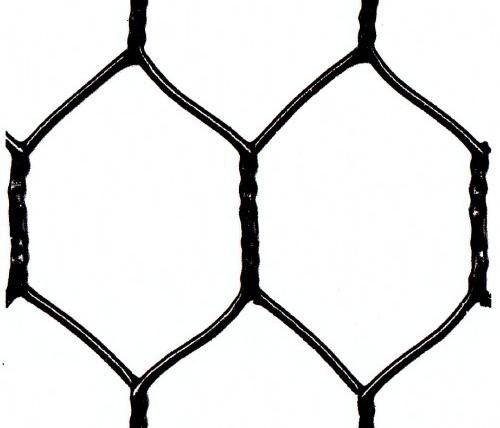

black vinyl coated 1-1/2" hex apron fenceThe vinyl has UV inhibitors to retard degradation from sunlight. This not only adds years of life to the apron fence, but also makes it a very attractive black vinyl coated fence.
Although initially more expensive than the GBW apron fence, you will save on the hassle and costs of labor by not having to replace the vinyl coated fence.
This material has the same identical features as the GBW apron fence (the apron prevents animals from burrowing out, easy to install with no trenching required) with the added feature of long life and attractive appearance.
![]()
![]()
|
Mesh |
Min. Gal.v.G/() |
Width |
Wire Gauge(Diameter) BWG |
||
|
Inch |
mm |
Tolerance (mm) |
SQ.M |
|
|
|
3/8" |
10mm |
±1.0 |
0.7mm-145 |
2'-1M |
27,26,25,24,23 |
|
1/2" |
13mm |
±1.5 |
0.7mm-95 |
2'-2M |
25,24,23,22,21 |
|
5/8" |
16mm |
±2.0 |
0.7mm-70 |
2'-2M |
27,26,25,24,23,22 |
|
3/4" |
20mm |
±3.0 |
0.7mm-55 |
2'-2M |
25,24,23,22,21,20,19 |
|
1" |
25mm |
±3.0 |
0.9m-55 |
1'-2M |
25,24,23,22,21,20,19,18 |
|
1-1/4" |
31mm |
±4.0 |
0.9mm-40 |
1'-2M |
23,22,21,20,19,18 |
|
1-1/2" |
40mm |
±5.0 |
1.0mm-45 |
1'-2M |
23,22,21,20,19,18 |
|
2" |
50mm |
±6.0 |
1.2mm-40 |
1'-2M |
23,22,21,20,19,18 |
|
2-1/2" |
65mm |
±7.0 |
1.0mm-30 |
1'-2M |
21,20,19,18 |
|
3" |
75mm |
±8.0 |
1.4mm-30 |
2'-2M |
20,19,18,17 |
|
4" |
100mm |
±8.0 |
1.6mm-30 |
2'-2M |
19,18,17,16 |
|
Note:1.)The above tolerance comply with standard EN 10223-2:1997. |
|||||
Other size can be customerized according to client's real need !
Packing & Loading :
A>Waterproof paper only + Label /no label
B>Shrink film only + label /no label
C>waterprrof paper inside + shirnk film outside + label
D> A/B/C+ Good Pallet
Application:
Galvanized hexagonal wire mesh
- Rabbit fencing
- Chicken runs & Poultry fences
- Garden fences
- Deer fencing / Deer Control (1.8m high version available)
- Tree Guards
We are one of professional manufacturer and exporter for wire and wire mesh for 30 years . Our products has been export to UK ,poland ,Spain , Dubai , canada , Austrialia , Singapore , Philipines , Indonesia , Kenya amd other zone .
Wish to receive your detailed inquiry within 24 hours we will give you our professional and best reply .
