700mm Diameter 5 Clips BTO-30 stainless steel cross type Concertina Razor Barbed Wire
Descripition of razor barbed wire
Material: High carbon steel, stainless steel
Kinds of razor wire: 1) Single coil razor wire 2) Cross coil razor wire 3) Straight line razor wire 4) Razor wire flat wrap coils 5) Razor wire fencing
Specifications:
| Razor blade type and specification | |||||
|
Reference Number |
Thickness (mm) |
Wire Dia (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb spacing (mm) |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-25 | 0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±1 | 32±1 | 100±1 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±1 | 21±1 | 100±1 |
| Barbed Tape Wire Specification | ||||
| Outside Diameter | No.of Loops | Standard Length per Coil | Type | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Singlw coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm |
56 |
12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 9600mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 4500mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 9000mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |

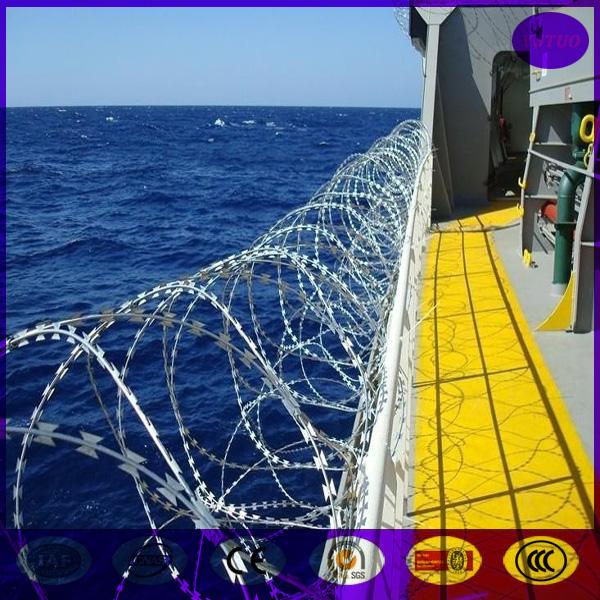

Usage of razor barbed wire : on ship , fence as barrier
Please contact us - Ms Alisa Zhou

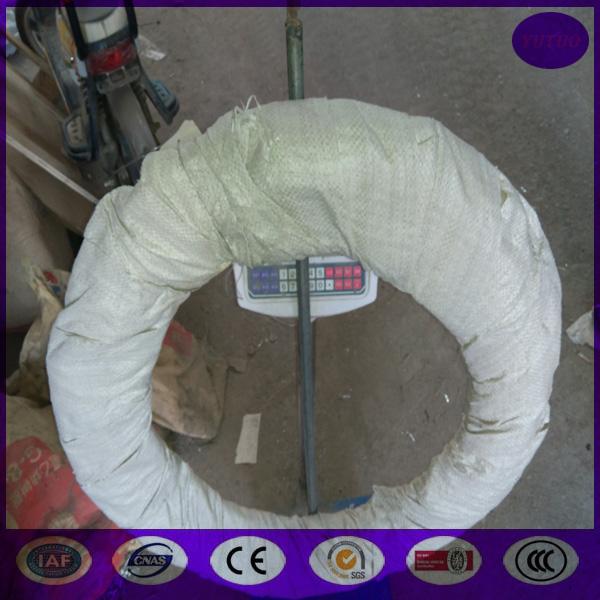

Alisa zhou - sample preparing for our client :
Alisa Zhou -charge loading and export matters for Saudi Arab :
Alisa Zhou
Client 's goods is our goods , we always care goods loading and safety to our client 's hands .
E-mail :alisawiremesh@hotmail.com
Mobile : +86 18730291422
Skype :alisazhouwiremesh
