razor wire--Electric Razor Barbed Wire--galvanized--BTO-12, BTO-15, BTO-22, BTO-30,
Price:
Price based on quantity
MOQ:
1 piece
Delivery Time:
7 days
Brand:
XKh
Product Description

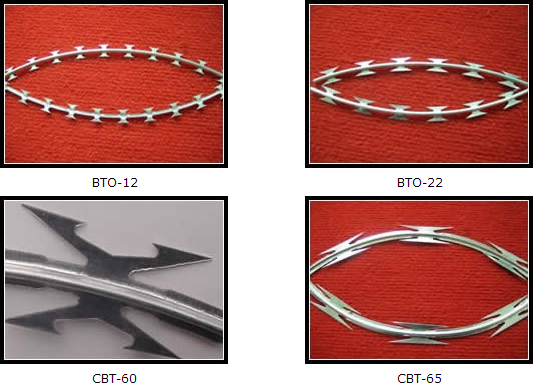

| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
| BTO-10 |  |
0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 |  |
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 |  |
0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 |  |
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 |  |
0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 |  |
0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 |  |
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 |  |
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Barbed Tape Wire Specification | ||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13M | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14M | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15M | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11M (3 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16M (5 CLIPS) | BTO-10.12.18.22.28.30 | Cross type |
Barbed Tape Concertina (CBT); Barbed Tape Obstacle (BTO).
Note: Standard products styles are shown in the tables above, special specifications are available on request.
Material: hot galvanized steel sheet and wire, stainless steel sheet and wire: AISI430 and AISI304.
