11x11 mesh gray powder coated ss304 stainless steel window screen
11x11 mesh gray powder coated ss304 stainless steel window screen
Specifications:
1.High strong tensile
2.Various of color to select (black as standard)
3.Cut pieces for your size wanted
Stainless Steel window Screen, also known as security screen, its characters of esthetic beauty and fire-and-kniife proof is making security mesh to replace the traditional iron grating for preventing burglary. In addition, not only keep thiefs out from houses, security screens can also be used as insect screens to seperate mosquitos.
1) Material: stainless steel 304, ss316, ss316L mesh, carbon steel mesh
2) Mesh: 10x10mesh.11x11mesh, 12x12 mesh, etc.
3) Wire diameter: 0.80mm, 0.90mm, 1.0mm, etc.
4) Size: 750x1500/2000/2400mm, 900x1500/2000/2400m, 1200x1500/2000/2400mm, etc.
5)Main specifications of stainless steel security window screen:
|
Item |
Material |
Mesh x wire diameter |
|
stainless steel window screen |
30 |
10x1.0mm |
|
11x0.9mm |
||
|
11x0.8mm |
||
|
11x0.78mm |
||
|
11x0.75mm |
||
|
12x0.7mm |
||
|
14x0.6mm |
||
|
14x0.58mm |
||
|
14x0.55mm |
||
|
14x0.5mm |
||
|
16x0.45mm |
||
|
16x0.4mm |
||
|
316 |
11x0.8mm |
|
|
316L |
11x0.8mm |
6) Characteristics of Stainless Steel Security Window Screen:
Anti theft, bulletproof, anticorrosion, goodpermeation,
high impact resistance, high fire resistance, easy washing, long life.

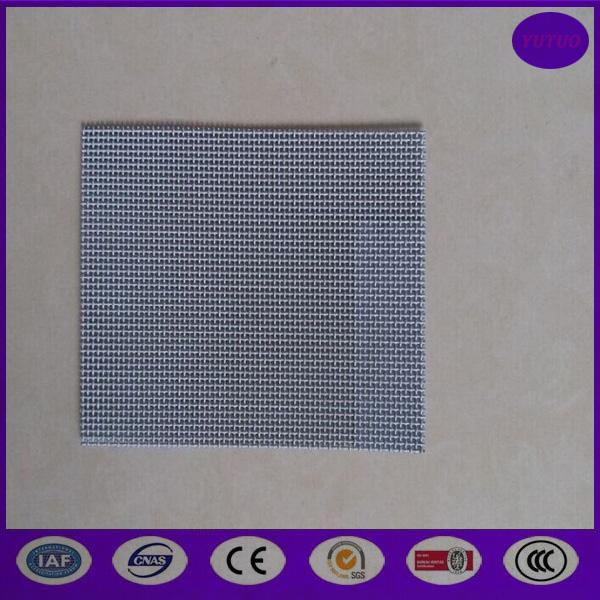

7) Pictures show of Stainless Steel Security Window Screen:
| Material | Mesh per inch | Wire Dia (mm) | Wire Dia (inch) | Open Area |
| AISI 316 or 304 | 10 x 10 | 0.9mm | 0.035" | 41.7 |
| AISI 316 or 304 | 10 x 10 | 1.2mm | 0.028" | 27.8 |
| AISI 316 or 304 | 10 x 10 | 0.8mm | 0.032" | 46.9 |
| AISI 316 or 304 | 10 x 10 | 1.15mm | 0.045" | 29.9 |
| AISI 316 or 304 | 11 x 11 | 0.8mm | 0.032" | 42.5 |
| AISI 316 or 304 | 11 x 11 | 0.7mm | 0.027" | 48.3 |
| AISI 316 or 304 | 12 x 12 | 0.7mm | 0.027" | 44.8 |
| AISI 316 or 304 | 12 x 12 | 0.58mm | 0.023" | 52.8 |
| Special mesh can be made according to customers requirement | ||||
The Most Popular Size(the bold word above) is as follows for reference
Raw Material: SS316 Grade
Wire Dia.: 0.8mm / 1060 Mpa
Mesh:11x11mesh,Black powder coated
Opening area: 42.50%
Thickness: 0.80mm +/- 0.01mm
Meet Australia,America standard
Characteristics:
1. Mesh flat and rigid, mesh well-distributed
2. Best impact resistance
3.Electrostatic powder coating, aging resistance,corrosion prevention
4. Anti fire, safety and burglary resistant
a lowest freight cost for customers' reference.
2. The third-party inspection always gets real and true data from us and
we will send production photos to customers if there is no inspection.
3. Do our best to help customer arrange the shipment and customs clearance.
4. Installation, maintenance and repair instructions with full information.
5. 3-8 years warranty depends to different products.
6. Accept Changing or Refunding if the products cannot be installed rightly.
Shanghai hardware Fair :
Please kindly show your idea about your purcahsing , we are always try best to suggest for our clients and offer best price with good after-sale service .
1.Meterial: stainless steel or mn steel or carbon steel
2.Size:Width*Length
3.Wire Diameter
4.Quality
5.Color
