16 Mesh Copper .011" Wire Diameter Meets ASTM E2016-15 for RF shielding cage from China best supplier

Price Negotiable

Price: Price based on quantity

MOQ: 1 piece

Delivery Time: 7 days after confirm order

Brand: XKh

Product Description

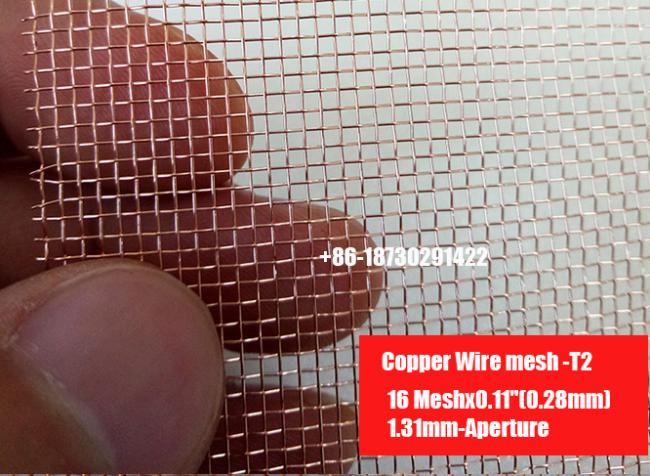

16 Mesh Copper .011" Wire Diameter Meets ASTM E2016-15 for RF shielding cage

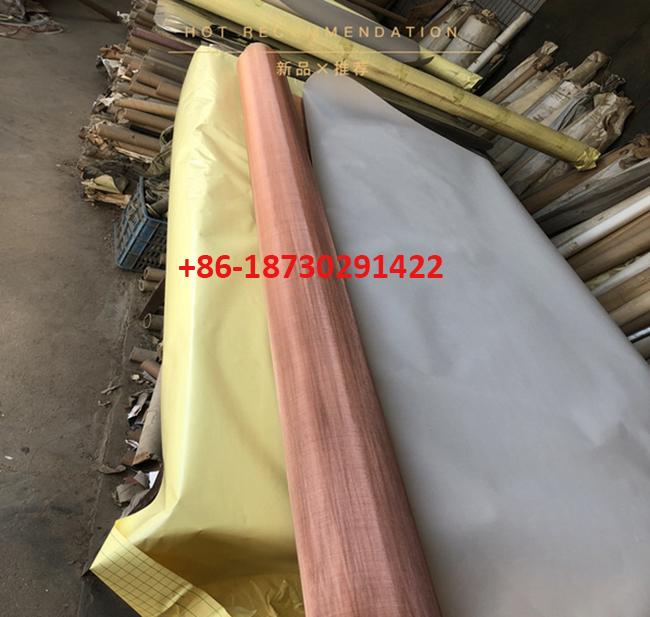

1.Introduction of 16 Mesh Copper .011" Wire Diameter in Roll

copper wire mesh is most pure and also best choice for shielding purpose than Brass Wire Mesh & Bronze Wire Mesh

Why ? Material T2 : copper content upto 99.9%

Cu	O	As	Sn	Zn	Pb	P	Fe	Sb	Bi
≥99.95%	≤0.002%	≤0.002%	≤0.002%	≤0.005%	≤0.005%	≤0.002%	≤0.004%	≤0.002%	≤0.002%

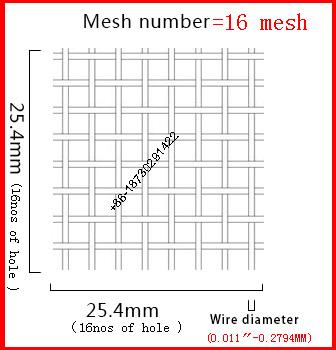

16 mesh 0.011"(0.2794+-0.02mm) -Technical Datas -

Item	U.S.	Metric
MESH SIZE	16 per in	16 per 2.54 cm
WIRE DIAMETER	0.0110 in	0.2794 mm
OPENING	0.0510 in	1.2954 mm
OPENING MICRONS	1308	1308
OPENING %	67 %	67 %
OVERALL THICKNESS	0.022 in	0.5588 mm
Weave Type	PLAIN WEAVE (PL)
SURFACE -1	WITHOUT
SURFACE -2	TRNSPARENT SPARYING LIKE CAR
BY HIGHUI /ALISA 008618730291422

Other SPecification of Copper Wire Mesh : -WE HAVE LARGE STOCK FOR WHOLE SIZE


Mesh	Wire Diameter	Width of Opening	Weave Type
Mesh	(inch)	(inch)	Weave Type
	(inch)	(inch)
6	0.063	0.104	PLAIN
6	0.047	0.120	PLAIN
6	0.041	0.126	PLAIN
6	0.035	0.132	PLAIN
6	0.032	0.135	PLAIN
6	0.028	0.139	PLAIN
6	0.020	0.147	PLAIN
7	0.041	0.102	PLAIN
8	0.047	0.078	PLAIN
8	0.041	0.084	PLAIN
8	0.032	0.093	PLAIN
8	0.028	0.097	PLAIN
8	0.025	0.100	PLAIN
8	0.017	0.108	PLAIN

10	0.035	0.065	PLAIN
10	0.032	0.068	PLAIN
10	0.025	0.075	PLAIN
10	0.020	0.080	PLAIN

10	0.018	0.082	PLAIN
10	0.017	0.083	PLAIN
12	0.032	0.0513	PLAIN
12	0.028	0.0553	PLAIN
12	0.023	0.0603	PLAIN
12	0.020	0.0633	PLAIN
12	0.018	0.0653	PLAIN
14	0.025	0.0464	PLAIN
14	0.023	0.0484	PLAIN
14	0.020	0.0514	PLAIN
14	0.017	0.0544	PLAIN
14	0.010	0.0619	PLAIN
16	0.028	0.0345	PLAIN
16	0.025	0.0375	PLAIN
16	0.023	0.0395	PLAIN
16	0.020	0.0425	PLAIN
16	0.018	0.0445	PLAIN
16	0.016	0.0465	PLAIN
16	0.015	0.0475	PLAIN
16	0.013	0.0495	PLAIN
16	0.011	0.0515	PLAIN
18	0.023	0.0326	PLAIN
18	0.020	0.0356	PLAIN
18	0.018	0.0376	PLAIN
18	0.017	0.0386	PLAIN
18	0.015	0.0406	PLAIN
18	0.011	0.0446	PLAIN
18	0.010	0.0456	PLAIN
20	0.020	0.0300	PLAIN
20	0.018	0.0320	PLAIN
20	0.016	0.0340	PLAIN
20	0.014	0.0360	PLAIN
20	0.013	0.0370	PLAIN
20	0.010	0.0400	PLAIN
22	0.015	0.0305	PLAIN
24	0.018	0.0237	PLAIN
24	0.014	0.0277	PLAIN
24	0.0075	0.0342	PLAIN
30	0.013	0.0203	PLAIN
30	0.012	0.0213	PLAIN

30	0.011	0.0223	PLAIN
30	0.010	0.0233	PLAIN
35	0.010	0.0186	PLAIN
40	0.010	0.0150	PLAIN
40	0.0085	0.0165	PLAIN
40	0.0075	0.0175	PLAIN
50	0.009	0.011	PLAIN
50	0.008	0.012	PLAIN
50	0.0075	0.013	PLAIN
60	0.0075	0.0092	PLAIN
60	0.0065	0.0102	PLAIN
70	0.0065	0.0078	PLAIN
80	0.0055	0.0070	PLAIN
80	0.005	0.0075	PLAIN
90	0.005	0.0061	PLAIN
100	0.0012	0.0088	PLAIN
100	0.0022	0.007	PLAIN
100	0.0045	0.0055	PLAIN
100	0.0040	0.0060	PLAIN
100	0.0035	0.0065	PLAIN
145	0.0022	0.004	PLAIN
150	0.0026	0.0074	PLAIN
200	0.0021	0.0029	PLAIN

2.Feature of 16 Mesh Copper .011" Wire Diameter in Roll will decide the advantage & Usage :

Meets ASTM E2016-15
no magnetism,
poor ductility,
wear resistance,
fast heat transfer,
good conductivity,
sound insulation,
filtered electron beam

3.USAGE of 16 Mesh Copper .011" Wire Diameter in Roll

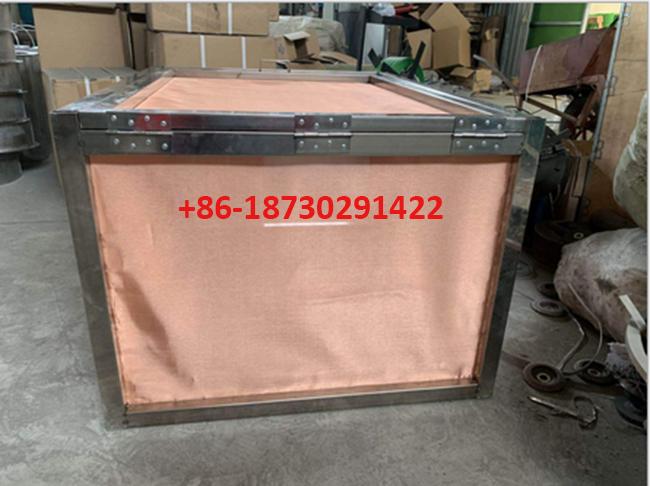

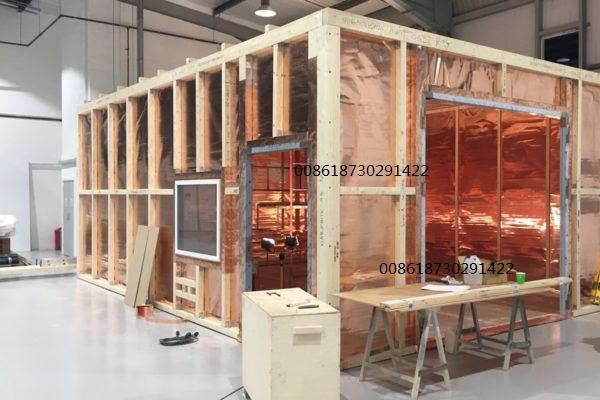

This item is very popular for RFI shielding applications( faraday cage )

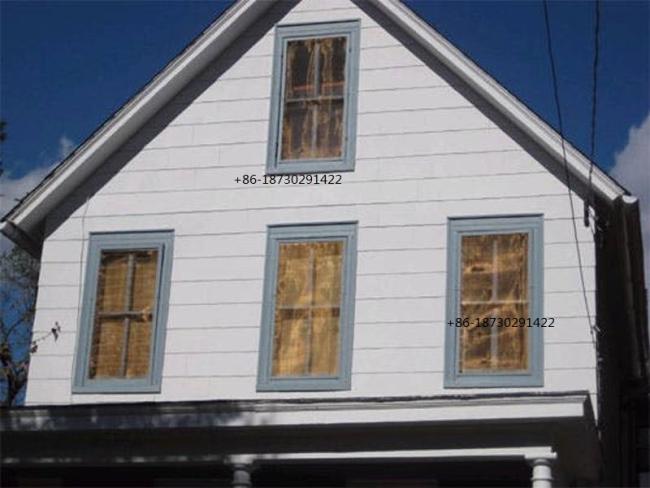

It is installed behind sheet rock
This material is also used for window screen and Faraday cages

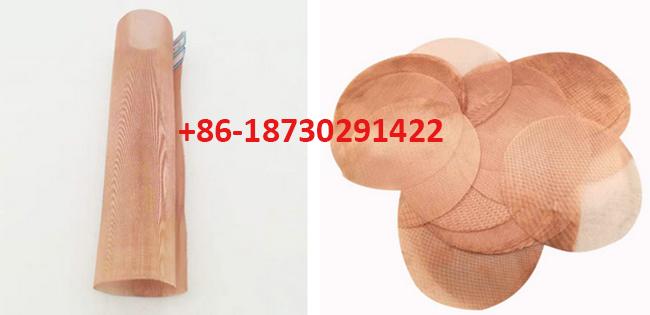

Used in filter as media

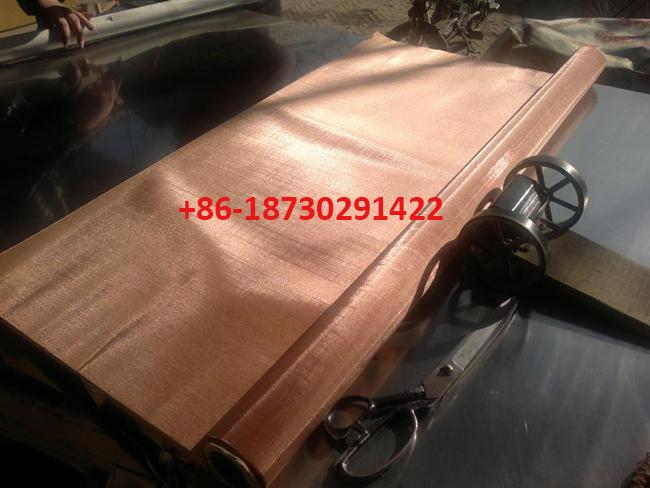

elctronic -Since the mesh is flimsy, it can be cut with scissors

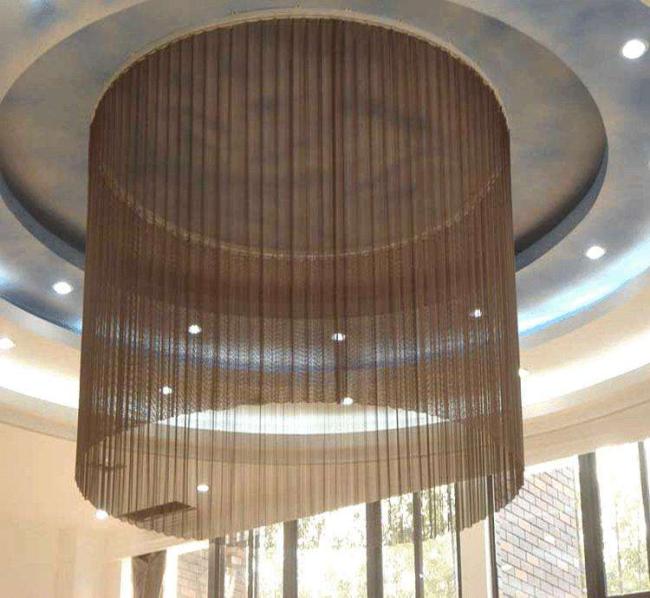

Decorative

Shield cage - porcelain clay, glass, wall sound insulation, glass layer shielding electromagnetic shielding, signal shielding, electronic display screen, TV station, radio communication
