China ready stock 50 x50 mm euro fence mesh Pvc coating made in china

         China ready stock 50 x50 mm euro fence mesh Pvc coating made in china

1.INTRODUCTION :

Material : Q195Low carbon steel wire

Wire Diameter: 2.0mm-3.5mm(after coating )

Wire surface treatment : Galvanized core wire + PVC(plastic powder coating )

Hole Aperture :

                           with V stample /wave shape : 50*50,50*100,50*75,75*100mm,100*100mm(or customerized )

                           Without V shape /wave shape : 15x15mm,30mmx30mm, 60mmx60mm , 50x110mm ( A large stock for Green & Yellow color )

Width of roll : 60cm , 90cm , 100cm , 150cm , 180cm , 200cm

.Height : 10m,18m,25m, 30m(or customerized )

Distance Between The Two Fence Posts: 3m

 Distance Between The Two Inclined Posts: 30m

 Plastic Color: Dark Green/Grass Green/White /Yellow /Red

Wire Diameter : (After PVC coating )

Traditional Holland Wire Mesh-With V shaped (wave ) - :

Euro fence (Light)— Economic type

Mesh Size: 100 x 75mm

Wire Diameter: 1.7/2.1mm

For private residence,parks and garden use.

Eurofence (Strong)— Durable type

Mesh Size: 100 x 50mm

Wire Diameter: 2.0/2.5mm

For industrial and sport areas,garden use.

Euro fence Standard

Mesh Size: 100 x 50mm

Wire Diameter: 1.7/2.1mm

To be the traditional and elegant fence which particularly suitable for private residences and gardens.

Euro fence Plus

Mesh Size: 100 x 50mm

Wire Diameter: 1.7/2.1mm

To be strengthening, for private residences and garden use.

Euro fence Promo

Mesh Size: 100 x 100mm

Wire Diameter: 1.6/2.0mm

To be most economic fence for private

redifence and garden.

Euro fence Forti

Mesh Size: 50 x 50mm

Wire Diameter: 2.0/2.5mm

2.5/3.0mm

Standing out on top seivage, without using the defensive barbs. To be most strong and secured

fence for industry, sport areas

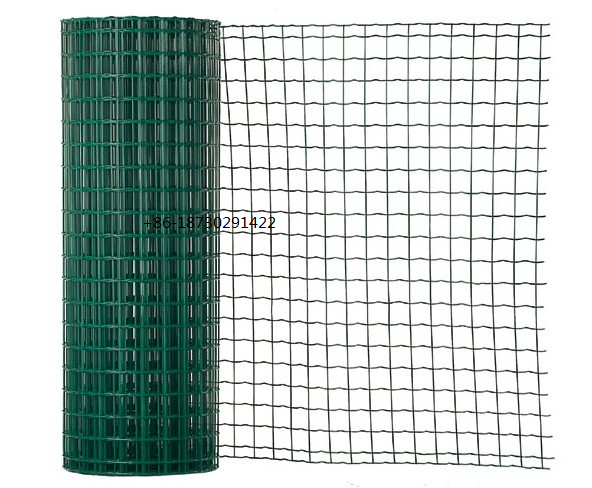

-Holland Wire Mesh Without V shaped (wave ) -: (also as welded wire mesh )

(for low cost and also strengthen , adopt thicker wire and hard plastic costing (80% core wire thick +20% plastic coating  )

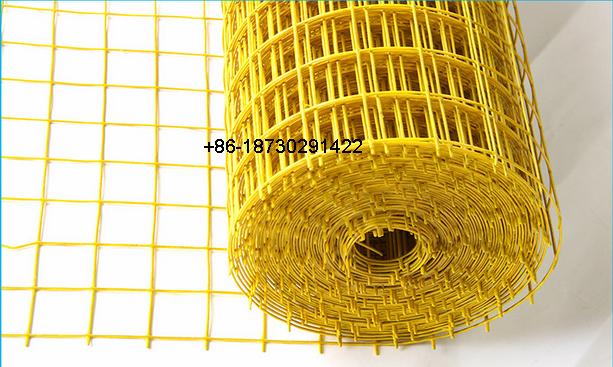

we have large stock for Green color & Yellow color

 Small Hole : 1.5cmx1.5cm (1/2 inchx1/2 inch ) 3 cm x 3cm , 5x5 cm , 6x6cm .

2. Prepare installation :

When we install it as fence , we will choose the post -peach type and round type post , but the most suitable type is swallow tail post :

Post Color : Green ,Yellow , Red ... etc

                          OD : 48MM is standard ( other will be customerized )

 ( 0.55mm wall thick)                   (0.8mm wall thick )           ( 1.0mm or 1.2mm wall Thick)

                                    Galvanized tube + PVC coatig

          Swallow tail post : Two type -embedded post and post with base plate

                              001 First step : prepare associate parts : clips , anti -rain cap & pliers :

                             002 Second step : Fixed two types of post in different of ground condition

Embedded post -

(dig hole , put post and fill full of soil , if want more strong , then we can for long-term use,   it will be better if pour with concrete or lime. normally it is 30cm deepth , but if above 1.8m - need to bear more pressure , we suggest 50cm  embedded deepth ,)

Post with base plate -

Inclined Post -( every 30meter )

One or double

                          003 Third step : FixHolland /welded Mesh

3. Application :

    used widely in industry, agriculture, building, transportation, mine, field, lawn, cultivation etc professions'guard  and decoration

   WELCOME YOUR VALUED INQUIRY :

   Mobile /whatsapp/wechat :008618730291422

   E-mail : alisawiremesh@hotmail.com

   Person : Alisa Zhou

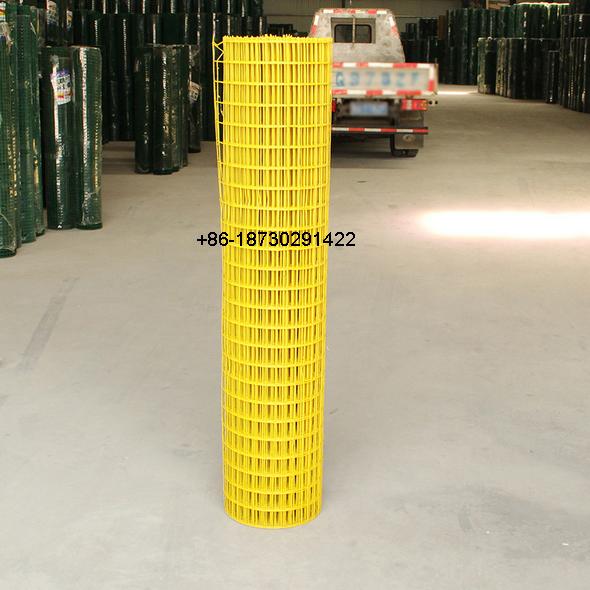

   We Have larges stock for green and yellow color in 6x6cm in 1m,1.2m,1.5m,1.8m,2m

   And also Your customerized specification is our pleasure also .
