China ready stock 60x60 mm euro fence mesh Pvc coating made in china

         China ready stock 60 x60 mm euro fence mesh Pvc coating made in china

1.INTRODUCTION :

Material : Q195Low carbon steel wire

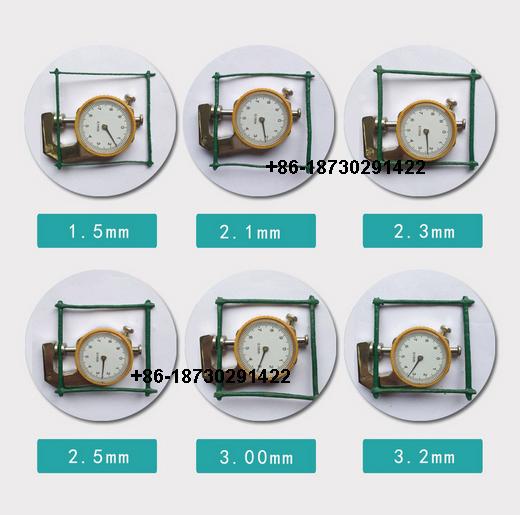

Wire Diameter: 2.0mm,2.3mm ,2.5mm, 2.8mm , 3mm ,3.2mm,-3.5mm(after coating )

Wire surface treatment : Galvanized core wire + PVC(plastic powder coating )

Hole Aperture : Without V shape /wave shape : 13x13mm,30mmx30mm,50mmx50mm , 60mmx60mm , 100mmx100mm( A large stock for Green & Yellow color )                  With V shape /wave : 50x50mm,50x100mm , 75x100mm ,(others are available to be customerized )

SAMPLE : ALL CAN OFFER FREE SAMPLE FOR SMALL SIZE

Width of roll : 60cm , 90cm , 100cm , 150cm , 180cm , 200cm

.Height : 10m,18m,25m, 30m(or customerized )

Distance Between The Two Fence Posts: 3m

 Distance Between The Two Inclined Posts: 30m

 Plastic Color: Dark Green/Grass Green/White /Yellow /Red

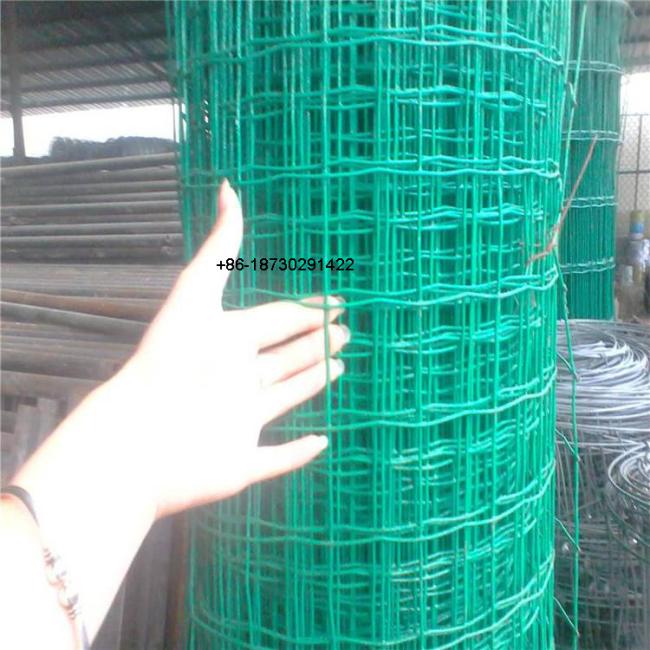

With wave/ v  - Traditional Holland /euro fence      Without  wave /V  New Holland /Euro fence

                                        Wire Diameter : (After PVC coating )

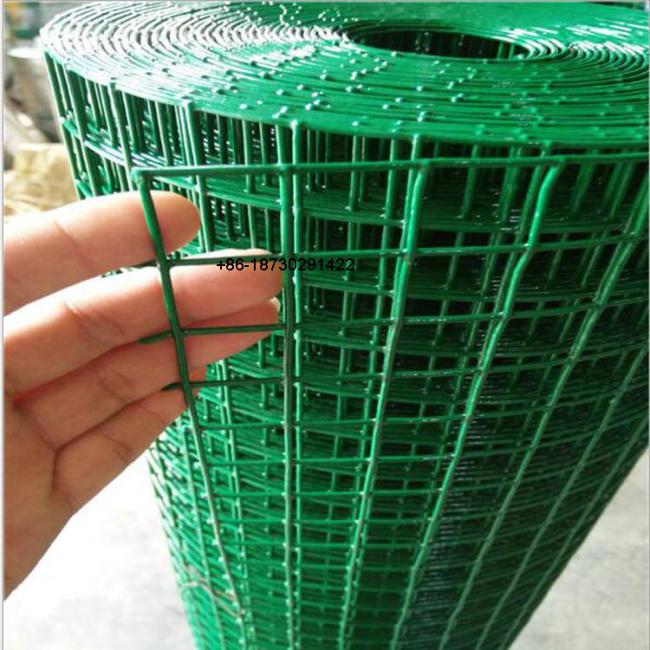

 Without V shaped (wave ) - (also as welded wire mesh )

Ready stock size : Hole : 13mmx13mm(1/2 inchx1/2 inch  ),  height 1m , 1.2m , 1.5m

                                        30mmx30mm,

                                        60mmx60mm

2. Prepare installation :

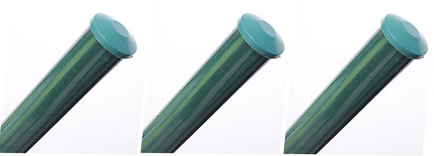

When we install it as fence , we will choose the post -peach type and round type post , but the most suitable type is swallow tail post :

Post Color : Green ,Yellow , Red ... etc

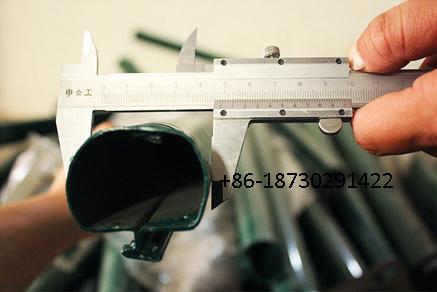

                          OD : 48MM is standard ( other will be customerized )

 ( 0.55mm wall thick)                   (0.8mm wall thick )           ( 1.0mm or 1.2mm wall Thick)

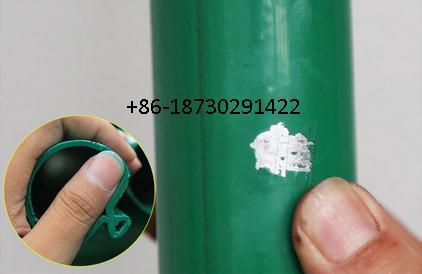

                                    Galvanized tube + PVC coatig

          Swallow tail post : Two type -embedded post and post with base plate

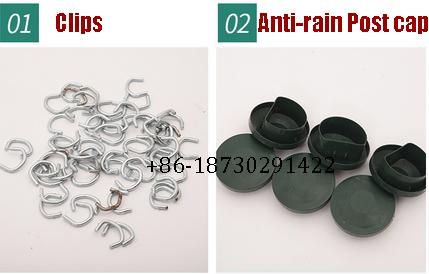

                              001 First step : prepare associate parts : clips , anti -rain cap & pliers :

                             002 Second step : Fixed two types of post in different of ground condition

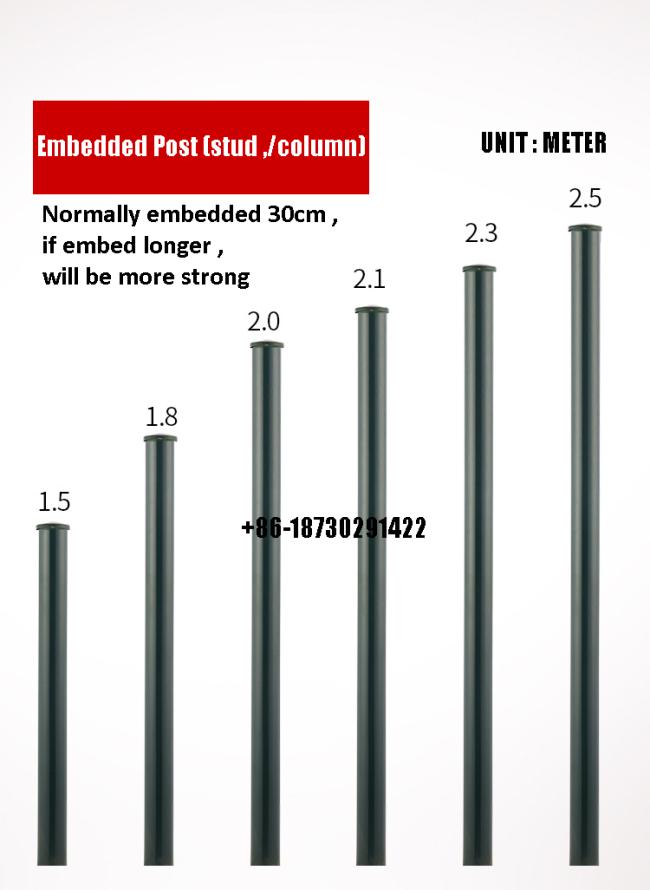

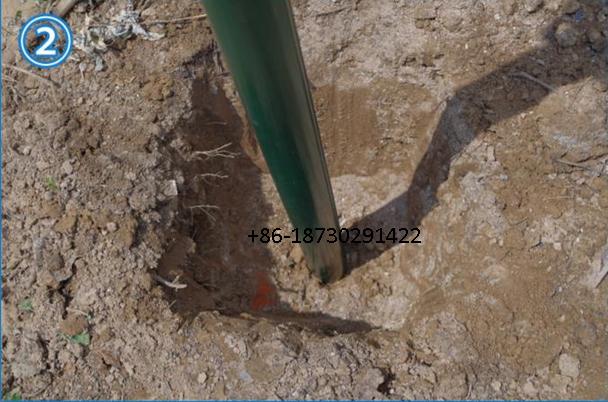

Embedded post -

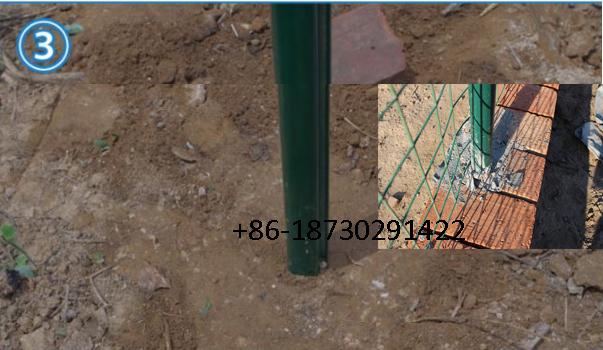

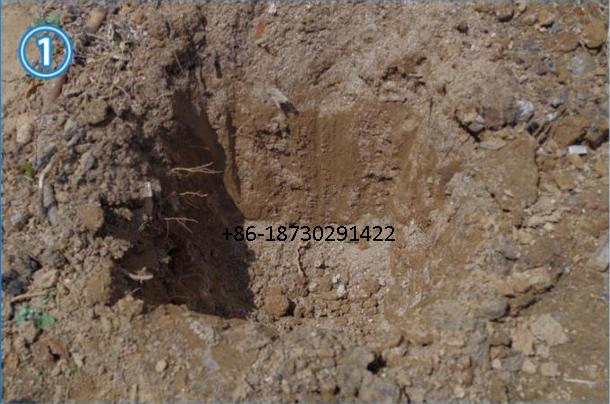

(dig hole , put post and fill full of soil , if want more strong , then we can for long-term use,   it will be better if pour with concrete or lime. normally it is 30cm deepth , but if above 1.8m - need to bear more pressure , we suggest 50cm  embedded deepth ,)

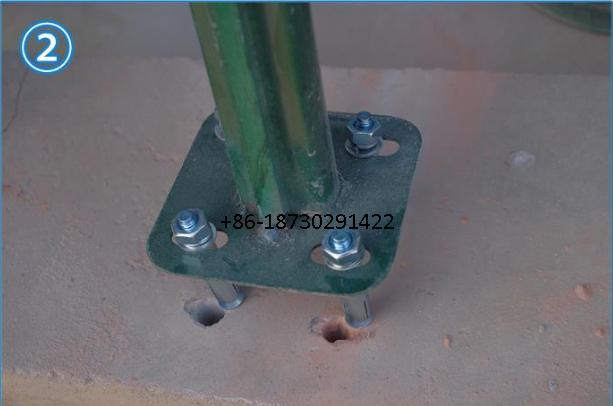

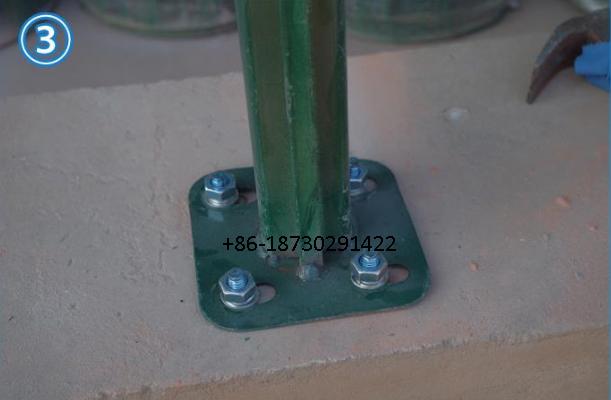

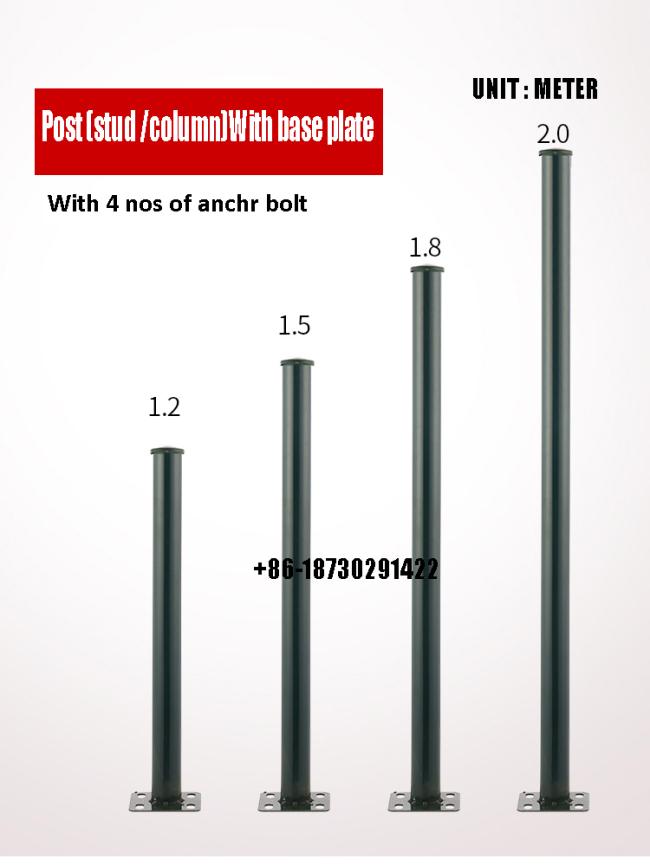

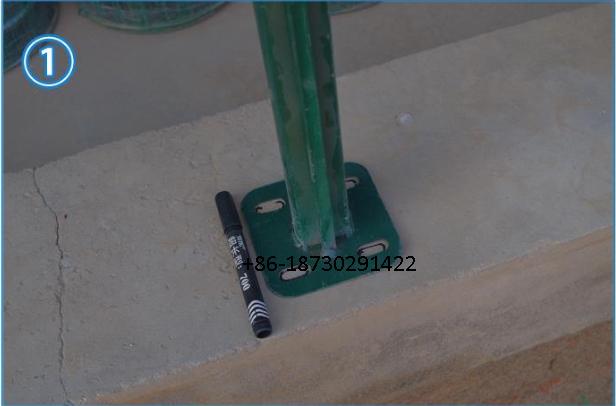

Post with base plate -

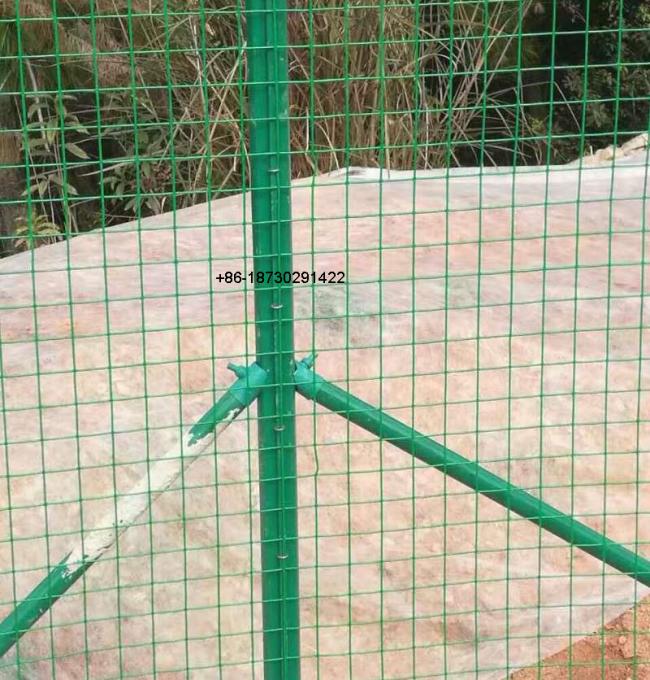

Inclined Post -( every 30meter )

One or double

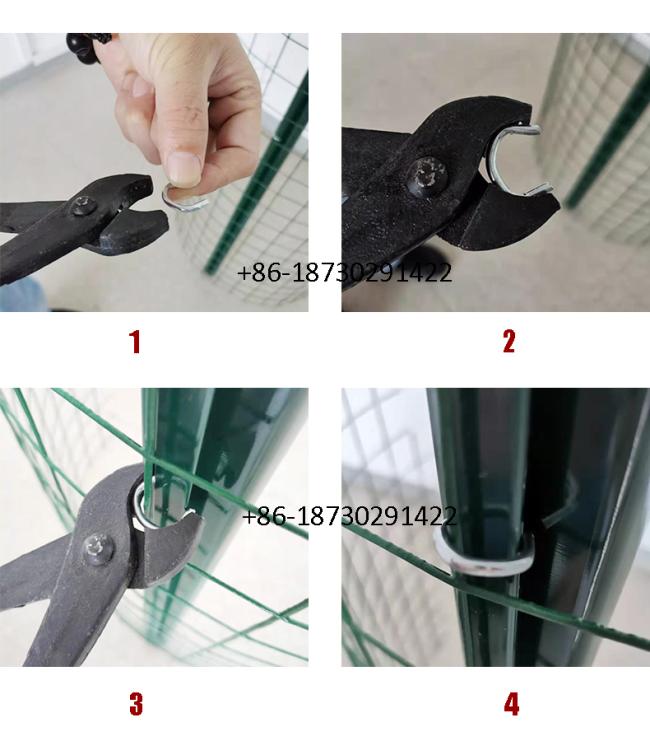

                          003 Third step : FixHolland /welded Mesh

3. Application :

    used widely in industry, agriculture, building, transportation, mine, field, lawn, cultivation etc professions'guard  and decoration

   WELCOME YOUR VALUED INQUIRY :

   Mobile /whatsapp/wechat :008618730291422

   E-mail : alisawiremesh@hotmail.com

   Person : Alisa Zhou

   We Have larges stock for green and yellow color in 6x6cm in 1m,1.2m,1.5m,1.8m,2m

   And also Your customerized specification is our pleasure also .
