Wedge wire screen sand filter nozzle Made in china
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
Negotiable
Brand:
XKh
Product Description
Wedge wire screen sand filter nozzle Made in china
Introduction :
Material: stainless steel304,316L, alloy steel.
Slot size: 0.18–0.5 mm.
Type: single wedge wire nozzle, double wedge wire nozzle.

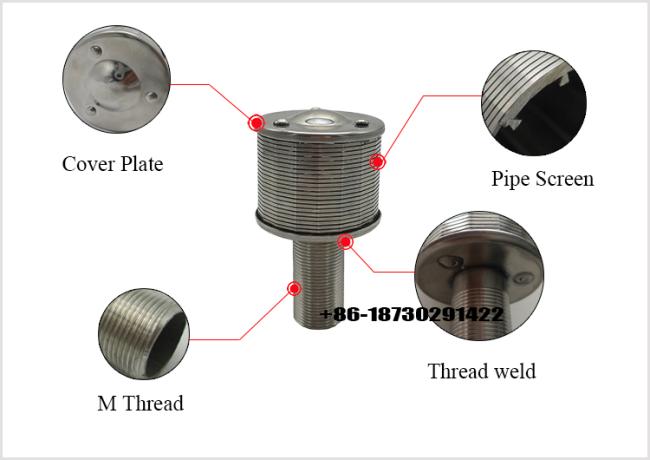

Single wedge wire nozzle
Double wedge wire nozzle

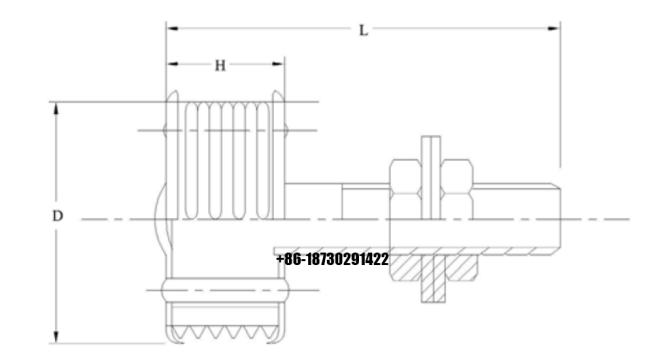

Table 1: Specification of Single Wedge Wire Nozzle
| Item | D (mm) |
H (mm) |
L (mm) |
Slot Size (mm) |
Flow Area (mm) |
| XKH-01 | 45 | 30 | 180 | 0.18-0.5 | 380-493 |
| XKH-02 | 45 | 40 | 190 | 0.18-0.5 | 551-690 |
| XKH-03 | 53 | 40 | 190 | 0.18-0.5 | 453-597 |
| XKH-04 | 53 | 50 | 200 | 0.18-0.5 | 680-710 |
| XKH-05 | 53 | 40 | 235 | 0.18-0.5 | 800-920 |
| XKH-06 | 57 | 40 | 190 | 0.18-0.5 | 560-670 |
| XKH-07 | 57 | 50 | 200 | 0.18-0.5 | 780-905 |

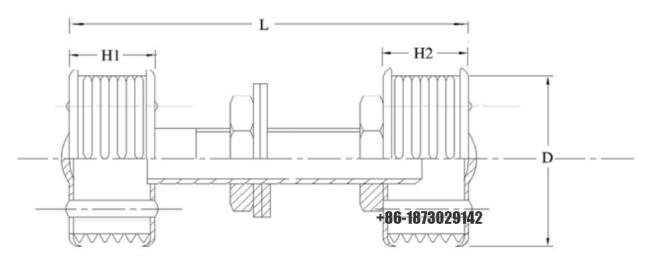

Table 2: Specification of Double Wedge Wire Nozzle
| Item | D (mm) |
L (mm) |
H1 (mm) |
H2 (mm) |
Slot Size (mm) |
Flow Area (mm) |
| XKH-01 | 45 | 110-170 | 34 | 34 | 0.18-0.5 | 380-493 |
| XKH-02 | 45 | 110-170 | 44 | 44 | 0.18-0.5 | 551-690 |
| XKH-03 | 53 | 120-180 | 34 | 34 | 0.18-0.5 | 453-597 |
| XKH-04 | 53 | 120-180 | 44 | 44 | 0.18-0.5 | 680-710 |
| XKH-05 | 57 | 120-180 | 50 | 50 | 0.18-0.5 | 800-1000 |
| XKH-06 | 60 | 120-180 | 50 | 50 | 0.18-0.5 | 950-1188 |
