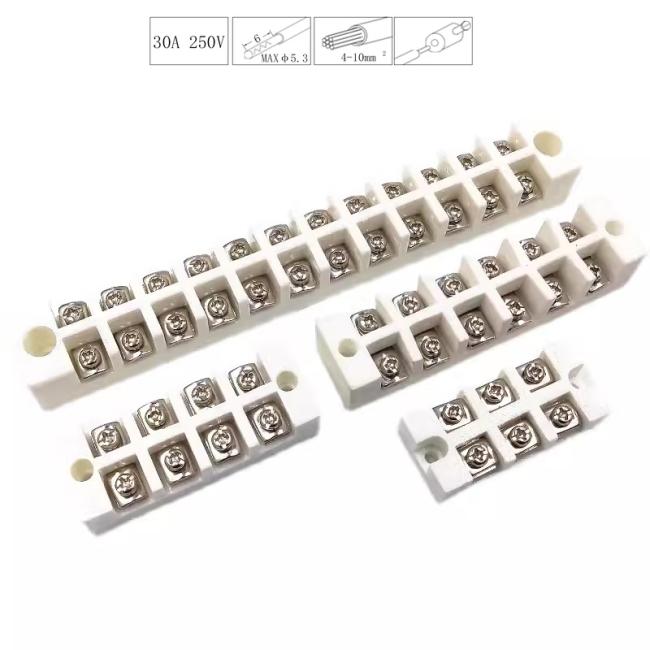

10mm / 0.394" Ceramic Barrier Screw Terminal Blocks 800℃ High Temperature Resistance 30 Amps 380 Volts

Price Negotiable
Price: Get latest price
MOQ: 50 Pieces
Delivery Time: 7-20 working days
Brand: Jetacon
Product Description
Certification: CE, Rohs
Poles: 2 to 12 poles
Color: White
Torque: 0.2Nm
Strip length: 5-6mm
Rated Voltage / Current: 380V / 30A, 500V / 20A
Insulation resistance: 5000MΩ / 1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V / 1min
Wire range: 22~12AWG
Insulation, high and low temperature resistance, and good shock resistance performance;
It will not deform due to heat during use, and the ceramic housing will not shrink or crack under significant temperature changes;
After closely integrating with the circuit, it can achieve dust-proof and waterproof effects.
