Anti UV 60W Outdoor Led Module , Street Light lens 80x150 Degree
Anti-UV 60W Outdoor Led Module with Street Light lens 80x150 Degree
Quick Details:
1. Dimension: 236x70x6.9mm
2. Beam Angle: 80x150 degree
3. Match Led: SMD 3030 , OSRAM S5 ,
4. Materials : Optical Grade PC, Aluminm
5. Accessories: Led lens, Silicone Gasket, PCB soldeirng Led, Heat Sink, waterproof Cable
6. Efficiency: >91%
Specifications:
| Product Name | Anti-UV 60W Outdoor Led Module with Street Light lens 80x150 Degree |
| Model No | SOE-SL56W-60F |
| Main parts | 56W Lens+ Silicone gasket + AL PCB mounting leds + waterproof Cable , Meanwell Led driver is available |
| Lens Material | PC Optical |
| MOQ | 1pcs |
| Lens size | 236x70x6.9mm |
| PCB Size | 233x55x1.5mm |
| Driver enclosure | plastic or aluminum case for choice |
| PCB Circuit |
8 series 8 parallel |
| LED details | 6-6.8V , 150mA , 120-130lm/w |
| Certificate | ROHS, SGS,CE |
| Quality guarantee | If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund. |
| Main market | Europe , South America , North America , Asia |

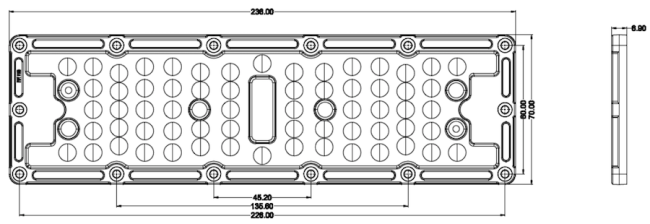

Led Street Light Lens Drawing:
80x150 degree Led Street Light Lens Distribution:
Features :
- This SKD 64W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 50W,100W and so on .
- It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- Optic lenses are available for projects that need smaller beam angles, like 80x150°, 90x120°, 90°, 60° , 30° etc.
Contact Details:
| Attn : | Alina Xiang |
| Tel : | +86 13825255182 |
| Email : | alina@sollente.com |
| Email : | alina.x@yahoo.com |
| Skype : | alinaxiang33 |
| WhatApp : | +86 13825255182 |
| QQ : | 45211682 |
Related SMD 3030 Led Street Light Modules:
| Model No. | Lens angle | Lens size(L*W*H) | PCB size(L*W*T) |
|
SOE-SL64W-30
|
30° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-60
|
60° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-90
|
90° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-90x120
|
90x120° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-80x150
|
80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
|
SOE-SL64W-S80x150
|
80x150° | 236x70x6.9mm | L220*W54*T1.5mm |
Competitive Advantage:
1). Using high quality imported 3030 LED Osram, Lumileds
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). CE ROHS testing reports available
Application:
The design of Street Light Module joins LED and IP65 water/dust proof. It takes advantage of energy saving and different angles , and adapts to different requirement of street lighting, like 60w, 120w by changing number of Led modules. This street Light Module can be used by replacing light source and bracket , Applicable for street light and solar street light, Tunnel Light, Gas station Light and so on
Delivery and Shipping:
| Trade Term | EXW , FOB , CNF |
| Payment Term | TT , PayPal , Western Union |
| Lead Time |
3-7 working days for samples order, 7-14 working days for bulk order |
|
Shipment Term |
Sea, Air, Express DHL, Fedex, UPS, TNT |
Our Seviece:
1. Your inquiry will be replied by professional sales in 8 hours.
2. OEM & ODM are welcomed, OEM brand is available.
3. Distributorship is offered for your unique design and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
5. 2 years warranty.
6. Provide you the lowest freight cost and the fastest service.
7. Professional engineers to design and develop new led street light components according to your requirements.
8. we can design the color boxes for you when you have larger quantity.
9. we can use your logo and label on products.
