Clear / Frosted SMD3535 Led Light Lens For Wall Washer Light , 3-3.6V/W
1 watts symmetric LED Lens , Led Optical Lens for Street Light Fixture
Quick Details:
1. Dimension: 16.4x11.03mm
2. Beam Angle: 80x135 degree
3. Match Led: SMD 3535, Cree XPE XTE
4. Materials : Optical Grade PMMA
5. Accessories: Led lens, PCB soldering Led
6. Efficiency: >91%
Specifications:
| Model No. | SOE-SL1W-80x135 |
| Beam angle | 80x135degree |
| Holder Size | / |
| Lens size | 16.4x11.03mm |
| Led chips | SMD3535, Cree XTE XPE leds |
| Temp | -35 to + 90 degree |
| Standards | SGS/ROHS |
| Product name | Led Peanut Lens |
| Transmittance | 93% |
| Accessory | / |
| Lens surface | Clear, Frosted |
| Application | Wall-washer light,Ceiling light ,Spot Light |

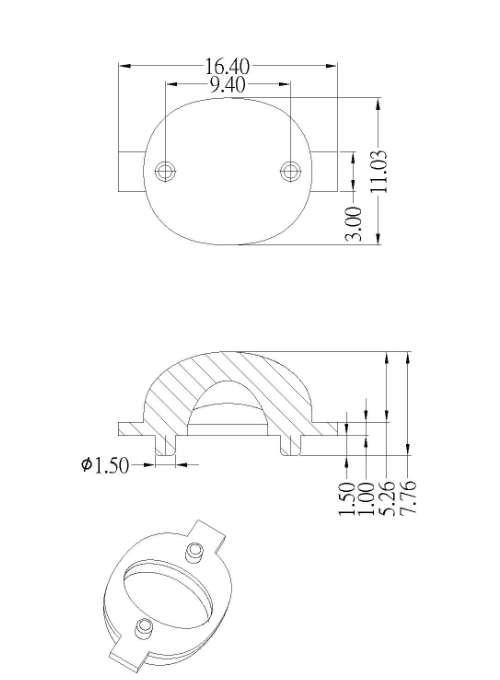

Led optical Lens Drawing:
Features :
Product combined with Geometric Surface Design,High light efficiency
Storage: Do not store in dusty place, or expose under corrosive environment
Contact: Do not touch the lens surface with bare-hand. Please use gloves to touch the lenses.
Cleaning: Clean lenses only if necessary. Use only mild soap, water and soft cloth.Do not use any commercial cleaning solvents.

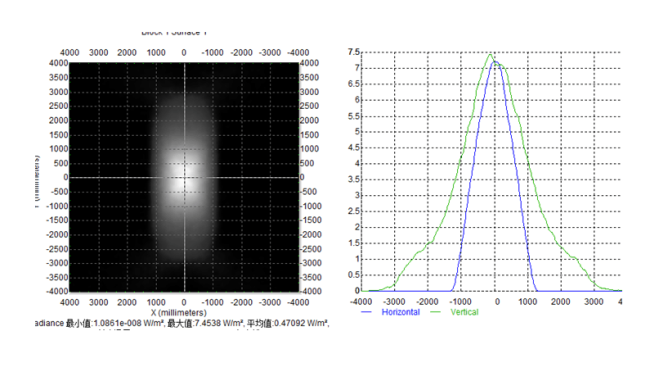

Led lens distribution:
NOTE: The typical divergence will be changed by different color, chip size and chip position tolerance. The typical total divergence is the full angle measured where the luminous intensity is half of the peak value.
Our team
Over 3 teams form our design department, with rich experience in the areas of optics, thermodynamics, industrial design, electrical engineering, information engineering, the arts, ect.
Strategic alliances with an extensive support base of experienced domestic and offshore mold makers ensure our customer’s objectives for quality, delivery, and value are met. Our engineers match strategic mold making partners to your requirements, conduct mold design reviews, perform mold flows as necessary, provide detailed delivery information, and ensure all your specifications are achieved.
Material: PMMA
PMMA is a strong and lightweight material.
PMMA transmits up to 92% of visible light (3 mm thickness), and gives a reflection of about 4% from each of its surfaces due to its refractive index (1.4905 at 589.3 nm). It filters ultraviolet (UV) light at wavelengths below about 300 nm (similar to ordinary window glass).
Poly(methyl methacrylate) (PMMA), also known as acrylic or acrylic glass as well as by the trade names Plexiglas, Acrylite, Lucite, and Perspex among several others.
PMMA is an economical alternative to polycarbonate (PC) when extreme strength is not necessary. Additionally, PMMA does not contain the potentially harmful bisphenol-A subunits found in polycarbonate. It is often preferred because of its moderate properties, easy handling and processing, and low cost.
