High Quality SKF/INS/OEM Spherical Roller Bearing 22220CA CAK CA/W33 CAK/W33 100*180*46 mm
Price:
Negotiable
MOQ:
1
Delivery Time:
3-7 work days
Brand:
STAROCK bearings
Product Description

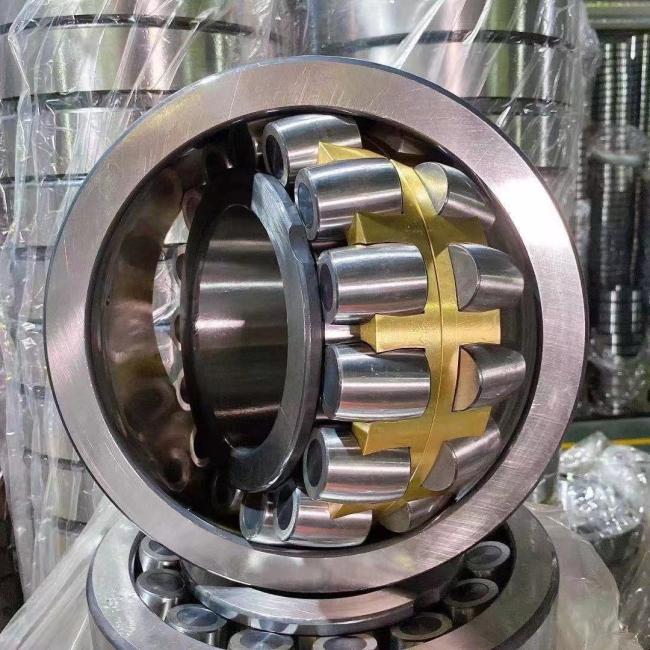

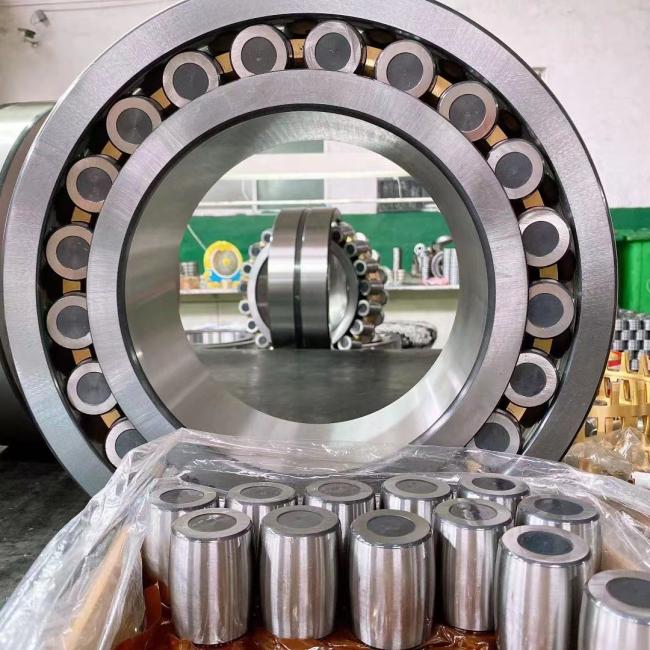

Spherical roller bearings
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Detailed Product Description
| Internal clearances | C2 C3 C4 C5 |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
|
| Place of Origin | China |
| Type | Roller |
| Structure | Spherical |
| Brand Name | STAROCK/FAG/SKF/OEM |
| Model Number | 22220CA CAK CA/W33 CAK/W33 |
| Package | Industrial Packing |
| Certificate | ISO9001 |
| Service |
OEM |
| Quality | High Performance |
| Material | Brass Cage |
| MOQ | 1 Pc |
Other size
| Bearing Number | Boundary Dimensions(mm) | Basic Load Ratings(kN) | Limiting Speeds(rpm) | Mass(Kg) | |||||
| IKG | d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) |
| 22205 | 25 | 52 | 18 | 1 | 36.5 | 36 | 6,500 | 10,000 | 0.186 |
| 22206 | 30 | 62 | 20 | 1 | 49 | 49 | 5,700 | 8,800 | 0.287 |
| 22207 | 35 | 72 | 23 | 1.1 | 69.5 | 71 | 4,900 | 7,500 | 0.446 |
| 22208 | 40 | 80 | 23 | 1.1 | 79 | 88.5 | 4,300 | 6,600 | 0.526 |
| 22209 | 45 | 85 | 23 | 1.1 | 82.5 | 95 | 3,800 | 5,900 | 0.584 |
| 22210 | 50 | 90 | 23 | 1.1 | 86 | 102 | 3,500 | 5,300 | 0.63 |
| 22211 | 55 | 100 | 25 | 1.5 | 118 | 144 | 3,200 | 4,900 | 0.808 |
| 22212 | 60 | 110 | 28 | 1.5 | 115 | 147 | 2,900 | 4,500 | 1.15 |
| 22213 | 65 | 120 | 31 | 1.5 | 143 | 179 | 2,700 | 4,200 | 1.5 |
| 22214 | 70 | 125 | 31 | 1.5 | 154 | 201 | 2,500 | 3,900 | 1.55 |
| 22215 | 75 | 130 | 31 | 1.5 | 166 | 223 | 2,300 | 3,600 | 1.65 |
| 22216 | 80 | 140 | 33 | 2 | 213 | 277 | 2,200 | 3,400 | 1.99 |
| 22217 | 85 | 150 | 36 | 2 | 251 | 320 | 2,100 | 3,200 | 2.49 |
| 22218 | 90 | 160 | 40 | 2 | 292 | 385 | 1,900 | 3,000 | 3.24 |
| 22219 | 95 | 170 | 43 | 2.1 | 294 | 390 | 1,800 | 2,800 | 4.1 |
| 22220 | 100 | 180 | 46 | 2.1 | 315 | 415 | 1,700 | 2,700 | 4.95 |
| 22222 | 110 | 200 | 53 | 2.1 | 410 | 570 | 1,600 | 2,400 | 7.2 |
| 22224 | 120 | 215 | 58 | 2.1 | 485 | 700 | 1,400 | 2,200 | 9.1 |
| 22226 | 130 | 230 | 64 | 3 | 570 | 790 | 1,300 | 2,000 | 11.2 |
| 22228 | 140 | 250 | 68 | 3 | 685 | 975 | 1,200 | 1,900 | 14 |
| 22230 | 150 | 270 | 73 | 3 | 7+75 | 1,160 | 1,100 | 1,700 | 18.1 |
| 22232 | 160 | 290 | 80 | 3 | 870 | 1,290 | 1,000 | 1,600 | 22.7 |
| 22234 | 170 | 310 | 86 | 4 | 1,000 | 1,520 | 980 | 1,500 | 28 |
| 22236 | 180 | 320 | 86 | 4 | 1,040 | 1,610 | 920 | 1,400 | 29.3 |
| 22238 | 190 | 340 | 92 | 4 | 1,160 | 1,810 | 860 | 1,300 | 36.6 |
| 22240 | 200 | 360 | 98 | 4 | 1,310 | 2,010 | 820 | 1,300 | 44 |
| 22244 | 220 | 400 | 108 | 4 | 1,580 | 2,460 | 730 | 1,100 | 60.4 |
| 22248 | 240 | 440 | 120 | 4 | 1,940 | 3,100 | 660 | 1,000 | 81.7 |
| 22252 | 260 | 480 | 130 | 5 | 2,230 | 3,600 | 610 | 930 | 106 |
| 22256 | 280 | 500 | 130 | 5 | 2,310 | 3,800 | 560 | 860 | 112 |
| 22260 | 300 | 540 | 140 | 5 | 2,670 | 4,350 | 510 | 790 | 141 |
Product descriptions
1.Pass the ISO Quality System Certification.
2.Quickly Shipping Within 1 Day.
3.Small MOQ,1 Piece is Available.
4.High Quality with Factory Directly Price.
5.100% factory testing and inspection personnel to ensure the quality of products manufactured.
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company.
Q: How is the compatibility of the parts?
A: 100% compatible with original manufacturer parts.
Q: How is the quality guaranteed?
A: Our products are fully inspected and many products have a warranty period.
Q: What is the payment method?
A: As long as it is a reasonable payment method, we almost accept it.
