Electric Hydraulic Automatic Hot Mounting Press with Touch Screen ZXQ-7
Electric Hydraulic Automatic Hot Mounting Press with Touch Screen ZXQ-7

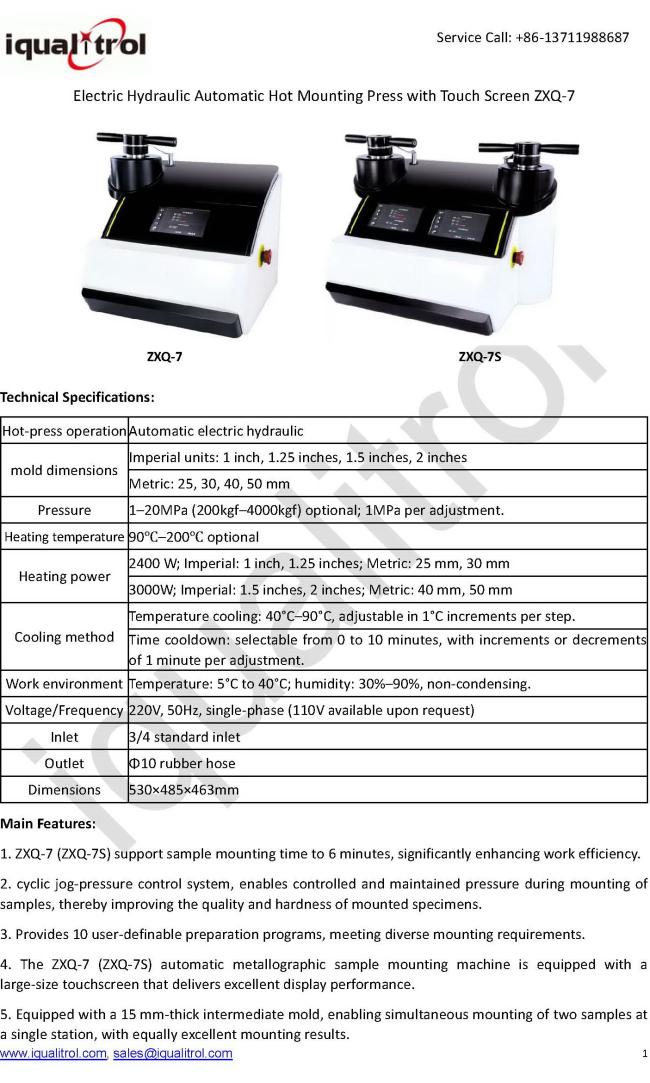

Download Technical Data:
Technical Specifications:
| Hot-press operation | Automatic electric hydraulic |
| mold dimensions | Imperial units: 1", 1.25", 1.5", 2" |
| Metric: 25, 30, 40, 50mm | |
| Pressure |
1–20 MPa (200 kgf–4,000 kgf) optional; increment or decrement by 1 MPa per adjustment. |
| Heating temperature | 90℃–200℃ optional |
| Heating power | 2400 W; Imperial: 1", 1.25"; Metric: 25mm, 30mm |
| 3000W; Imperial: 1.5", 2"; Metric: 40mm, 50mm | |
| Cooling method |
Temperature cooling: 40°C–90°C, adjustable in 1°C increments per step. |
|
Time cooldown: selectable from 0 to 10 minutes, with increments or decrements of 1 minute per adjustment. |
|
| Work environment |
Temperature: 5°C to 40°C; humidity: 30%–90%, non-condensing. |
| Voltage | AC220V, 50Hz, single-phase (option: AC110V) |
| Inlet | 3/4 standard inlet |
| Outlet | Φ10 rubber hose |
| External dimensions | 530×485×463mm |
Main Features:
1. ZXQ-7 (ZXQ-7S) integrated heating and cooling design reduces sample mounting time to just 6 minutes, significantly enhancing work efficiency.
2. Research was conducted on the development of a cyclic jog-pressure control system, associated methods, and sample preparation techniques, enabling controlled and maintained pressure during mounting of samples, thereby improving the quality and hardness of mounted specimens.
3. Pressure-retention circuit has also been implemented, which effectively expels residual air from the material, resulting in a uniformly textured inlaid specimen and preventing bubble formation caused by trapped air, thereby ensuring a smooth specimen surface.
4. The programmable control system of ZXQ-7 (ZXQ-7S) provides 10 user-definable preparation programs, meeting diverse mounting requirements.
5. This machine dispels the conventional image of bulky, clunky inlay equipment, featuring a brand-new ABS housing with a fresh, refined color scheme and sleek design that delivers a comfortable user experience.
6. The ZXQ-7 (ZXQ-7S) automatic metallographic sample mounting machine is equipped with a 15 mm-thick intermediate mold, enabling simultaneous mounting of two samples at a single station, with equally excellent mounting results.
7. During the actual sample preparation process, different pressures are required to accommodate various thermosetting mounting compounds. The ZXQ-7 (ZXQ-7S) can precisely control the pressure according to varying requirements, with an adjustment range of 1 to 20 MPa.
8. The ZXQ-7 (ZXQ-7S) automatic metallographic sample mounting machine is equipped with a large-size touchscreen that delivers excellent display performance.
