2.5D Fully Automatic CNC Vision Measuring System With CCD Navigation System
2.5D Fully Automatic CNC Vision Measuring Machine with CCD Navigation System

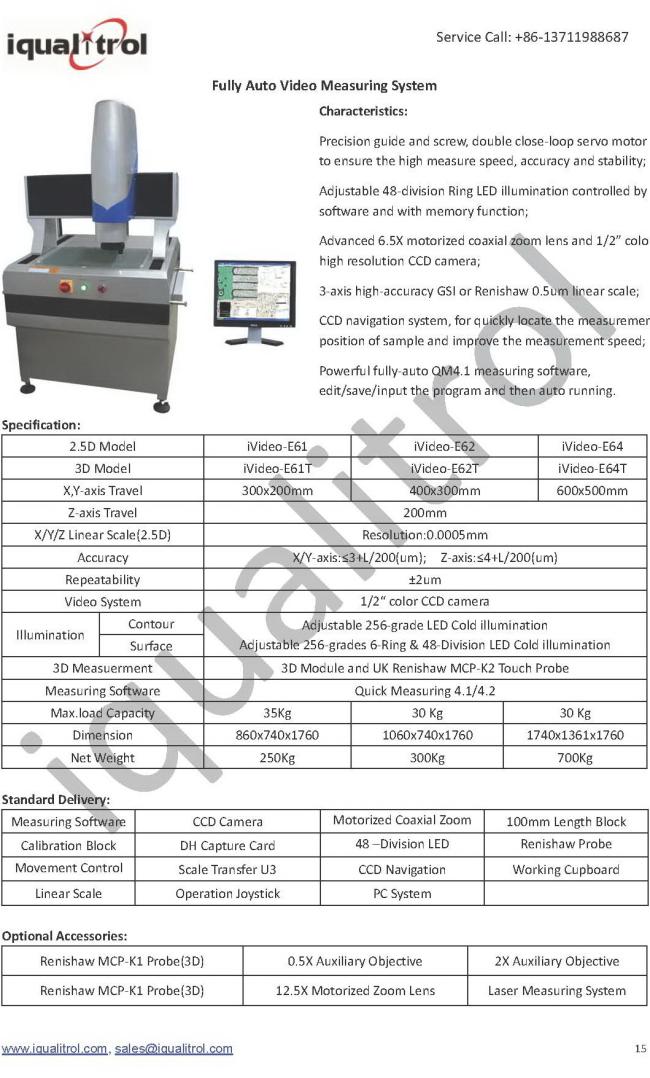

Download Technical Data:
Brief Introduction:
iqualitrol Vision measuring system is a machine that enables a computing device to inspect, measure, evaluate, and identify still or moving objects. Unlike the optical comparator, these machines use automated inspection.
Main Features:
1, Precision guide and screw, double close-loop servo motor to ensure the high measure speed, accuracy and stability;
2, Adjustable 48-division Ring LED illumination controlled by software and with memory function;
3, Advanced 6.5X motorized coaxial zoom lens and 1/2” color high resolution CCD camera;
4, 3-axis high-accuracy GSI or Renishaw 0.5um linear scale;
5, CCD navigation system, for quickly locate the measurement position of sample and improve the measurement speed;
6, Powerful fully-auto QM4.1 measuring software, edit/save/input the program and then auto running.
Technical Specifications:
| 2.5D Model | QVS-3020 | QVS-4030 | QVS-5040 | ||
| 3D Model | QVS-3020P | QVS-4030P | QVS-5040P | ||
| X,Y-axis Travel | 300x200mm | 400x300mm | 500x400mm | ||
| Z-axis Travel | 200mm | ||||
| X/Y/Z Linear Scale(2.5D) | Resolution:0.0005mm | ||||
| Accuracy | X/Y-axis:≤3+L/200(um); Z-axis:≤4+L/200(um) | ||||
| Repeatability | ±2um | ||||
| Video System |
1/2“ color CCD camera 6.5X Motorized coaxisl zoom lens |
||||
| Illumination | Contour | Adjustable 256-grade LED Cold illumination Adjustable 256-grades 6-Ring & 48-Division LED Cold illumination |
|||
| Surface | |||||
| 3D Measuerment | 3D Module and UK Renishaw MCP-K2 Touch Probe | ||||
| Measuring Software | Quick Measuring 4.1/4.2 | ||||
| Max.load Capacity | 35Kg | 30 Kg | 25 Kg | ||
| Dimension | 860x740x1760 | 1060x740x1760 | 1160x940x1760 | ||
| Net Weight | 250Kg | 300Kg | 360Kg | ||
Standard Delivery:
| Measuring Software | CCD Camera | Motorized Coaxial Zoom Lens | 100mm Length Block |
| Calibration Block | DH Capture Card | 48 –Division LED Illumination | Probe MCP-K2(3D) |
| Movement Control Card | Scale Transfer U3 | CCD Navigation | Working Cupboard |
| Linear Scale | Operation Joystick | computer |
Optional Accessories:
| Renishaw MCP-K1 Probe(3D) | 0.5X Auxiliary Objective | 2X Auxiliary Objective |
| Renishaw MCP-K1 Probe(3D) | 12.5X Motorized Zoom Lens | Laser Measuring System |
