As refractories, hex steel mesh’s characteristics are flexibility, high strength, and erosion resistance. Hex mesh is excellent for refractory linings in furnaces, reactors, cyclones, ducts, and flues. Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and so on.
The flexibility of HESLY’s Hexmesh allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.
 |
 |
| Standard Bonding Hole Pattern | Lance Pattern |
HESLY HexMesh Typical Service Temperature
|
Anchorage Material |
Chemical Composition |
Typical Service Temperature |
||||||||
|
AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
|
|
304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
|
316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
|
321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
|
310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
|
Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
|
Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
|
410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
|
CARBON STEEL |
VARIOUS |
550℃ |
||||||||
General Specification Sheet
|
HESLY Hex Steel Mesh |
|||||
|
ITEM |
SPECS |
B |
A |
AF |
|
|
1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
|
|
2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
|
|
3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
|
|
4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
|
|
5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
|
|
6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
|
|
7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
|
|
8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
|
|
9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
|
|
10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
|
|
11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
|
|
12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
|
|
13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
|
|
14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
|
|
Remark |
A/F |
Min: 40mm Max: 100mm |
|||
|
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
||||
Hexsteel Photo Showcase
 |
 |
| 1" depth 310S Hexsteel | 1" depth 310S Hexsteel |
 |
 |
| 310S 50mm depth Hexsteel Offset Lances | 304 50mm depth Hexsteel Double Clench |
 |
 |

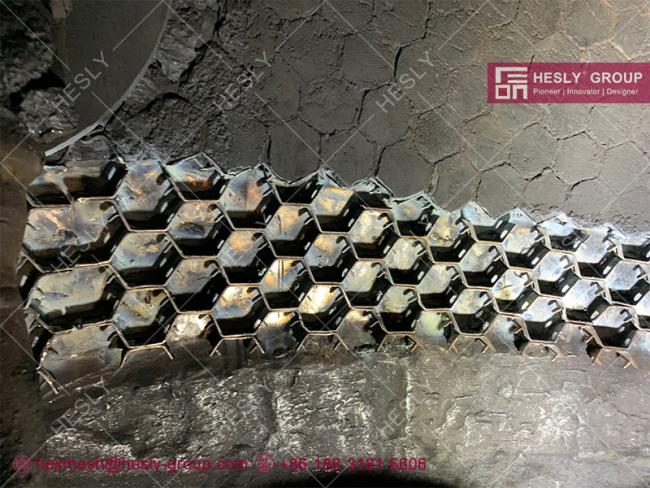

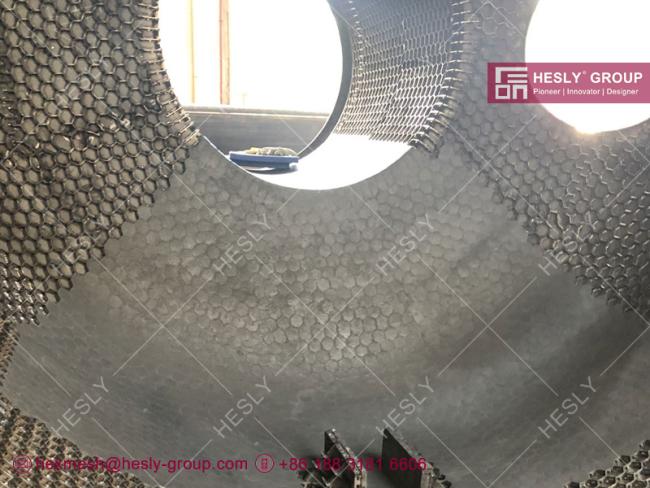

| Hex Steel Mesh | Hex Steel Mesh China |
