Hexsteel Grid, also named Hexmetal and hexmesh is a hexagon shaped grid used in the installation of thick linings. Hexmesh supports the lining and prevents slumps. It retards erosion, corrosion, cracking, blistering, pitting or collapse thereby lengthening the life of the lining. Hexmetal is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the steel shell and the armored surface. The slots permit passage of the castable which forms a key between adjacent cells. Available in standard and lance pattern.
FOR REFRACTORIES
The flexibility, high strength and erosion resistant characteristics of Hexmesh make it an excellent choice for refractory linings in furnaces, reactors, cyclones, ducts and flues.
FOR FLOORS
Hexmesh provides long term protection for armor applications inside industrial floors. Specifically, loading docks, ramps, high traffic aisles for forklifts and trucks. Hot floors for foundries, forge shops and steel mills. Refuse and recycle disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads. All will benefit with Hexmesh
Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.
The flexibility of HESLY’s Hexmesh allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.
 |
 |
| Standard Bonding Hole Pattern | Lance Pattern |
HESLY HexMesh Typical Service Temperature:
|
Anchorage Material |
Chemical Composition |
Typical Service Temperature |
||||||||
|
AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
|
|
304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
|
316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
|
321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
|
310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
|
Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
|
Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
|
410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
|
CARBON STEEL |
VARIOUS |
550℃ |
||||||||
HESLY-hexsteel ordinary specs:
|
HESLY-hexsteel ordinary specifications (E-ON refractory) |
|||||
|
ITEM |
SPECS |
B |
A |
AF |
|
|
1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
|
|
2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
|
|
3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
|
|
4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
|
|
5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
|
|
6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
|
|
7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
|
|
8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
|
|
9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
|
|
10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
|
|
11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
|
|
12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
|
|
13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
|
|
14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
|
|
Remark |
A/F |
Min: 40mm Max: 100mm |
|||
|
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
||||
Hexsteel Photo Showcase
 |
 |

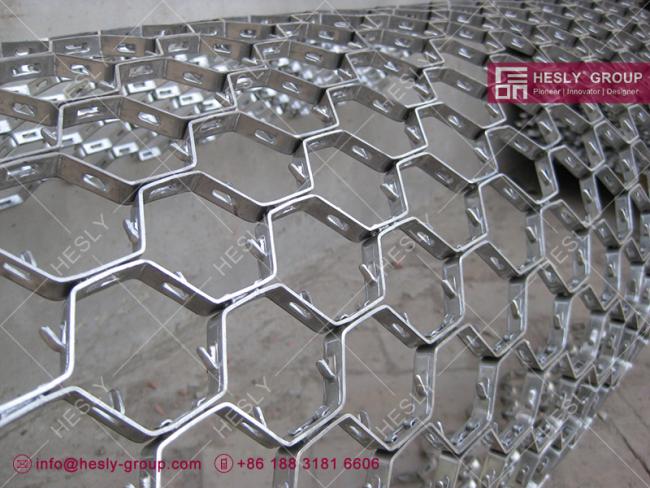

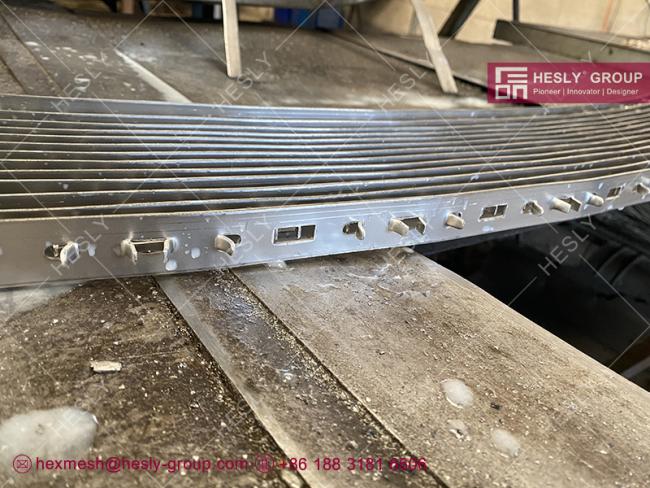

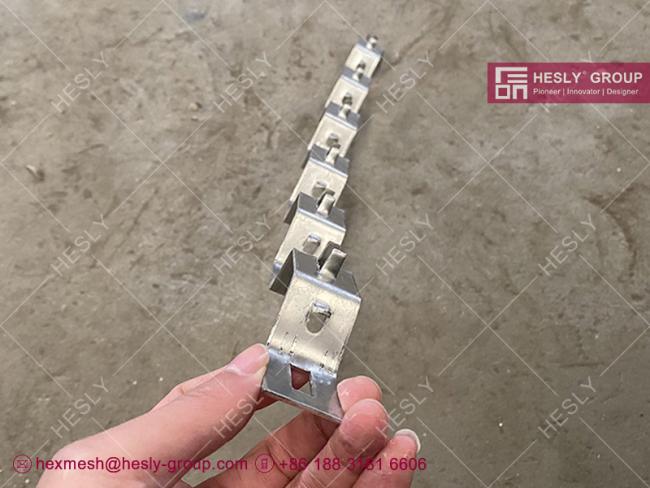

| 1" depth 310S Hexsteel Strips | 1" depth 310S Hexsteel Strip |
 |
 |

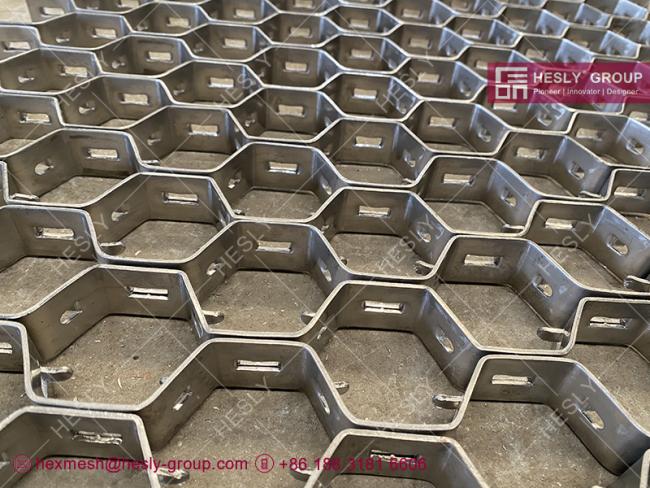

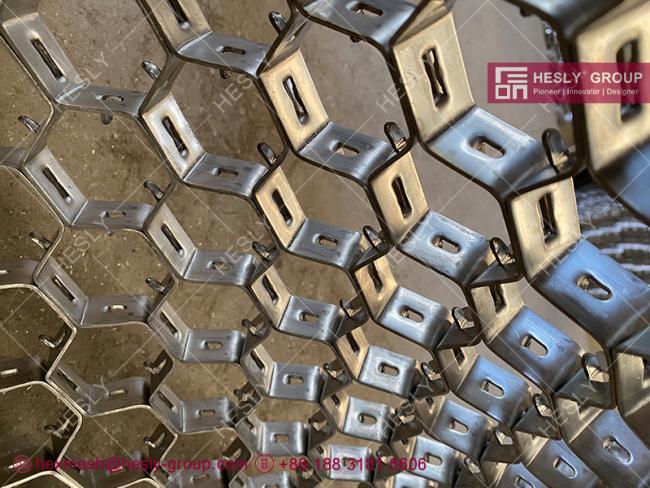

| AISI310S 50mm depth Hexsteel Grid | AISI310S 50mm depth Hexsteel Grid |
 |
 |

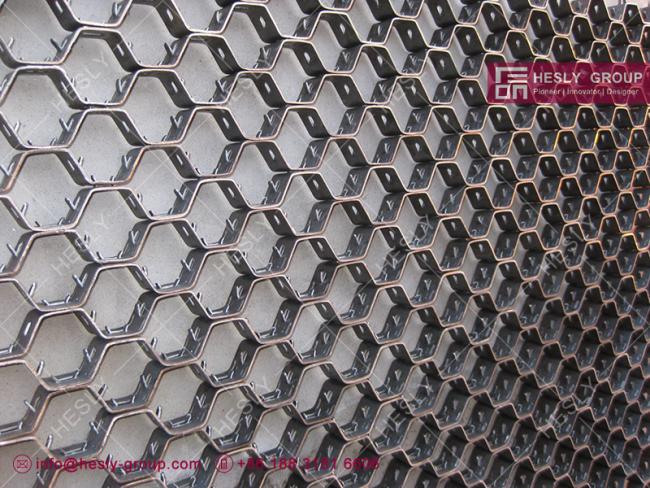

| Hexsteel Mesh | Hex steel Mesh |

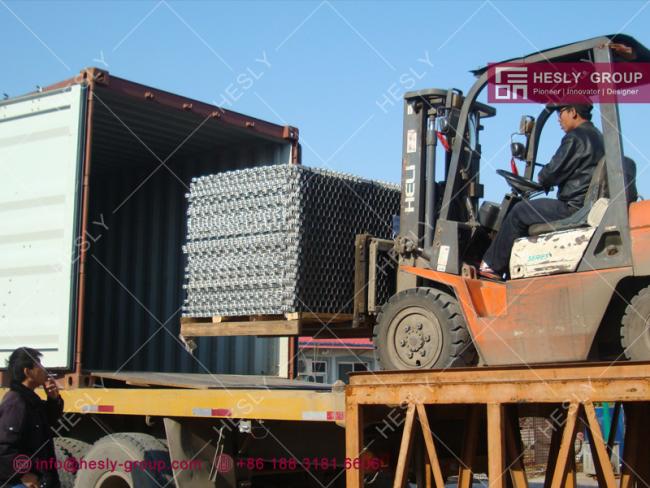

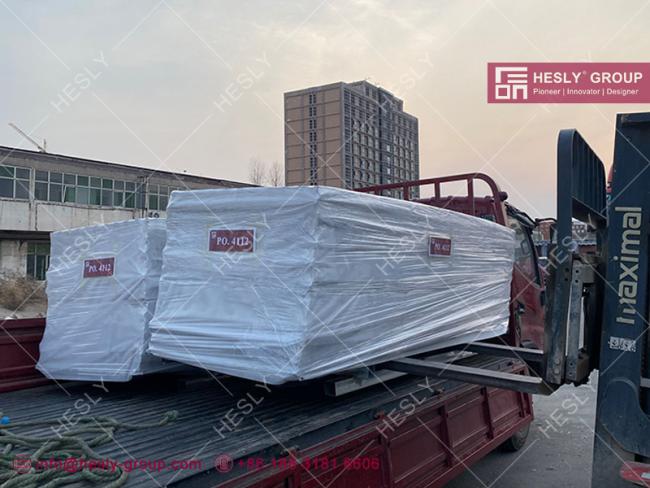

Package and Delivery
 |
 |
| CHINA Hexsteel Supplier | China Hexsteel Manufacturer |
