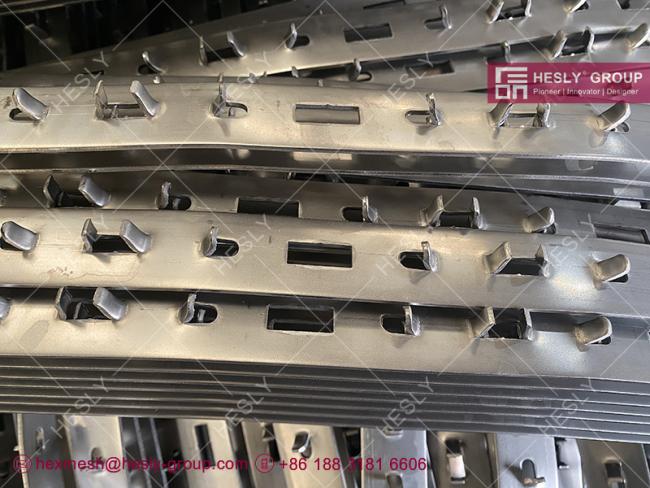

Loading Docks Hexsteel Lining, Stainless Steel 304, 10mm depth, 1.0mm thickness, 50mm hexagonal hole, HESLY China

hex mesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

Since hexsteel's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape.

304H hexsteel refractory lining is the direct counterpart of hex metal, it performs all the same functions of reinforcement of thin wall refractory linings, while its design allows free form rolling to very small diameters. Hex metal becomes impractical to use when the section of plant being protected is of small diameter, the free rolling capabilities of flex metal allows plant as small as 150mm to lined. Typical applications include air distributors, fan cases and all plants where the practicality of free rolling material is beneficial to maintenance activities.

Hexmesh and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support

The main style of HESLY Hex Mesh

Hexsteel: Bonding Hole Type Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.	Hex-metal: Pronges/Lances Type this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.



Application of HESLY Hex mesh:

Hex mesh is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.

Hex steel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.

HESLY Hex Mesh Material Selection

Hexmesh Gallery

Photo Gallery - HESLY Hexsteel Mesh

Loading Docks Hexsteel	Loading Docks Hexmesh
Fan Housing HexMesh	Tanks Stacks Hexmetal
Hexsteel Refractory Linings	Hex Steel Mesh China Factory

Package and Delivery

​
China Hexmesh Factory	China Hexmetal Exporter
