310S hex steel grid with 60mm standard thickness | standard size 1000x1000mm |
Price:
Negotiated according to the order
MOQ:
1㎡
Delivery Time:
according to the order (hexmetal in stock)
Brand:
HESLY
Product Description

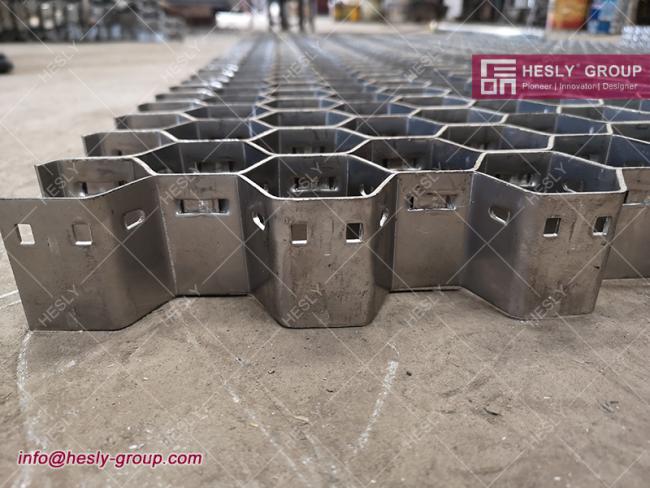

310S hex steel grid, 310S hexmetal, Furnace Lining 310s hexmesh
As refractories, hex steel mesh’s characteristics are flexibility, high strength, and erosion resistance. Hex mesh is excellent for refractory linings in furnaces, reactors, cyclones, ducts, and flues.
Hexsteel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.
Hexsteel metal is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.
Range of carbon steel in stock and ready to go including stainless steel 304, 310,410S and 253MA. Other materials can be supplied on request.
 |
 |
| Hexmesh: Bonding Hole Type | Hex-mesh: Pronges Type |
Application of HESLY Hex mesh grid:
- As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
- Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
- Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.
HESLY hexsteel Typical Service Temperature:
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
Common Specification Sheet
| ITEM | SPECS | B | A | AF | |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm | |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm | |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm | |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm | |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm | |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm | |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm | |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm | |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm | |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm | |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm | |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm | |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm | |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm | |
| Remark | A/F | Min: 40mm Max: 100mm | |||
| MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S | ||||
HESLY Hexmesh Typical Service Temperature:
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
Photo Gallery - HEXSTEEL
 |
 |
| Refractory Hexsteel mesh | HESLY Hexsteel Factory |
 |
 |
| Hex-mesh With Pronges | Hex Steel Mesh with Bonding Holes |
Package and Delivery
 |
 |
| China Hexmetal Factory | China Hexmetal Exporter |
 |
|
| HESLY CHINA HEXMESH & ANCHORS FACTORY | |
 |
