Product Description
Flex Metal Grids for Erosive Flue Gas Streams,Flexmetal Reactor Vessels

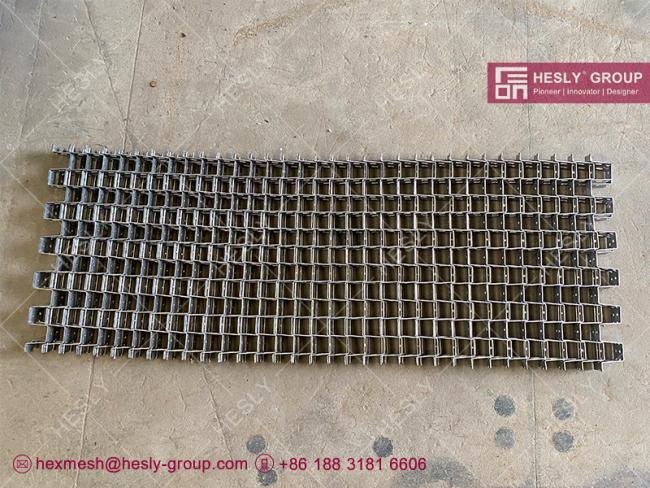

Flex Metal Grid for Refractory Linings is made from shaped metal flat wires connected with rods so that flexibility of the panels is guaranteed in one direction, thus enabling installation without prior rolling. This characteristic means that Flexmetal can also be installed on cylinders with very small diameters,such as cyclone diplegs, ducts, fan casings and small cylinders. Flexmetal is always available in rolls of standard height 1020 mm in AISI 304H, 410S and 310S. On request, Flexmetal can be supplied in other materials and in rolls of different widths.
Flex Hexmetal is the direct counterpart of Hex metal. It performs all the same functions in reinforcement of thin wall refractory linings, while its' design allows free form rolling to very small diameters. Hex metal becomes impractical when the section of plant being protected is of small diameter. The free rolling capabilities of Flex metal allows plant as small as 150 mm to be lined. Typical applications include Air Distributors, Cyclone Dip legs, Fan Cases, or any other plants where the practicality of free rolling material is beneficial to maintenance activities.
Style of Flexible Mesh
 |
 |
| Standard | with Lances |
Common Specification Sheet
| HESLY Flexible Metal Mesh | ||||||||
| Model | Strips | Rod | Width | Length | Weight | |||
| Depth | Thickness | |||||||
| HFM2520 | 25mm | 1” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM2515 | 25mm | 1” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1920 | 19mm | 3/4” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1915 | 19mm | 3/4” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1620 | 16mm | 5/8” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1615 | 16mm | 5/8” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1420 | 14mm | 9/16” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1415 | 14mm | 9/16” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
Typical Service Temperature
|
Anchorage Material |
Chemical Composition |
Typical Service Temperature |
||||||||
|
AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
|
|
304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
|
316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
|
321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
|
310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
|
Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
|
Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
|
410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
|
CARBON STEEL |
VARIOUS |
550℃ |
||||||||
