Stainless Steel 410S grade 14gauge X 3/4" depth Hexmesh with Bonding hole for refractory line
Price:
Negotiated according to the order
MOQ:
1 ㎡
Delivery Time:
according to the order (in stock)
Brand:
HESLY
Product Description
Stainless Steel 410S grade 14gauge X 3/4" depth Hexmesh with Bonding hole
Hexmesh is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, which prevents spalling and cracking. As a result of hex metal’s strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
HESLY hex metal, hex mesh & hexsteel, your best choice for Anchoring & Reinforcement for Refractories and Concrete Flooring.
HESLY® Hexmetal
HESLY HexMetal range is defined as a unique hexagonal cellular mesh steel, made of flat bar which is designed to provide brilliant retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, retarding erosion, corrosion, blistering and cracking.
Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.
The flexibility of HESLY Steel’s Hex Metal allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.
 |
 |

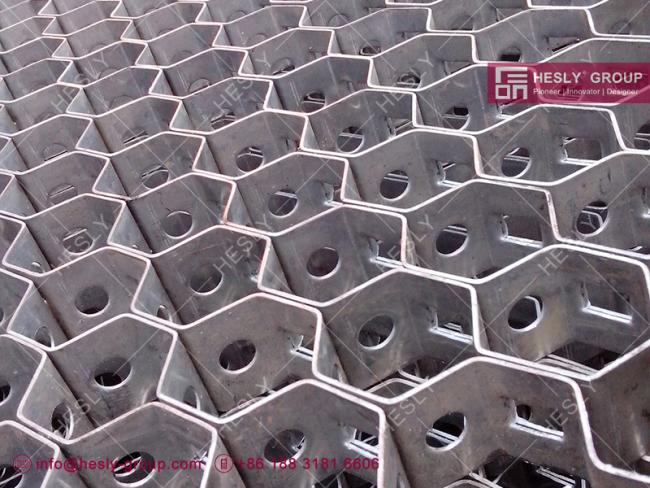

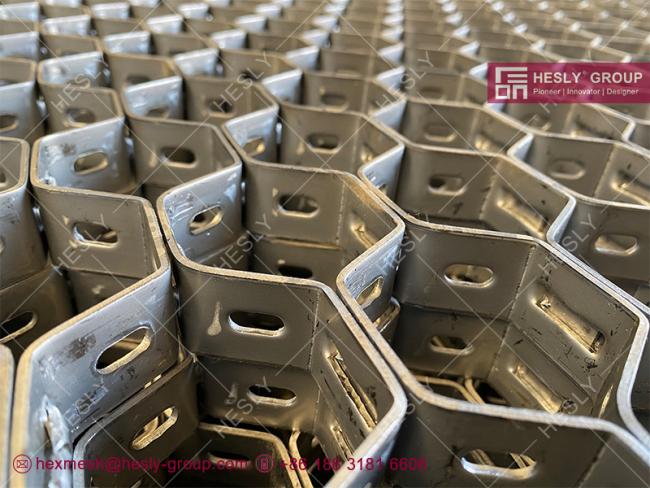

| Hexmetal: Bonding Hole Type | Hex-metal: Pronges Type |
Applications
- As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
- Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
- Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.
Raw Material Typical Service Temperature
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
Common Specification Sheet
| ITEM | SPECS | B | A | AF | |
| 1 | 1.2 X 10 X 50mm | 1.2mm | 10mm | 40mm | |
| 2 | 1.2 X 15 X 50mm | 1.2mm | 15mm | 50mm | |
| 3 | 1.2 X 20 X 50mm | 1.2mm | 20mm | 50mm | |
| 4 | 1.5 X 10 X 50mm | 1.5mm | 10mm | 50mm | |
| 5 | 1.5 X 15 X 50mm | 1.5mm | 15mm | 50mm | |
| 6 | 1.5 X 20 X 50mm | 1.5mm | 20mm | 50mm | |
| 7 | 1.8 X 15 X 50mm | 1.8mm | 15mm | 50mm | |
| 8 | 1.8 X 20 X 50mm | 1.8mm | 20mm | 50mm | |
| 9 | 1.8 X 25 X 50mm | 1.8mm | 25mm | 50mm | |
| 10 | 2.0 X 15 X 50mm | 2.0mm | 15mm | 50mm | |
| 11 | 2.0 X 20 X 50mm | 2.0mm | 20mm | 50mm | |
| 12 | 2.0 X 25 X 50mm | 2.0mm | 25mm | 50mm | |
| 13 | 2.0 X 30 X 50mm | 2.0mm | 30mm | 50mm | |
| 14 | 2.0 X 30 X 80mm | 2.0mm | 30mm | 80mm | |
| Remark | A/F | Min: 40mm Max: 100mm | |||
| MATERIAL | A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S | ||||
Photo Gallery - HEXMETAL
 |
 |
| Cat Crackers Hexmesh | HESLY HexmeshFactory |
 |
 |
| Hexmesh Cyclones lining | Tanks Stacks Hexmesh |
Package and Delivery
 |
 |
| China Hexmesh Factory | China Hexmetal Exporter |
 |
|
| HESLY CHINA HEXMESH & ANCHORS FACTORY | |
 |
