00Cr17Ni14Mo2 hex steel grid with 20mm standard height, 60mm hole | standard size 965mmx1000mm
00Cr17Ni14Mo2 hex steel grid, Din1.4435 hexmetal, Refractory Lining ss316L hexmesh
Hex mesh Refractory Lining is also known as hex metal, hex metal grating, hex steel mesh, Hex steel grill or hex steel grid. Metal Hex grid provides surface framework for reinforcement of the refractory or concrete material in linings. They are made of pressed strips riveted to each other to form the hexagonal apertures.
Hex metal refractory lining is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. The hex steel mesh acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.
HESLY hexsteel Typical Service Temperature:
|
Anchorage Material |
Chemical Composition |
Typical Service Temperature |
||||||||
|
AISI |
DIN |
C% |
Si% |
Mn% |
P% |
S% |
Cr% |
Ni% |
others |
|
|
304 |
1.4301 |
≤0.08 |
≤1.00 |
≤2.00 |
≤0.45 |
≤0.30 |
18.0—20.0 |
8.0—10.0 |
N |
800℃ |
|
316 |
1.4401/1.4436 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
16.0—18.0 |
10.0—14.0 |
N:Mo |
800℃ |
|
321 |
1.4541 |
≤0.08 |
≤0.75 |
≤2.00 |
≤0.45 |
≤0.30 |
17.0—19.0 |
9.0—12.0 |
Ti |
800℃ |
|
310S |
1.4845 |
≤0.08 |
≤1.50 |
≤2.00 |
≤0.45 |
≤0.30 |
24.0—26.0 |
19.0—22.0 |
— |
1150℃ |
|
Inconel 601 |
2.4851 |
≤0.10 |
≤0.50 |
≤1.00 |
— |
≤0.15 |
21.0—25.0 |
58.0—63.0 |
Al:Cu |
1200℃ |
|
Inconel 800 |
1.4876 |
≤0.10 |
≤1.00 |
≤1.50 |
≤0.45 |
≤0.15 |
19.0—23.0 |
30.0—35.0 |
Al:Ti |
1200℃ |
|
410S |
1.4001 |
≤0.08 |
≤1.00 |
≤1.00 |
≤0.40 |
≤0.30 |
11.5—13.5 |
≤0.60 |
— |
750℃ |
|
CARBON STEEL |
VARIOUS |
550℃ |
||||||||
HESLY-hexsteel ordinary specs:
|
HESLY-hexsteel ordinary specifications (E-ON refractory) |
|||||
|
ITEM |
SPECS |
B |
A |
AF |
|
|
1 |
1.2 X 10 X 50mm |
1.2mm |
10mm |
40mm |
|
|
2 |
1.2 X 15 X 50mm |
1.2mm |
15mm |
50mm |
|
|
3 |
1.2 X 20 X 50mm |
1.2mm |
20mm |
50mm |
|
|
4 |
1.5 X 10 X 50mm |
1.5mm |
10mm |
50mm |
|
|
5 |
1.5 X 15 X 50mm |
1.5mm |
15mm |
50mm |
|
|
6 |
1.5 X 20 X 50mm |
1.5mm |
20mm |
50mm |
|
|
7 |
1.8 X 15 X 50mm |
1.8mm |
15mm |
50mm |
|
|
8 |
1.8 X 20 X 50mm |
1.8mm |
20mm |
50mm |
|
|
9 |
1.8 X 25 X 50mm |
1.8mm |
25mm |
50mm |
|
|
10 |
2.0 X 15 X 50mm |
2.0mm |
15mm |
50mm |
|
|
11 |
2.0 X 20 X 50mm |
2.0mm |
20mm |
50mm |
|
|
12 |
2.0 X 25 X 50mm |
2.0mm |
25mm |
50mm |
|
|
13 |
2.0 X 30 X 50mm |
2.0mm |
30mm |
50mm |
|
|
14 |
2.0 X 30 X 80mm |
2.0mm |
30mm |
80mm |
|
|
Remark |
A/F |
Min: 40mm Max: 100mm |
|||
|
MATERIAL |
A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S |
||||
Reference Photos - HESLY Hexmesh
 |
 |

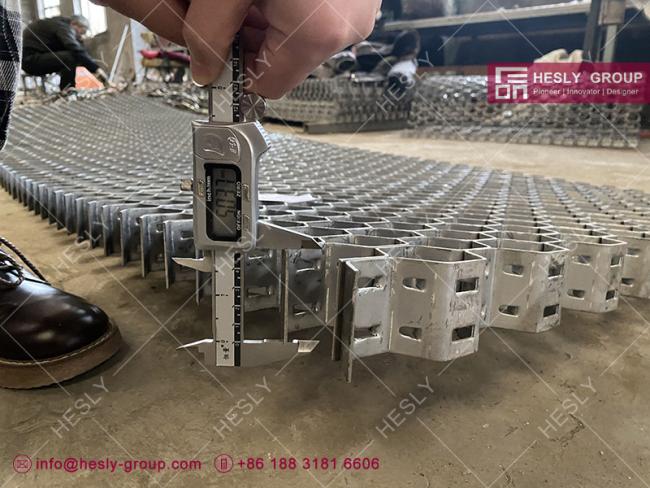

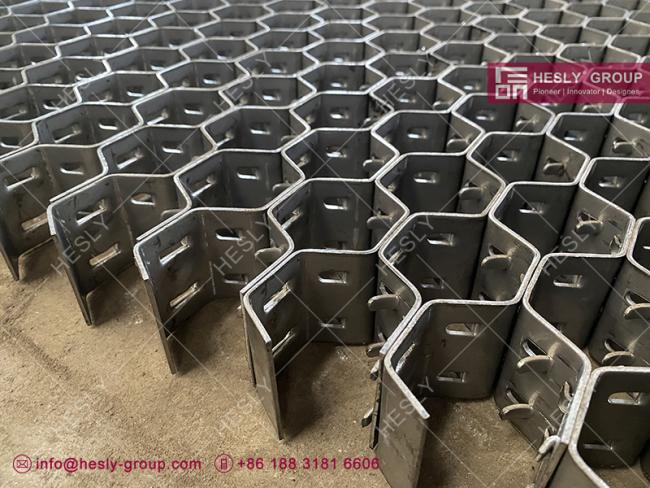

| Double Clench Hexmetal | Double Clench Hexmetal mesh |
 |
 |

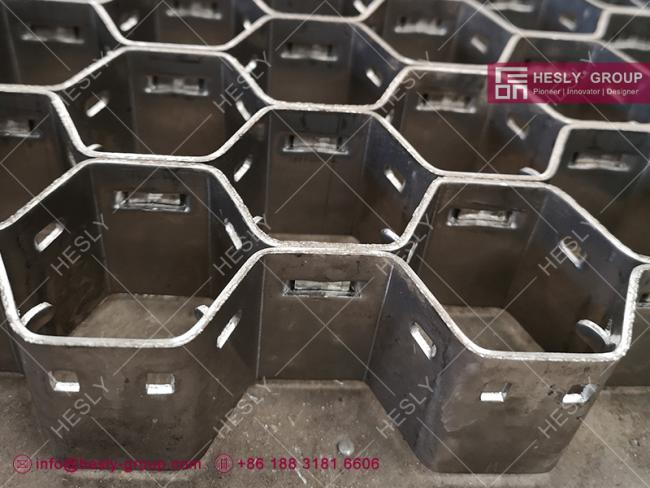

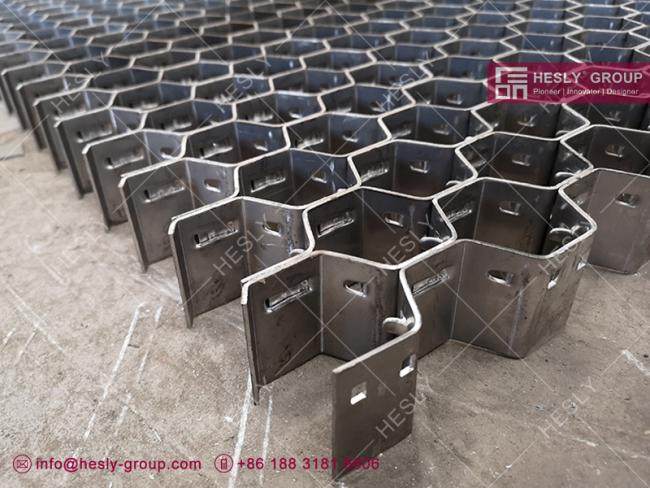

| Offset lances Hexmesh | Offset Lances Hexmesh |
 |
 |

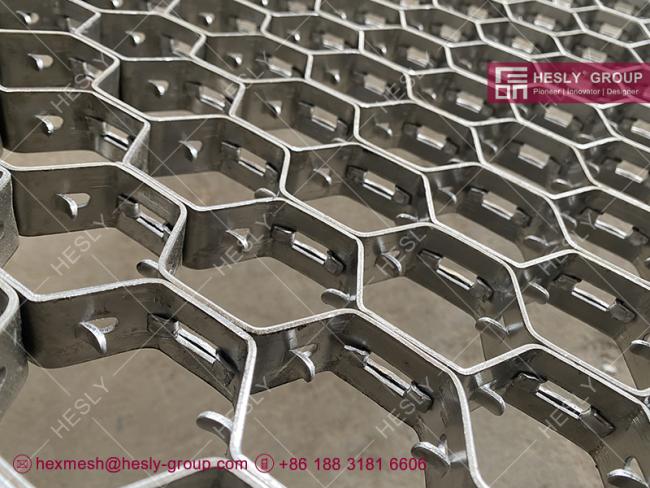

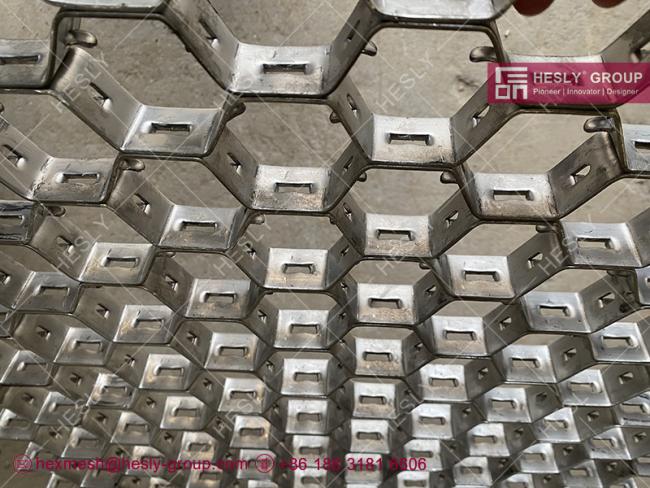

| 310S 1" hexmesh | 310S 1" Depth Hexmetal |
