AISI309s Flexible Metal Mesh for Refractory Lining | 3/4" height | 14gauge thickness | Hesly Metal Mesh - CHINA
AISI309S Flexible Metal Mesh for Refractory Lining | 3/4" height |14Gauge thickness | Hesly Metal Mesh - China
Anchoring & Reinforcement for Refractories and Concrete Flooring - HESLY Hex mesh & Armouring solutions
is the direct counterpart of Hexmetal / Hexmesh. It performs all the same functions as Hexmesh, its design however, allows free form rolling to diameters as small as 75mm without the need for any power forming equipment.
 |
 |
|

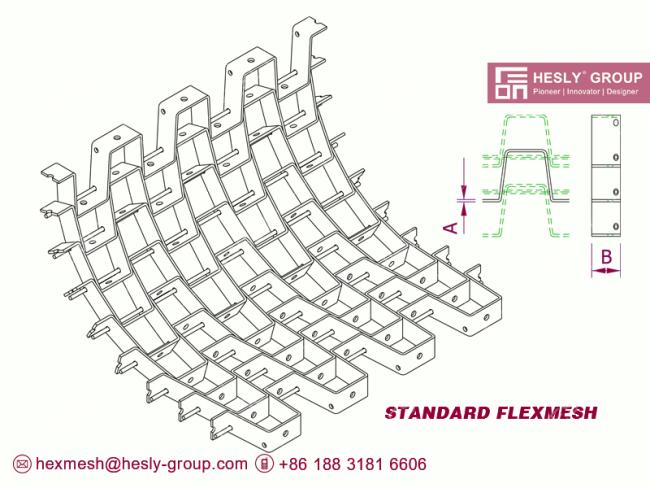

Standard Flexible Mesh |

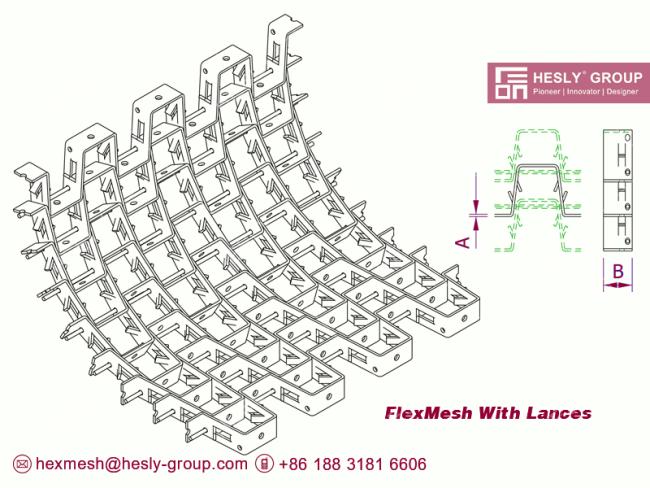

Flexible Mesh with Lances |
Application of HESLY Flexible Metal Mesh
Flexible Mesh is used for armouring and retaining abrasion and acid-resistant linings as well as heat insulating linings applied to vessels, FCC units, cyclones and furnaces.
HESLY Flexible Metal is made of formed steel strips connected with rods in such a way as to guarantee perfect flexibility of the panels during installation without any pre-rolling operation.
Typical applications for hesly are: cyclone diplegs, cyclone bracings, air distributor cylinders “wye sections”and any other pipes with narrow diameters.
Raw Material Typical Service Temperature
| Anchorage Material | Chemical Composition |
Typical Service Temperature |
||||||||
| AISI | DIN | C% | Si% | Mn% | P% | S% | Cr% | Ni% | others | |
| 304 | 1.4301 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.45 | ≤0.30 | 18.0—20.0 | 8.0—10.0 | N | 800℃ |
| 316 | 1.4401/1.4436 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 16.0—18.0 | 10.0—14.0 | N:Mo | 800℃ |
| 321 | 1.4541 | ≤0.08 | ≤0.75 | ≤2.00 | ≤0.45 | ≤0.30 | 17.0—19.0 | 9.0—12.0 | Ti | 800℃ |
| 310S | 1.4845 | ≤0.08 | ≤1.50 | ≤2.00 | ≤0.45 | ≤0.30 | 24.0—26.0 | 19.0—22.0 | — | 1150℃ |
| Inconel 601 | 2.4851 | ≤0.10 | ≤0.50 | ≤1.00 | — | ≤0.15 | 21.0—25.0 | 58.0—63.0 | Al:Cu | 1200℃ |
| Inconel 800 | 1.4876 | ≤0.10 | ≤1.00 | ≤1.50 | ≤0.45 | ≤0.15 | 19.0—23.0 | 30.0—35.0 | Al:Ti | 1200℃ |
| 410S | 1.4001 | ≤0.08 | ≤1.00 | ≤1.00 | ≤0.40 | ≤0.30 | 11.5—13.5 | ≤0.60 | — | 750℃ |
| CARBON STEEL | VARIOUS | 550℃ | ||||||||
Common Specification Sheet
| HESLY Flexible Metal Mesh | ||||||||
| Model | Strips | Rod | Width | Length | Weight | |||
| Depth | Thickness | |||||||
| HFM2520 | 25mm | 1” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM2515 | 25mm | 1” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1920 | 19mm | 3/4” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1915 | 19mm | 3/4” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1620 | 16mm | 5/8” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1615 | 16mm | 5/8” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1420 | 14mm | 9/16” | 2.0mm | 14 GA | 3.0mm | 1.0m | 1.5m | |
| HFM1415 | 14mm | 9/16” | 1.5mm | 17 GA | 3.0mm | 1.0m | 1.5m | |
Hexmetal Gallery
 |
 |
| Flexible Mesh Refractory Lining | Flexible Metal Mesh China Factory |
 |
 |
| Hexsteel Refractory Linings | Hex Steel Mesh China Factory |
