Welded Heavy Duty Gratings are designed to service applications subject to heavy rolling and static loads such as highways, plant floors, loading docks, inlet covers and airports. Since these conditions can range from light-duty forklifts to heavy-duty truck or aircraft traffic, heavy duty gratings are manufactured in a wide range of bar sizes and spacings. Steel Bar Grating with bearing bars thicker than 3/16" is considered to be "Heavy Duty" and carries the designation prefix "Type HD". Available bar thicknesses are 1/4" (6.4mm) , 5/16" (7.9mm) and 3/8" (9.5mm) in either plain or serrated surface. Standard depths range from 1" (25mm) up to 4" (102mm), although larger sizes are available upon request.
Heavy-Duty Steel Gratings uses thicker <1/4"(6.3mm), 5/16"(8mm), 3/8"(10mm)> and deeper bearing bars. Heavy-Duty Welded Grating has the strength for heavy-duty load areas such as airfields, highways, industrial plants, truck and bus terminals, parking lots and railroad yards. Common uses are flooring, driveways, subway and tunnel ventilation grilles, curb inlet grates, ramps, docks, etc.
Steel grating standards:
| Grating Standard | Material Standard | HDG standard |
|
China: YB/T 4001.1-2007 |
China: GB 700-88 |
CHINA: GB/T13912-2002 |
Materials & Finishes
Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.
How to Install steel grating ?
Common Specifications Sheet - HESLY Steel Grating
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Reference Photos - Stainless Steel Grating
 |
 |
| I bar Steel Grating Factory | I shaped Bar Welded Grating |
 |
 |

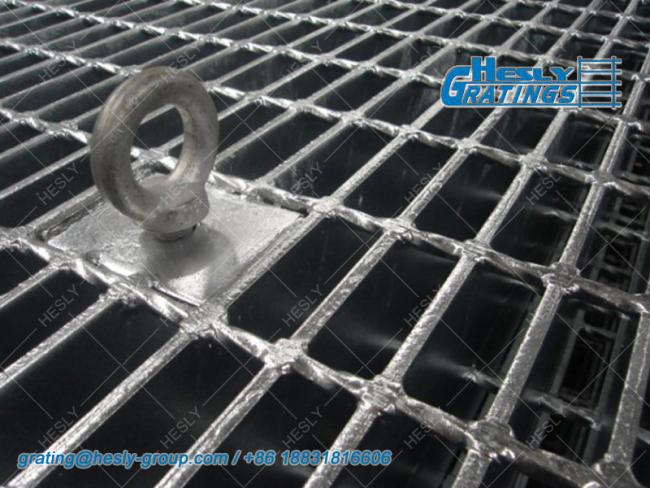

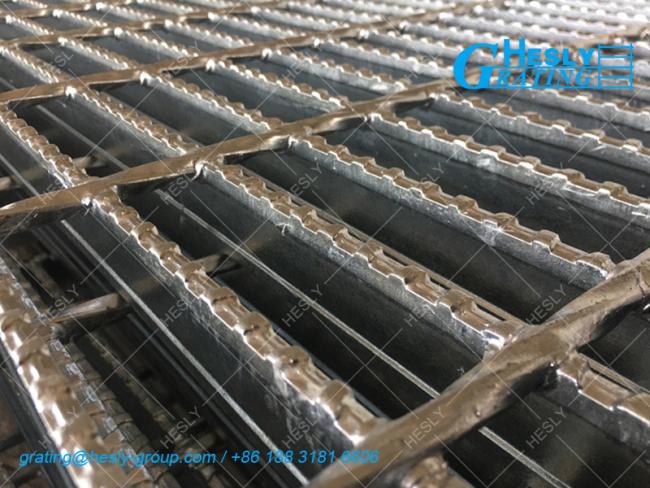

| Serrated I bar Steel Grating | Heavy Duty Bar Grating Factory |

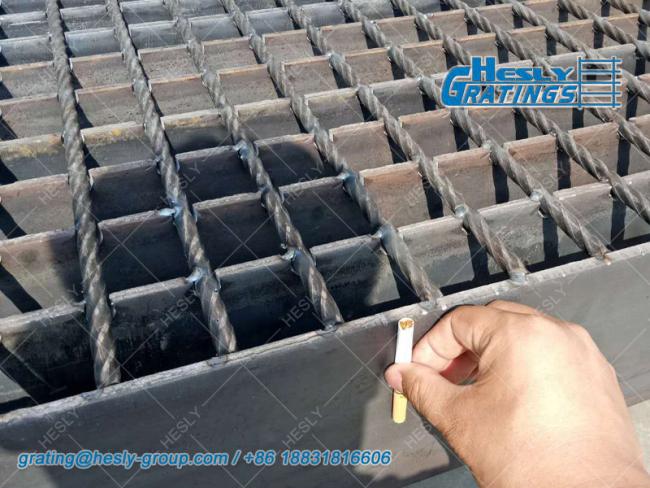

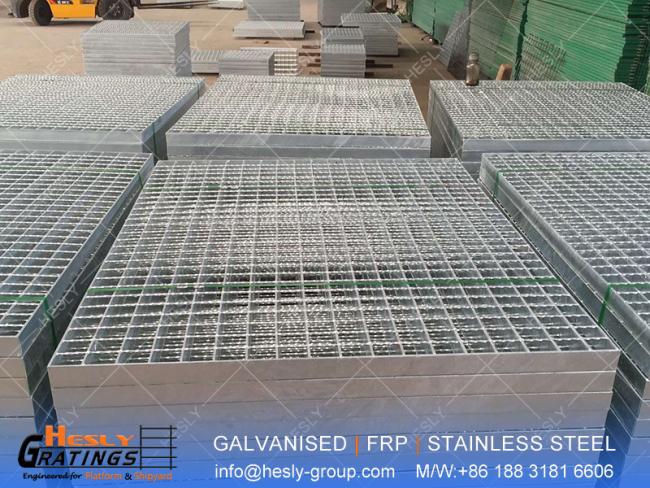

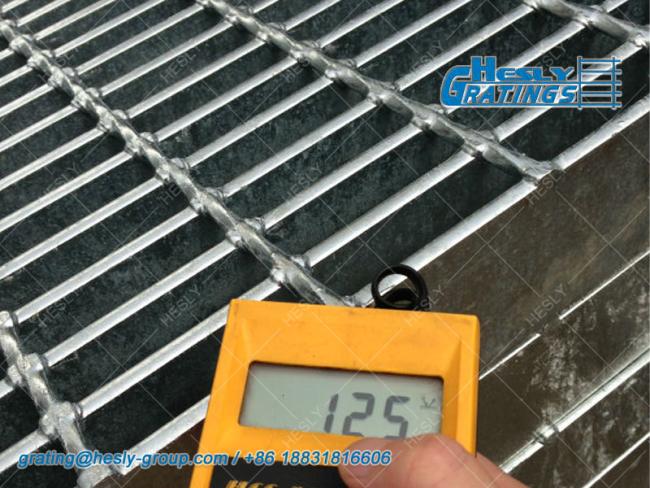

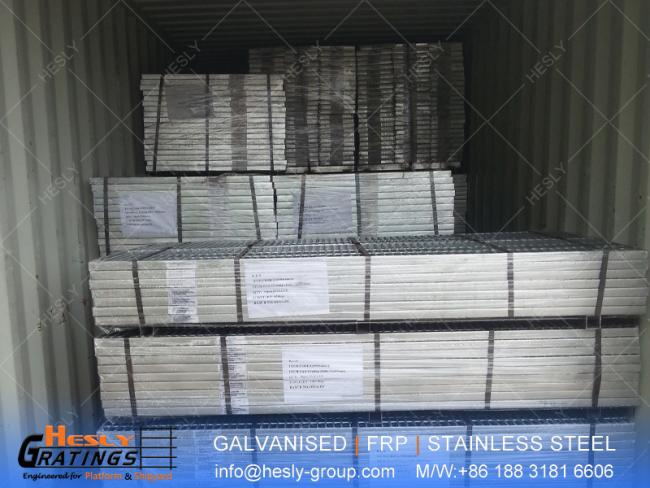

Package and Delivery
 |
 |
| China Steel Grating Factory | Welded Bar Grating Supplier |

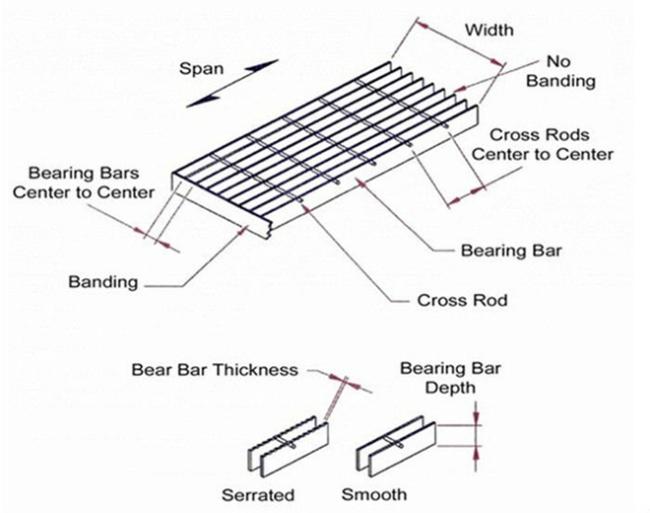

How To Order Steel Grating ?
 |
Just Let us know below the information. Then we can give a formal offer accordingly.
|
| Carbon Steel / Stainless Steel / FRP grating factory sales | |
 |
