Perf-O Grip Grating, width 300mm, 2.0mm thickness steel, 2000mm length, Galvanised, China HESLY Grating factory
Perf-O Grip Grating, width 300mm, 2.0mm thickness steel, 2000mm length, Galvanised, China HESLY Grating factory
Perf-O Grip safety grating is a one-piece metal plank grating manufactured into the shape of a channel by a cold forming process. The web of the channel is the walking surface and has large debossed holes, surrounded by smaller embossed traction buttons. Perf-O Grip safety grating is used to create non-slip commercial and industrial metal walkways and stairways. The stair tread surface has a high load capacity, long life and high strength-to weight performance. Perf-O Grip metal stair treads are manufactured with welded end carrier plates and are pre-punched with holes, which allow the treads to be bolted to the stair stringers. Simple and economical installation, asmetal grating planks are self-framing. Adaptable to cost effective custom fabrication.
O-Grip safety grating is manufactured in an array of standard dimensions as well as custom for special requirements. It can be fabricated into stair treads, walkways and planks of commercial and industrial facilities and job-sites. Related accessories are provided separately.
O-Grip safety grating is manufactured in an array of standard dimensions as well as custom for special requirements. It can be fabricated into stair treads, walkways and planks of commercial and industrial facilities and job-sites. Related accessories are provided separately.
Features & benefits
- Unique combination of large debossed holes and perforated buttons provides maximum slip resistance in every direction.
- Adaptable for outdoor or indoor applications.
- Not as aggressive as diamond strut safety grating.
- High strength-to-weight, high load capacity and long life span.
- Easy to handle weight make installation simple and fast.
Material of Perforated Grip Strut Safety Grating
|
|
Common specifications Sheet O-grip Safety Grating
| 2 Holes 5" Width | |||
| Material | galvanized steel | Aluminum | Stainless |
| Gauge | 13Ga. | 0.125” | 16Ga, 14Ga |
| Channel Depth | 1-1/2", 2" | 2" | 2" |
| Width | 5" | 5" | 5" |
| Hole number | 2 Holes | 2 Holes | 2 Holes |
| 3 Holes 7" Width, 5 Holes 10" Width, 6 Holes 12" Width, 10 Holes, 18" Width | ||||
| Material | galvanized steel | Aluminum | Stainless | |
| Gauge | 13Ga, | 11Ga | 0.125” | 16Ga, 14Ga |
| Channel Depth | 1-1/2", 2" | 1-1/2", 2", 3" | 2" | 2" |
| Width | 7", 10", 12", 18" | 7", 10", 12" | 7", 10", 12", 18" | |
| Hole number | 3, 5, 6, 10 Holes | 3, 5, 6 Holes | 3, 5, 6, 10 Holes | |
| 13 Holes, 24", 16 Holes, 30" Width | ||
| Material | galvanized steel | galvanized steel |
| Gauge | 11Ga. | 11Ga |
| Channel Depth | 2", 3" | 2", 3", 4" |
| Width | 24" | 30" |
| Hole number | 13 Holes | 16 Holes |
Reference Photos
 |
 |
 |

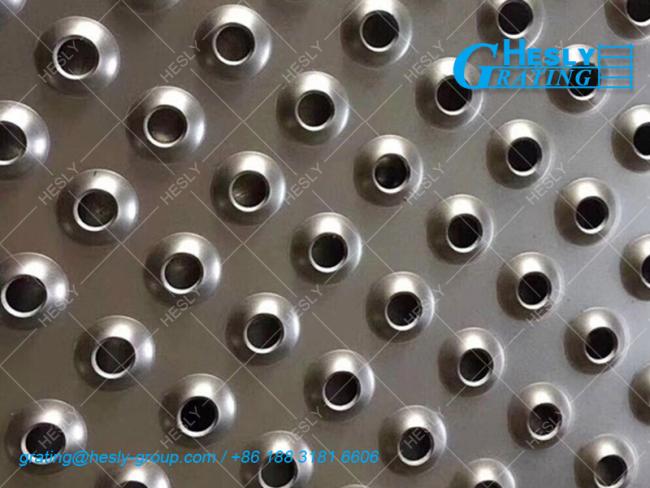

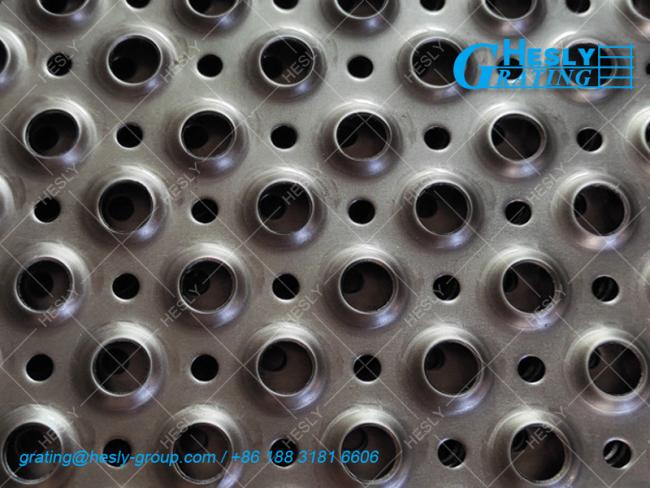

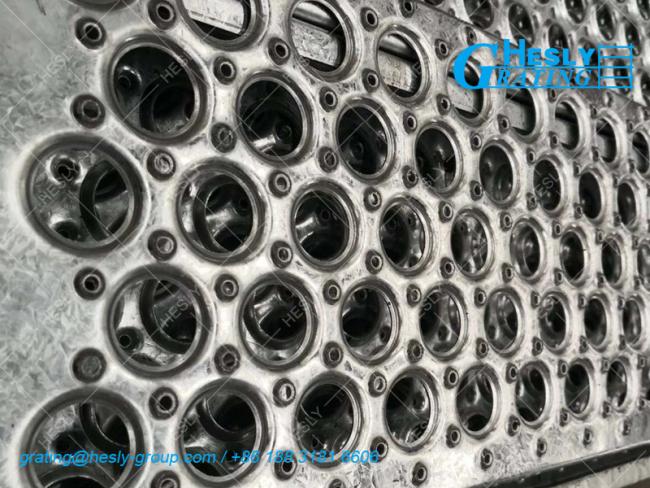

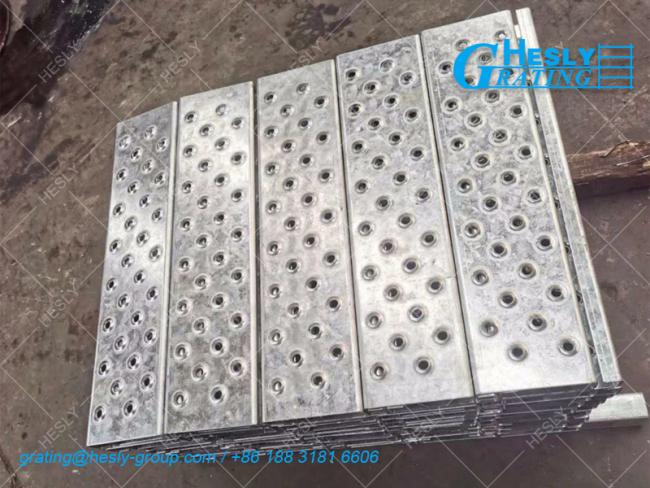

| O-Grip Strut Safety Grating China factory | O-Grip Safety Grating Plank China factory | Plank Safety Grating Hesly |
 |
 |
 |

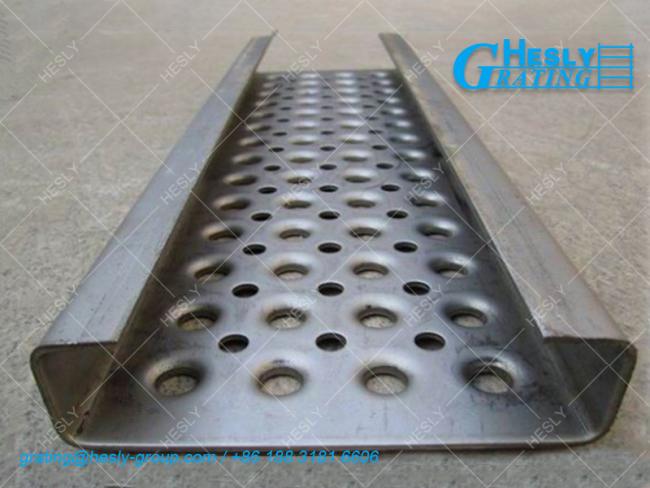

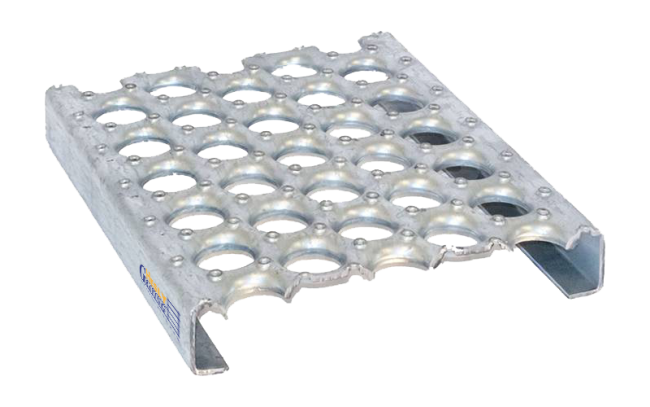

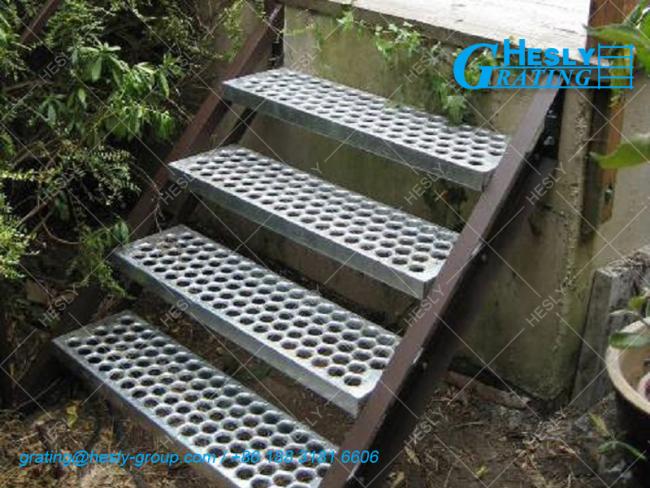

| O-grip Strut Safety Grating Plank | Plank Safety Grating Tread | Strut Grip Safety Grating Channel |
