Steel Grating Fencing | 25X3mm flat bar | 60X150mm hole | High 1.5m | Width 2.5m | HeslyGrating China factory

Price Negotiable
Price: US$8.5-US$28.00/L.M
MOQ: 100L.M
Delivery Time: 15days/40' container
Brand: HESLY
Product Description

Steel Grating Fencing | 25X3mm flat bar | 60X150mm hole | High 1.5m | Width 2.5m | HeslyGrating China factory

Metal Grating Fencing China supplierMetal grating fencing combines an attractive appearance with the strength and rigidity needed for high-security applications. The secure connections between grating panels make it ideal for areas requiring protection from intruders. Metal grating fencing can be customized and fabricated to fit any site, ensuring a precise match to the location's dimensions.

Material: high quality low carbon steel
Types: plain bar as standard.
Finishes: Hot Dipped Galvanised, Polyester Powder Coated
Application:
galvanized steel grating are widely used by various plants such as electric power,petroleum,chemical industry,metallurgy industry,machinery industry,shipbuilding, harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.

Commen Specifications



HESLY Metal Grating Fencing

HESLY STEEL GRATING FENCE
Material Carbon Steel Q195, Q235 etc
Fence Height H1000mm / H1200mm / h1500mm / H1800mm / H2100mm / H2400mm / H2500mm
Fence Width W2000mm / W2400mm / W2500mm
Flat Bar 25×2mm / 25×3mm / 30×3mm / 30×5mm / 40×3mm / 40×5mm
Cross Rod Φ6.0mm; φ8.0mm
Hole Size 30×100mm / 40×120mm / 50×50mm / 50×150mm / 65×130mm

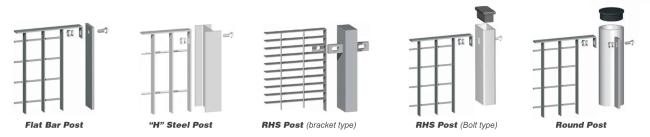

Post SHS50 / SHS60 / RHS40×60 / Flat Steel 50×8; 60×10;80×10mm (depending on height)
Optional Top Single Barbed Wire Arm and “V” Barbed Wire Arm
Accessories Carriage Bolts, Nuts & Washers
Finish Hot Dipped Galvanised; Powder Coated; HDT+Powder Coated

Reference Photos - Metal Grating Fencing
Metal Grating Fencing China supplier Steel Grating Fence China factory sales Metal Grating Fencing China exporter
Metal Grating Fencing Chinese factory Metal Grating Fence China supplier Steel Grating Fence HESLY



Package and Delivery

Metal Grating Fencing China Metal Grating Fence HESLY CHINA Metal Bar Grating Exporter
Metal Grating Fencing Steel Grating Fence with Top security Spikes Container Loading



How to Order Hesly Steel Bar Grating Products ?

Just let us know below the information marked on the drawing.


Hesly Welded Bar Grating China Factory supplier

Required Information for a formal quotation


  • Material: Mild Carbon, 304/316 stainless steel, Aluminium
  • Dimension: Width X Span (length of the bearing bar)
  • Bearing Type: Flat or Serrated
  • Bearing Bar (Depth X Thickness)
  • Spacing of the bearing bars
  • Cross Bar Diameter & style (squre twisted or round bar)
  • Cross Bar Pitch
  • With End bands or Not
  • Finish: galvanized, powder or PVDF
  • QUANTITY (very important for the cost)
  • If need C.F.R offer, just let us the Destination Sea Port.
