HESLY Metal Bar Grating is able to support heavier loads than plank grating, bar grating is good for trenches, mezzanines, walkways, work platforms, and floors. This grating has an open design that allows air, light, and debris to flow through. Cross bars hold the bearing bars in place; bearing bars help distribute weight and must rest on supports. Use Fasteners for Metal Bar Grating to secure.
Type of Bearing Bars
 |
 |
 |
 |
| Plain Bearing Bar | Serrated Bearing Bar | "I" Type Bearing Bar | "I" serrated Bearing Bar |
Carbon Steel Finish Options
 |
 |
 |
 |
|
Bare Steel Mill finished carbon steel bars without additional coating. Will show discolorationfrom welding and fabrication. Subject to rusting. |
Hot Dip Galvanized Zinc coating applied in accordance with ASTM A123. Provides long lasting corrosion resistance.
|
Powder Coating One coat of HeslyGratings' standard coating. Stand colors are green, black, red, and blue etc. |
Other Finishes: PVDF etc Specialty coatings may be specified in a wide range of colors. painting, or epoxy paints. |
Load Capacity of Heavy Duty Steel Grating
| Important ! The charge-capacity at the grating is determined by the height and thickness of the bearing-bars (=supporting-bars). The bearing-bar must always be supported. Therefore, the bearing-bar is in all our documents = first dimension. Cross-bars and bordering off the grid contribute to the stability. |
 |
Common Specifications Sheet - HESLY Steel Grating
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Reference Photos - HESLY Steel Bar Grating
 |
 |
 |
| Welded Bar Grating Factory | Heavy Duty Steel Grating Supplier | HESLY Metal Bar Grating |
 |
 |
 |
|---|---|---|
| Steel Grating Clips | Steel Bar Grating Clips | Steel Grating Clips |

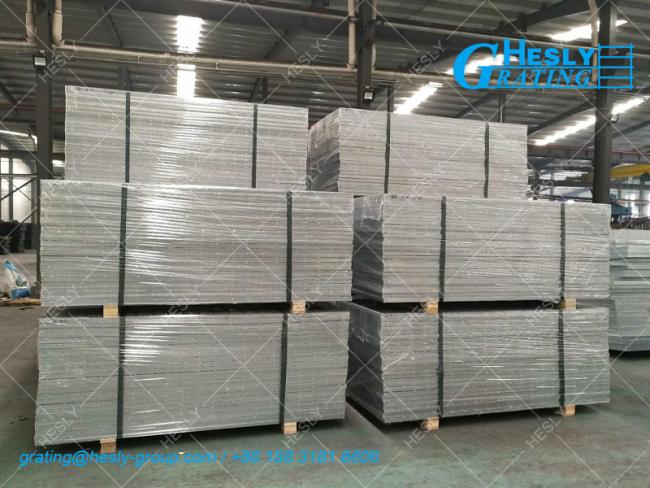

Package and Delivery
 |
 |
 |
| Hot Dipped Galvanised Bar Grating | Welded Bar Grating Exporter | Container Loading |
How to Order Hesly Steel Bar Grating Products ?
Just let us know below the information marked on the drawing.
 |
Required Information for a formal quotation
|
Contact us for a FREE prompt quotation !
 |
