Carbon Steel Swage Locked Grating ASTM A123 Welded Steel Bar Grating
Hot Dipped Galvanized Welded Steel Bar Grating
Welded Steel Bar Grating is the workhorse of the industrial flooring market and has served industry for decades.Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.
Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; mild carbon steel, 6000 series aluminum, and 300 series stainless steels.
A).Type of Grating
 |
 |
 |
 |
| Plain Bearing Bar | Serrated Bearing Bar | "I" Type Bearing Bar | "I" serrated Bearing Bar |
Common Specification Sheet - Standard Steel Bar Grating
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

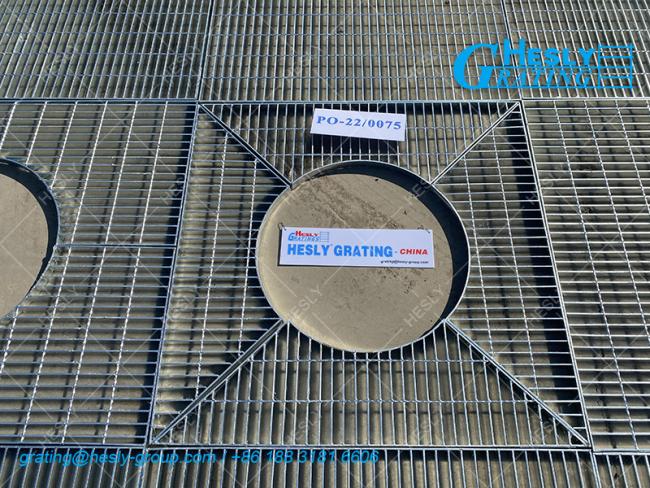

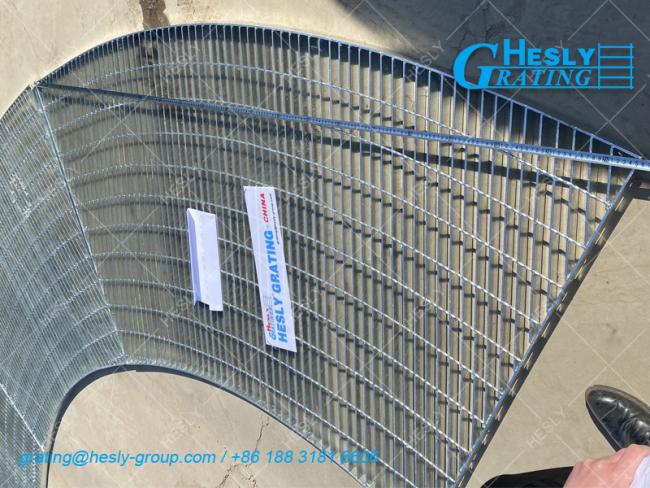

Reference Photos
 |
 |
 |
| Serrated Steel Bar Grating (China Factory) | Metal Serrated Bar Grating | Serrated Bar Grating Supplier |
 |
 |
 |
| Forge Welded Bar Grating Factory | HD Galvanised Forge Welded Bar Grating | Serrated Bar Grating |
 |
 |
 |
|---|---|---|
| Steel Grating Clips Type A | Steel Grating Clips Type B | Saddle Clips |
Package and Delivery
 |
 |
 |
| China Steel Grating Factory | Forge Welded Bar Grating China Factory | Welded Bar Grating Supplier |
| Carbon Steel / Stainless Steel / FRP grating factory sales | |
 |
