Narrow Opening Welded Steel Grating, 20X100mm, Hot Dipped Galvanized 80 micron, Q235
Narrow Opening Steel Bar Grating - China Factory
Narrow openings give this grating a higher load bearing surface than our standard metal bar grating and reduce the chance of something falling through. Able to support heavier loads than plank grating, bar grating is good for trenches, mezzanines, walkways, work platforms, and floors. It has an open design that allows air, light, and debris to flow through. Cross bars hold the bearing bars in place; bearing bars help distribute weight and must rest on supports. Use Fasteners for Metal Bar Grating to secure.
Type of Bearing Bars
 |
 |
 |
 |
| Plain Bearing Bar | Serrated Bearing Bar | "I" Type Bearing Bar | "I" serrated Bearing Bar |
Carbon Steel Finish Options
 |
 |
 |
 |
|
Bare Steel Mill finished carbon steel bars without additional coating. Will show discolorationfrom welding and fabrication. Subject to rusting. |
Hot Dip Galvanized Zinc coating applied in accordance with ASTM A123. Provides long lasting corrosion resistance.
|
Powder Coating One coat of HeslyGratings' standard coating. Stand colors are green, black, red, and blue etc. |
Other Finishes: PVDF etc Specialty coatings may be specified in a wide range of colors. painting, or epoxy paints. |
Load Capacity of Heavy Duty Steel Grating
|
Important ! |
 |
Materials & Finishes
Heavy duty gratings are manufactured in carbon steel and 300 series stainless steels. Carbon steel products are available bare (no finish), painted with manufacturers standard paint, or hot dip galvanized. Stainless steel products are available mill finish, commercially cleaned or electro-polished.
Common Specifications Sheet - HESLY Steel Grating
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

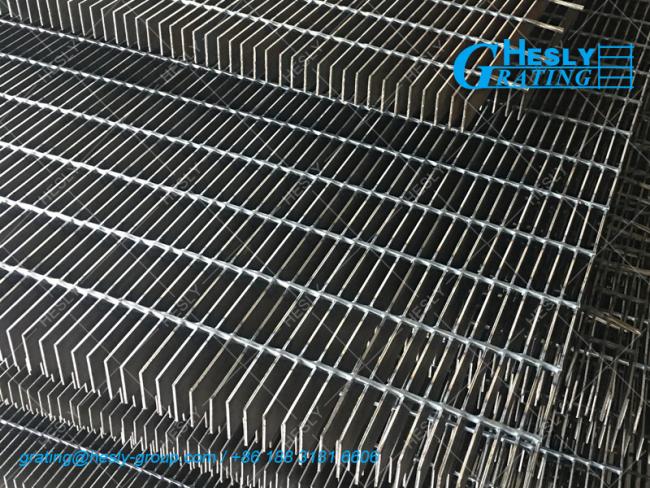

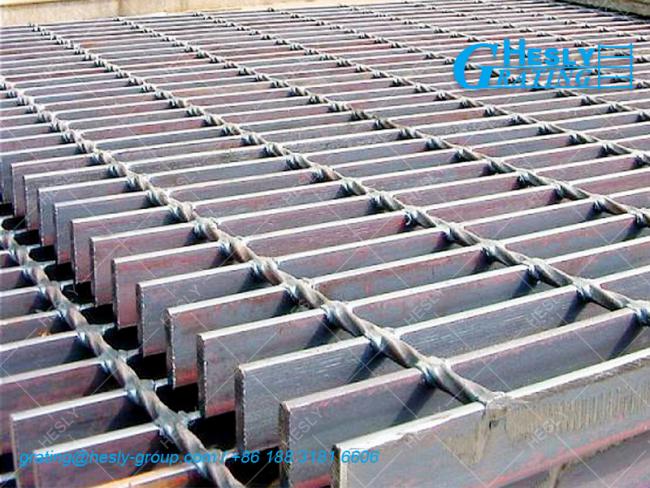

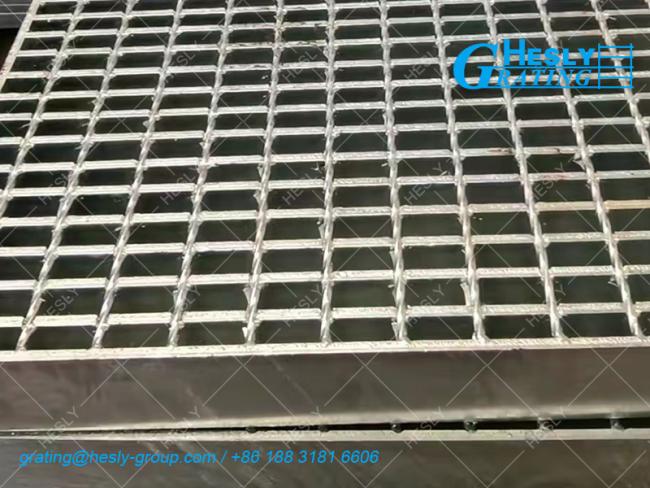

Reference Photos - HESLY Bar Grating Sair Treads
 |
 |
 |
| Welded Bar Grating Supplier | Narrow Opening bar grating China | Narrow Pitch Metal Bar Grating |

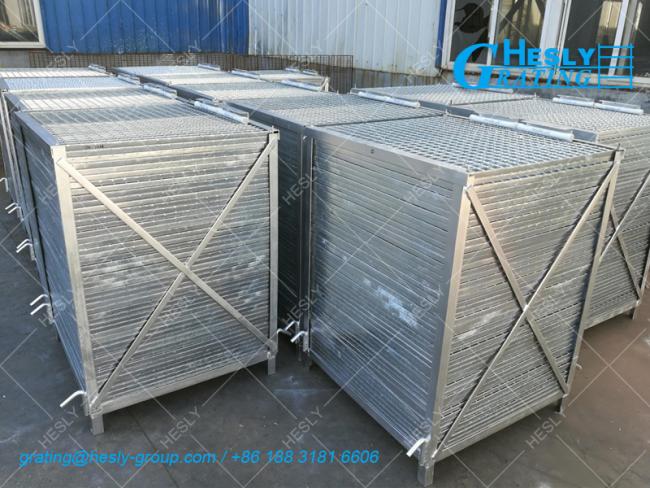

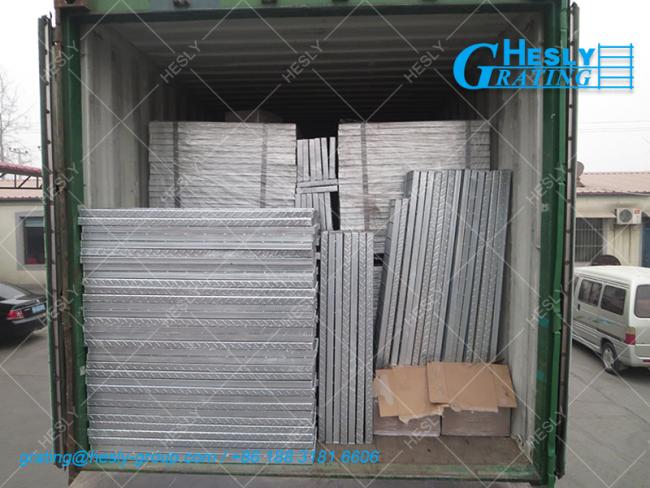

Package and Delivery
 |
 |
 |
| Welded Bar Grating Supplier | HESLY Steel Bar Grating | Container Loading |
