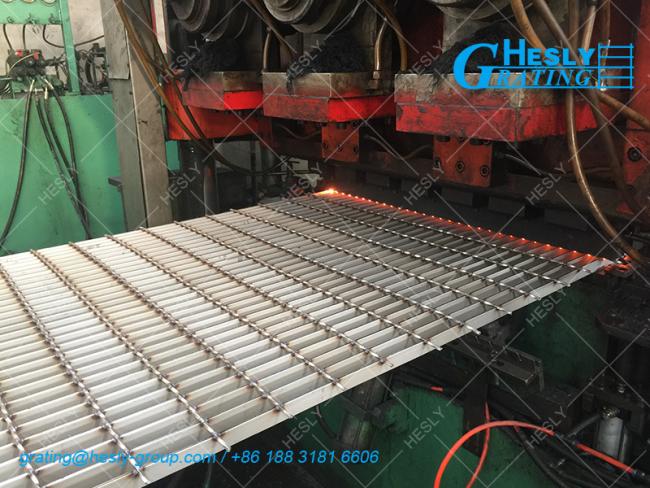

Stainless steel grating has been the standard industrial footwalk product for severe corrosive environments and has been a popular grating choice for many years. HESLY Stainless Steel Grating is manufactured from alloy types 304, 304L, 316 and 316L and available in grating types welded bar grating and pressure locked grating. Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at 4" or 2" on center. Each product is available with standard plain or optional serrated surface and finish options are diverse and should be closely considered.
Stainless Steel Finishes
 |
 |
| Mill Finish - Stainless Steel Material Mill finish stainless steel bars will show discoloration from welding, cutting, and grinding. Satisfactory for industrial applications where appearance is not a consideration. |
Electro-Polished A bright chrome-like appearance achieved by immersion in chemicals that clean and “polish” the base metal. |
Common Specifications - Welded Bar Grating
|
Series |
Pitch of Bearing bar |
Cross-bar Pitch |
Specification of bearing bar load width×thickness |
|||||
|
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
|||
|
1 |
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
|
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
||
|
2 |
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
|
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
||
|
3 |
60 |
50 |
|
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
|
Series |
Pitch of Bearing bar |
Cross-bar Pitch |
Specification of bearing bar load width×thickness |
|||||
|
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
|||
|
1 |
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
|
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
||
|
2 |
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
|
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
||
|
3 |
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
Reference Photos - HESLY Steel Bar Grating
 |
 |
 |
| AISI304 Steel Grating China Factory | 304 Pressure Locked Grating Supplier | 316 Welded Bar Grating Factory Sales |
 |
 |
 |
|---|---|---|
| Steel Grating Clips | Steel Bar Grating Clips | Steel Grating Clips |
Package and Delivery
 |
 |
 |
| AISI304 Welded Bar Grating Exporter | Welded Bar Grating Manufacturer | Container Loading |
How to Order Hesly Steel Bar Grating Products ?
Just let us know below the information marked on the drawing.
 |
Required Information for a formal quotation
|
Contact us for a FREE prompt quotation !
 |
