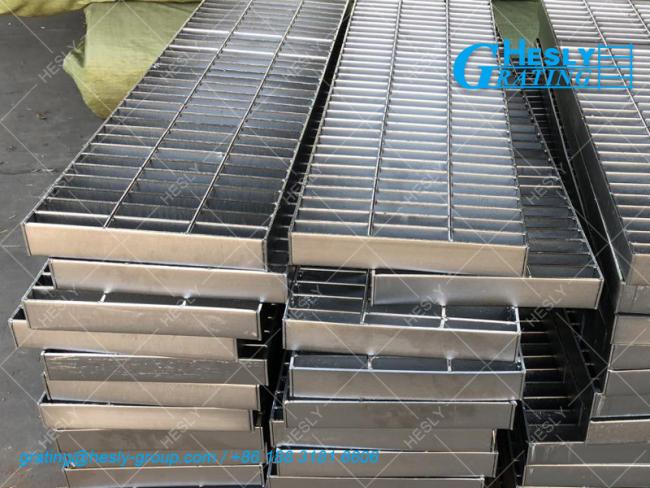

316L stainless steel serrated bar grating, Press Locked Grating
316L Stainless Steel Grating/316L Bar Grating
Stainless Steel Bar Grating is manufactured from alloy types 304, 304L, 316 and 316L and available in grating types "WS" (welded stainless grating), "DTS" (dovetail stainless pressure locked) and "SLS" (swage locked stainless). Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at 4" or 2" on center. Each product is available with standard plain or optional serrated surface and finish options are diverse and should be closely considered.
Type "WS" Welded Stainless Steel Grating
Type "DTS" Dovetail Pressure Locked Stainless
Type "SLS" Swage Locked Stainless
tainless steel grating has good corrosion resistance, so ti is widely used in severe corrosive environments, just like chemical industry, food processing industry and offshore oil drilling platform. Stainless steel grating is available in forge welded or press locked with many load bar sizes. The most common material is SUS304, however SUS316 or SUS316L is also available. 304 stainless steel provide excellent balance resistance and workability. 316 stainless steel is better corrosion, pitting resistance and higher strength at elevated temperatures. 316L is extra low carbon variation of 316 to avoid carbide precipitation due to weld.
Stainless Steel Finishes
 |
 |
| Mill Finish - Stainless Steel Material Mill finish stainless steel bars will show discoloration from welding, cutting, and grinding. Satisfactory for industrial applications where appearance is not a consideration. |
Electro-Polished
|
Common Specifications - Welded Bar Grating
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Reference Photos - HESLY Steel Bar Grating
 |
 |
 |
| AISI304 Steel Grating China Factory | 304 Pressure Locked Grating Supplier | 316 Welded Bar Grating Factory Sales |
 |
 |
 |
|---|---|---|
| Steel Grating Clips | Steel Bar Grating Clips | Steel Grating Clips |
Package and Delivery
 |
 |
 |
| AISI304 Welded Bar Grating Exporter | AISI316 Bar Grating Manufacturer | Container Loading |
How to Order Hesly Steel Bar Grating Products ?
Just let us know below the information marked on the drawing.
 |
Required Information for a formal quotation
|
Contact us for a FREE prompt quotation !
 |
