Stainless Steel Bar Grating is manufactured from alloy types 304, 304L, 316 and 316L and available in grating types welded stainless grating, and pressure locked stainless. Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 25mm to 100mm on center and with cross bars at 50mm or 100mm on center. Each product is available with standard plain or optional serrated surface and finish options are diverse and should be closely considered.
Stainless Steel Finishes
 |  |
| Mill Finish - Stainless Steel Material Mill finish stainless steel bars will show discoloration from welding, cutting, and grinding. Satisfactory for industrial applications where appearance is not a consideration. | Electro-Polished |
Common Specifications - Welded Bar Grating
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
| 1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
| 2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
| 3 | 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load width×thickness | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
| 1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
| 2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
| 3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Reference Photos - HESLY Steel Bar Grating
 |  |  |

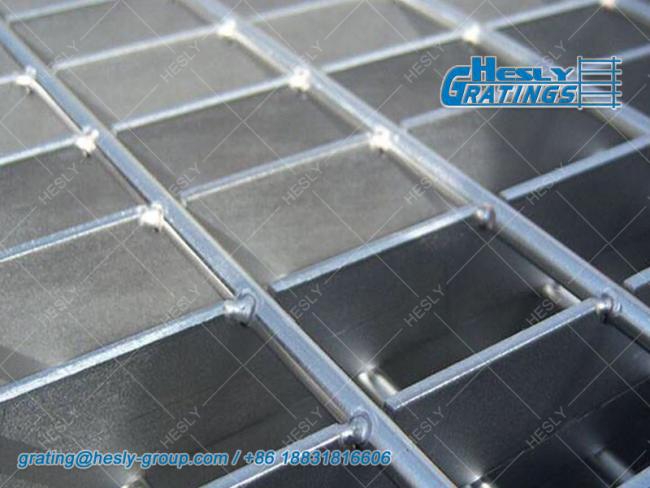

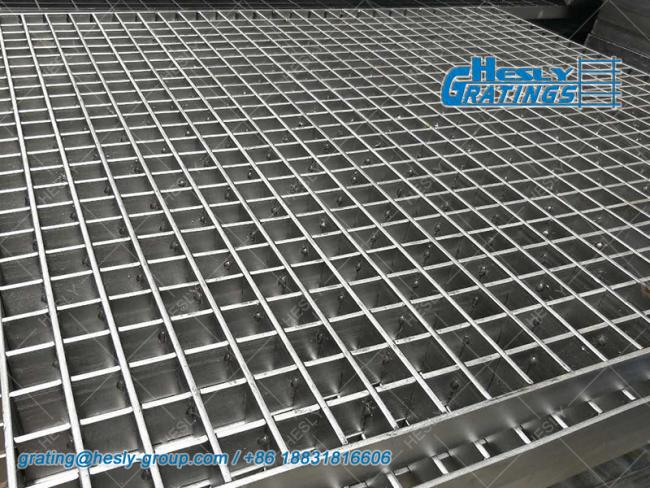

| AISI304 Steel Grating China Factory | 304 Pressure Locked Grating Supplier | Stainless steel 316 welded grating |
 |  |  |
|---|---|---|
| Steel Grating Clips | Steel Bar Grating Clips | Steel Grating Clips |
Package and Delivery
 |  |  |
| AISI304 Welded Bar Grating Exporter | Welded Bar Grating Manufacturer | Container Loading |
How to Order Hesly Steel Bar Grating Products ?
Just let us know below the information marked on the drawing.
 | Required Information for a formal quotation
|
Contact us for a FREE prompt quotation !
