—— —— a wide range of colors and sizes available at the best prices
Molded Fiberglass grating in Square mesh is the most popular pattern of molded frp grating,it's widely used as flooring,walkways,platforms in many industries over a wide span of aggressive and corrosive environments.
HeslyGrating offers a choice of five resin systems for fiberglass moulded grating to accommodate different requirements of each custom application, all MaxGrate resin systems have a class 1 flame spread rating of 25 or less per ASTM E-84.
| Resin Type | Resin Base | Description | Corrosion Resistence | Flame Spread Rating | Usage Temp |
| O | Orthophthalic Polyester | Morderate Grade Corrosion Resistance Fire Retardant | Good | Astm E-84 Class 1 25 Or Less | -50-60 |
| I | Isophthalic Polyester | Industrial Corrosion Resistance Fire Retardant |
Very Good | Astm E-84 Class 1 25 Or Less | -50-90 |
| IF | Isophthalic Polyester | Food Grade Corrosion Resistance Fire Retardant | Very Good | ASTM E-84 Class 1 25 Or Less | -50-90 |
| V | Vinyl Ester | Superior Corrosion Resistance Fire Retardant | Excellent | ASTM E-84 Class 1 25 Or Less | -50-110 |
| VH | Vinyl Ester | Superior Corrosion Resistance High Fire Retardant | Excellent | ASTM E-84 Class 1 10- Or Less | -50-110 |
| Material used: - Continuous fibreglass E-glass direct roving. - Five resin systems for option to meet your applications. - AL(OH)3 powder as the stuffing material to flame retardant |
|||||
Features of HESLY FRP Grating
- Excellent Corrosion and Chemical Resistance
- Great tensile strength and impact resistance
- Slip resistance
- Light weight
- Fire Retardant
- Electric insulation
- Esay installation and facrication
- Anti-aging and Long life service
- Beautiful and colorful for option
- Low maintenance
Standard FRP Grating Surface
When the panel naturally cured, the surface shall have a concave surface for slip resistance. A standard grit surface is made through a secondary operation by sanding slica sand on the top surface of grating to provide long lasting slip resistant surface.
 |
 |
| Smooth Surface The smooth surface grating is flat and non slid resistance |
Sanding/Gritted Surface FRP gratings with sanding surface have super anti-slip characteristic |
HeslyGrating FRP Covered Grating is a one-piece molded grating, combing the solid surface of plate on the top of molded grating. Covered grating is ideal for applications where require no open mesh of the grating. Whether over a food process or for reducing fumes and odors, covered grating meets the needs for solid surface decking that is both corrosion resistant and slip resistant. It is also used in areas where cart wheels or shoe heels might have difficulty if over standard open mesh grating.
Covered grating is available in a variety of thickness. Standard plate thickness is 3mm, other thickness is available as per customer's special request.
 |
 |
| Decorative Checker Plate The decorative pattern surface makes the FRP gratings anti-skid and more beautiful. |
Gritted Top Cover The gritted top covered surface can not only anti skid but also enhance the strength. |
Rich Color For Option
HeslyGrating offers wide color selections for FRP molded grating as well as covered grating. The followings are some of the most popular colors that we may have stock and keeping continuously production. We can closely match any color in the Ral Color Chart Page or provided color chips.
Reference Photos
 |
 |
 |

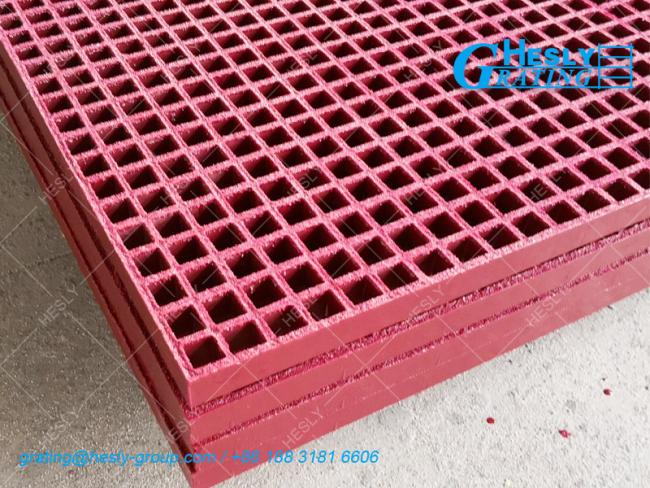

| Phenolic Molded FRP Grating | Phenolic Molded FRP Grating | Phenolic Molded FRP Grating |
