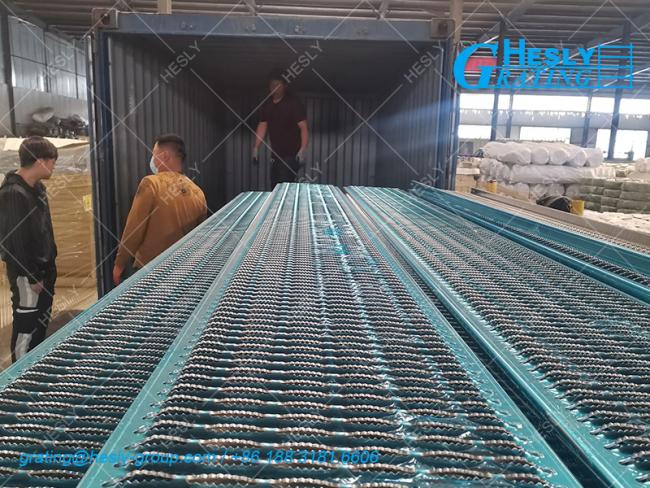

![Grip Strut Safety Grating]()
Non-slip Safety Grating & Stair Treads
Non-slip Safety Grating & Stair TreadsNon-slip safety metal grating helps reduce accident rates by providing a safer walking-working surface more than any other available grating product. Hesly's safety grating serrated surface gives maximum slip protection and performance on steel flooring and stair treads under practically all conditions and in every direction.
The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris.
Hesly's safety grating is used to create non-slip walkways, steel flooring and stair treads. These planks have a high strength-to-weight performance, which ensures a high load capacity and long life. As safety treads, Hesly serrated surfaces grip the soles of work boots, reducing on-the-job accidents on stairways.
No matter what your application is, we have the perfect safety grating solution: Regular, Heavy Duty, Walkway, & Stair Treads.
Safety First
Safety grating is recommended for companies who are concerned with their work safety. Perforated safety grating is a metal grating type that is used to improve the surface traction. To improve the traction, the perforated stair treads has small diamond shape-like protrusion in its surface finish. The protrusion increases the grip that prevents any slip and fall accident from happening.
Safety grating also has plenty of open surfaces. This allows free air flowing and proper drainage, preventing water or any liquid from building up that can lead to safety hazards or slips.
Common specifications:
- Channel height available: 2”,2 1/2”,3”,4”,5”(walkway)
- Steel gauge: 9GA,10GA,11GA
- Channel width: 9 1/4”,13 3/4”,27 4/7”,30”,36”
- Standard Length: 10’,12’
- Material: Aluminum,Stainless Steel,Galvanized Steel,Black HRPO,etc
- Popular type:2-Diamond,3-Diamond,5-Diamond,6-Diamond,8-Diamond,etc
| Material | Thickness | Channel width-diamond No. | Bending height | Folding | Length |
|
carbon steel
galvanized
stainless steel
aluminum |
2.0mm
2.5mm
3.0mm
3.5mm |
4 3/4" - 2 Diamond Holes |
40mm 45mm 50mm 55mm ..... 100mm |
|
|
| 7" - 3 diamond holes | |||||
| 9 1/2" - 4 diamond holes | |||||
| 11 3/4" - 5 diamond holes | |||||
| 14 1/2" - 6 diamond holes | |||||
| 17" - 7 diamond holes | |||||
| 18 3/4" - 8 diamond holes | |||||
| 21 1/2" - 9 diamond holes | |||||
| 24" - 10 diamond holes |
Material of Perforated Grip Strut Safety Grating
|
|
|
|
Reference Photos
 |
 |
 |
| Grip Strut Safety Grating China factory | Grip Safety Grating Plank China factory | Plank Safety Grating Hesly |
 |
 |
 |
| Shark Mouth Safety Grating | Plank Safety Grating Tread | Strut Grip Safety Grating Channel |
Pacakge and Delivery
 |
 |
 |
| Perforated Safety Grating | Plank Safety Grating Factory | Strut Grip Safety Grating |
