Stainless Steel 316 grade Welded Bar Grating | 30x5mm Bearing Bar | 30X100mm hole
Stainless Steel 316 grade Welded Bar Grating
Stainless steel grating has been the standard industrial footwalk product for severe corrosive environments and has been a popular grating choice for many years. HeslyGrating manufactures stainless steel welded & swaged bar grating from type 304 and 316 stainless steel bar. Stainless steel grating is used at chemical plants, food processing facilities, oil and gas producers and is also used in many other commercial and architectural applications.
Stainless Steel Finishes
Common Specifications
|
Series |
Pitch of Bearing bar |
Cross-bar Pitch |
Specification of bearing bar load width×thickness |
|||||
|
20×3 |
25×3 |
32×3 |
40×3 |
20×5 |
25×5 |
|||
|
1 |
30 |
100 |
G203/30/100 |
G253/30/100 |
G323/30/100 |
G403/30/100 |
G205/30/100 |
G255/30/100 |
|
50 |
G203/30/50 |
G253/30/50 |
G323/30/50 |
G403/30/50 |
G205/30/50 |
G255/30/50 |
||
|
2 |
40 |
100 |
G203/40/100 |
G253/40/100 |
G323/40/100 |
G403/40/100 |
G205/40/100 |
G255/40/100 |
|
50 |
G203/40/50 |
G253/40/50 |
G323/40/50 |
G403/40/50 |
G205/40/50 |
G255/40/50 |
||
|
3 |
60 |
50 |
|
G253/60/50 |
G253/60/50 |
G403/60/50 |
G205/60/50 |
G255/60/50 |
|
Series |
Pitch of Bearing bar |
Cross-bar Pitch |
Specification of bearing bar load width×thickness |
|||||
|
32×5 |
40×5 |
45×5 |
50×5 |
55×5 |
60×5 |
|||
|
1 |
30 |
100 |
G325/30/100 |
G405/30/100 |
G455/30/100 |
G505/30/100 |
G555/30/100 |
G605/30/100 |
|
50 |
G325/30/50 |
G405/30/50 |
G455/30/50 |
G505/30/50 |
G555/30/50 |
G605/30/50 |
||
|
2 |
40 |
100 |
G325/40/100 |
G405/40/100 |
G455/40/100 |
G505/40/100 |
G555/40/100 |
G605/40/100 |
|
50 |
G325/40/50 |
G405/40/50 |
G455/40/50 |
G505/40/50 |
G555/40/50 |
G605/40/50 |
||
|
3 |
60 |
50 |
G325/60/50 |
G405/60/50 |
G455/60/50 |
G505/60/50 |
G555/60/50 |
G605/60/50 |
Reference Photos - Stainless Steel Grating
 |
 |

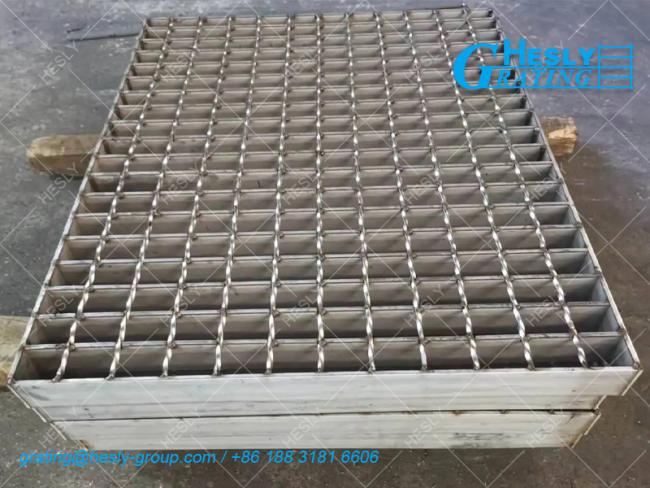

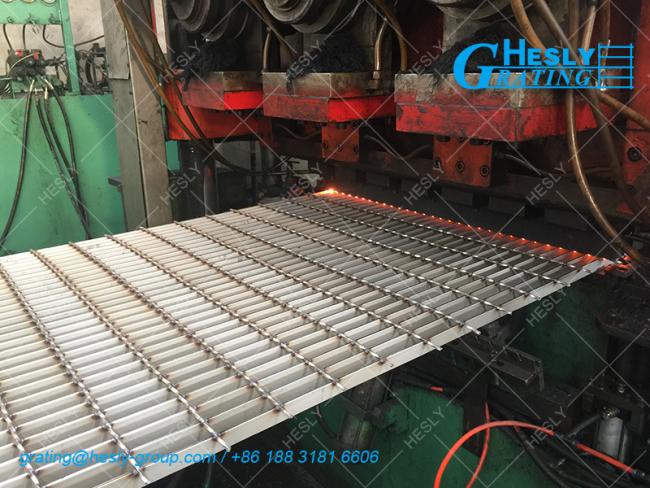

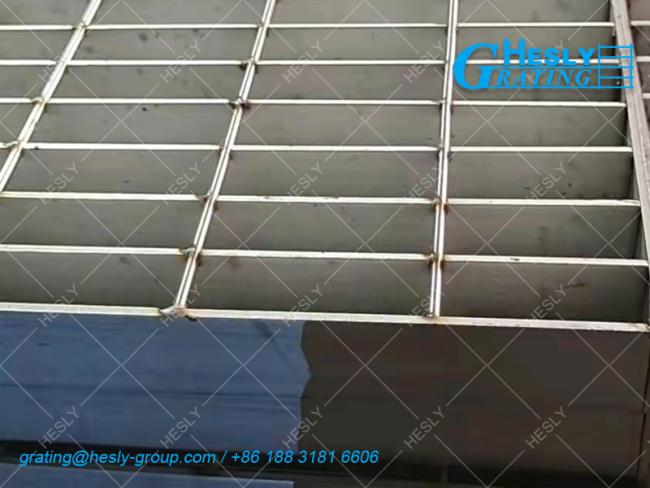

| AISI316 Steel Grating Factory | AISI316 Welded Bar Grating |
 |
 |

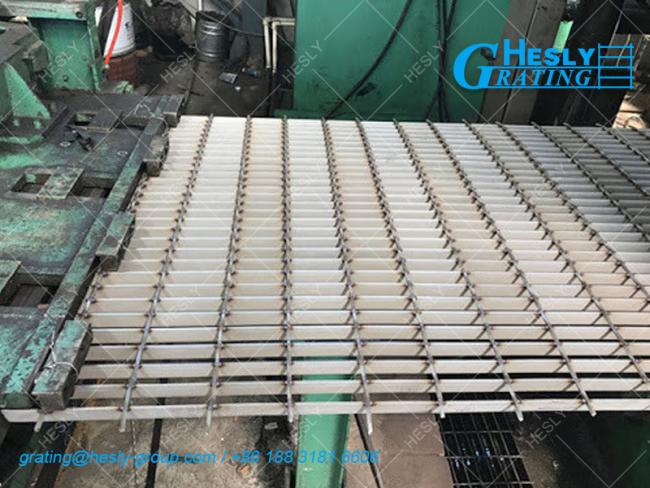

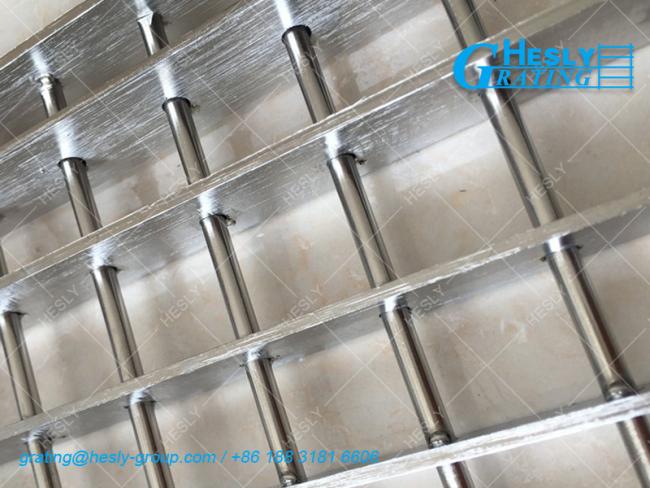

| 304 Pressure Locked Grating | Stainless Steel Grating Factory |

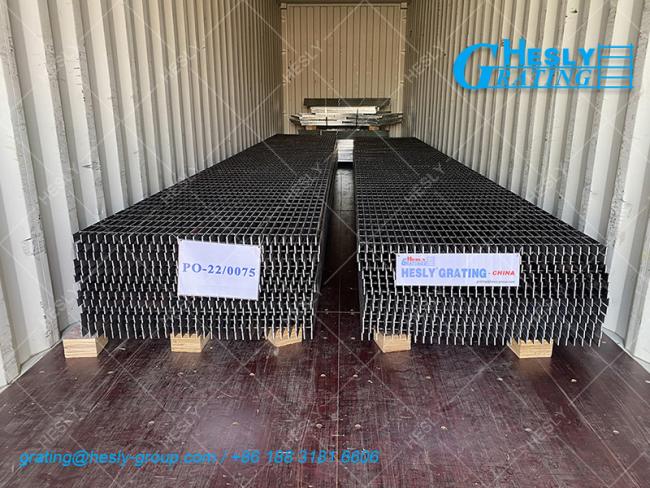

Package and Delivery
 |
 |
| China Steel Grating Factory | Welded Bar Grating Supplier |
| Carbon Steel / Stainless Steel / FRP grating factory sales | |
 |
