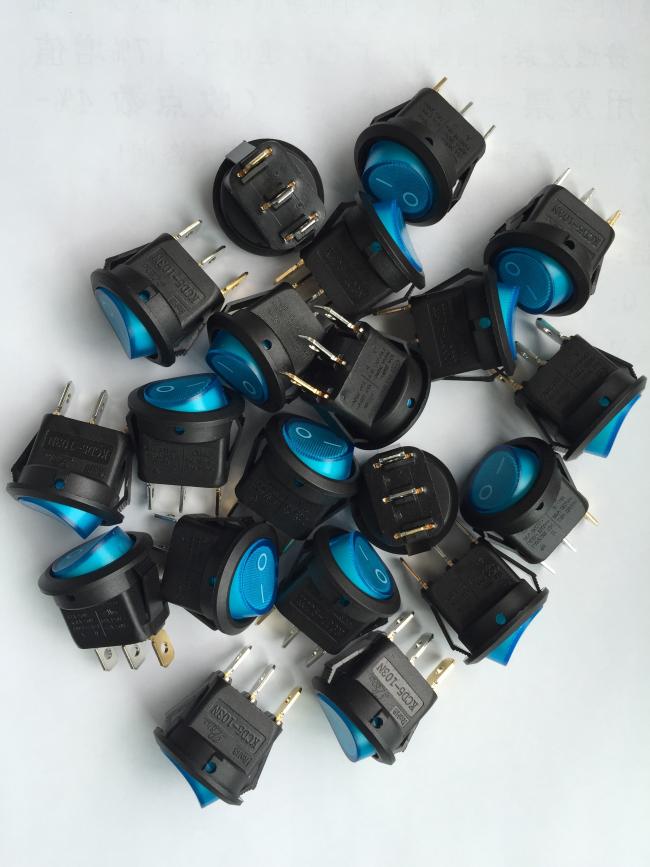

Rocker switch,Round switch,ON-OFF Switch with lamp or without lamp;AC power switch,UL .TUV Switch, 3Pin or 2Pin switch
Price:
USD0.2/PC
MOQ:
5000PCS
Delivery Time:
5-8 work days
Brand:
LSHX
Product Description
Rocker switch,Round switch,Switch,AC power switch,ON-OFF Switch with lamp or without lamp,3Pin or 2Pin switch

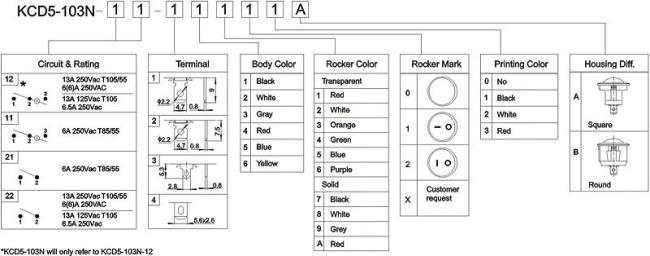

Type: KCD5-103N
Andywang198404 at foxmail.com / Andy at conaytech.com
DESCRIPTION
●Lamp indicated switch
●Single pole single throw
●Rated Voltage and Amps.
13A 6(6)A 250V~,T105/55
6A 250Vac T85/55
6A 250Vac,10A 125VVac
●Certificate:ULcUL,TUV,CQC
●Temperature limits :85℃ Max.
●Dielectric strength:2500Vac
●Insulation resistance:＞100MΩ
●Operation cycles:10000cycles
●Contact resistance:＜ 50mΩ
●Resistance to tracking(PTI):175V
●Class of appliance:Ⅱ
●Degree of protection:IPOO
