1310nm 1550nm WDM Fiber Optic Circulator Cir-3P-55-LCU-ABS LC To LC LC To SC 3port
Fiber Optical Circulator Cir-3P-55-LCU-ABS LC to LC LC to SC 3port 1310nm 1550nm
General
An optical circulator is a special optical passive component that can be used to separate optical powers that travel in opposite directions in one single optical fiber, analogous to the operation of an electronic circulator. An optical circulator is a three-port device that allows light to travel in only one direction - from port 1 to port 2, then from port 2 to port 3. This feature is very important to optical bidirectional transmission and communication. Usually, it was use for optical transceiver, FBG(fiber Bragg grating) filter and optical amplifier.
Features
High Channel Isolation
Low Insertion Loss
High Return Loss
Low PDL
High Stability and Reliability
Applications
Optical Amplifier
CATV Optical Link
Optical System testing
LAN
Broadcast Communication
Order Information
| Product | Port | Centre Wavelength | Grade | Pigtail Type | Fiber length | Connector Type |
| Optical Circulator | 3=3 Port |
13=1310nm 15=1550nm 16=1585-1640nm C&L=1525-1610nm |
P= Grade P A=Grade A |
A=250um bare fiber B=900um Loose tube C=2.0mm loose tube D=3.0mm loose tube |
1=1m 1.5=1.5m 2=2m .... Others |
0=None 1=FC/APC 2=FC/PA 3=SC/APC 4=LC/PC 5=LC/APC 6=SC/PC 7=others |

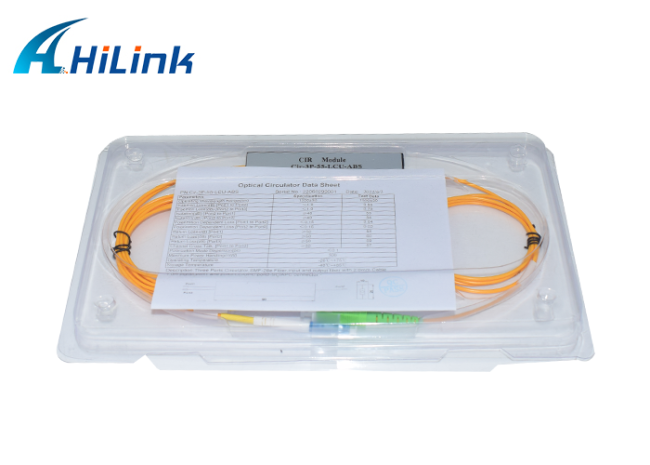

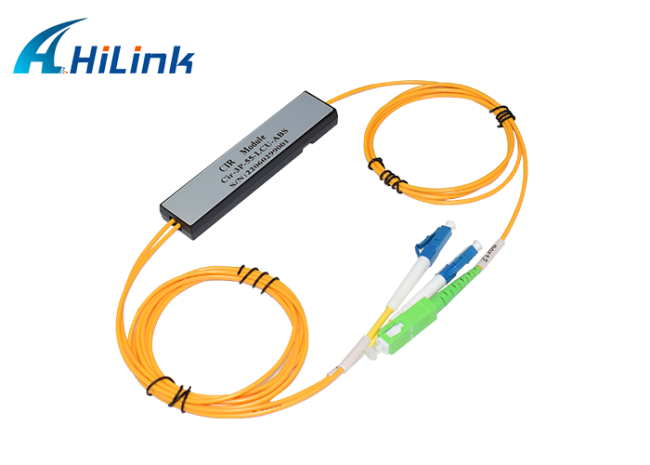

Product Picture shows
Our factory shows
