400G Breakout DAC Direct Attach Cable QSFP-DD To 4*QSFP28 100G 0.5M To 3M

400G QSFP-DD to 4*QSFP28 100G Breakout DAC Direct Attach Cable 0.5M to 3M

General Description

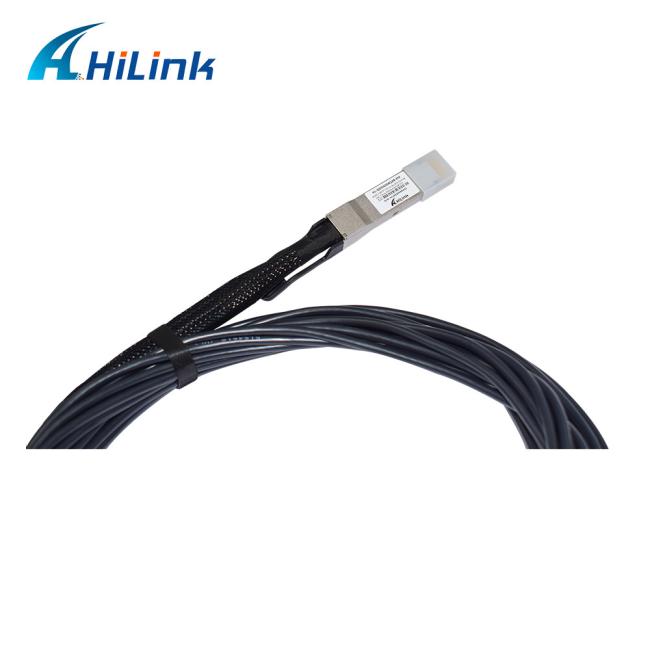

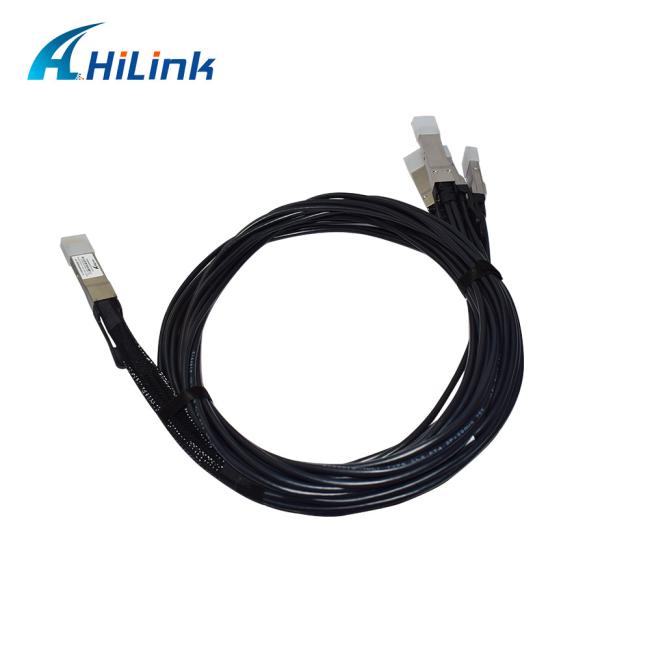

Hilink's HL-QS400G-4QS28-DAC 400G QSFP-DD to 4 QSFP28 Passive Cables assembly feature eight differential copper pairs,providing four data transmission channels at speeds up to 56Gbps(PAM4) per channel,and meets 400G Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.


Features

• Compatible with IEEE 802.3bj and IEEE 802.3cd

• Supports aggregate data rates of 400Gbps(PAM4)

• Side A is QSFP-DD 400G

• Side B is 4x QSFP28 100G

• Cable length available from 0.5M to 3M

• 26AWG through 30AWG cable

Applications

• Switches,servers and routers

• Data Center networks

• Storage area networks

• High performance computing

• Telecommunication and wireless infrastructure

• Medical diagnostics and networking

• Test and measurement equipment

Industry Standards

• 400G Ethernet(IEEE 802.3cd)

• InfiniBand EDR

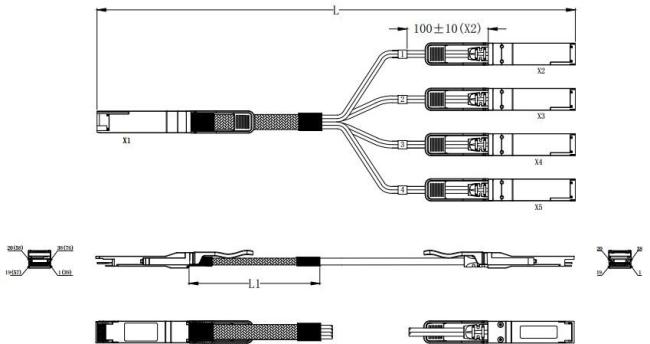

Details Images




Hilink Advantages

1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
