40G ZR4 Lite QSFP+ Transceiver 60KM Dual LC Infiniband QDR/DDR
QSFP+ 40G ZR4 Lite 60KM Dual LC Infiniband QDR/DDR Optical Transceiver
Hilink 40G QSFP+ 60km optical transceiver integrates the transmit and receive path onto one module. Four electric-absorption modulated lasers (DFBs) with 1270~1330nm center wavelengths, which multiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a APD photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
| Item No. | HL-QSFP-ZR4-60 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1270~1330nm | Max Cable Distance | 60KM |
| Interface | LC Duplex | Optical Components | DFBs + APD |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Features
-
4 CWDM channels are 1271, 1291,1311 and 1331 nm
-
Single +3.3V power supply
-
QSFP+ MSA compliant
-
Up to 60km transmission
-
Operating case temperature: 0~70C
-
Maximum 3.5W operation power
-
RoHS compliant
-
Compliant with IEEE802.3ba
-
Compliant with QSFP+ MSA: SFF-8436
Specificatioins
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Data Rate per Channel | - | 10.3125 | 11.2 | Gbps | ||
| Power Consumption | - | 2.5 | 5 | W | ||
| Supply Current | Icc | 0.75 | 1.3 | A | ||
| Control I/O Voltage-High | VIH | 2.0 | Vcc | V | ||
| Control I/O Voltage-Low | VIL | 0 | 0.7 | V | ||
| Inter-Channel Skew | TSK | 150 | Ps | |||
| RESETL Duration | 10 | Us | ||||
| RESETL De-assert time | 100 | ms | ||||
| Power On Time | 100 | ms | ||||
| Transmitter | ||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | 1 | ||
| Common mode Voltage Tolerance | 15 | mV | ||||
| Transmit Input Diff Voltage | VI | 150 | 1200 | mV | ||
| Transmit Input Diff Impedance | ZIN | 85 | 100 | 115 | ||
| Data Dependent Input Jitter | DDJ | 0.3 | UI | |||
| Receiver | ||||||
| Single Ended Output Voltage Tolerance | 0.3 | 4 | V | |||
| Rx Output Diff Voltage | Vo | 370 | 600 | 950 | mV | |
| Rx Output Rise and Fall Voltage | Tr/Tf | 35 | ps | 1 | ||
| Total Jitter | TJ | 0.3 | UI | |||
Note:
1. 20～80%
Applications
-
Rack to rack
-
Data centers Switches and Routers
-
Metro networks
-
Switches and Routers
-
40G BASE-ZR4 Lite
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

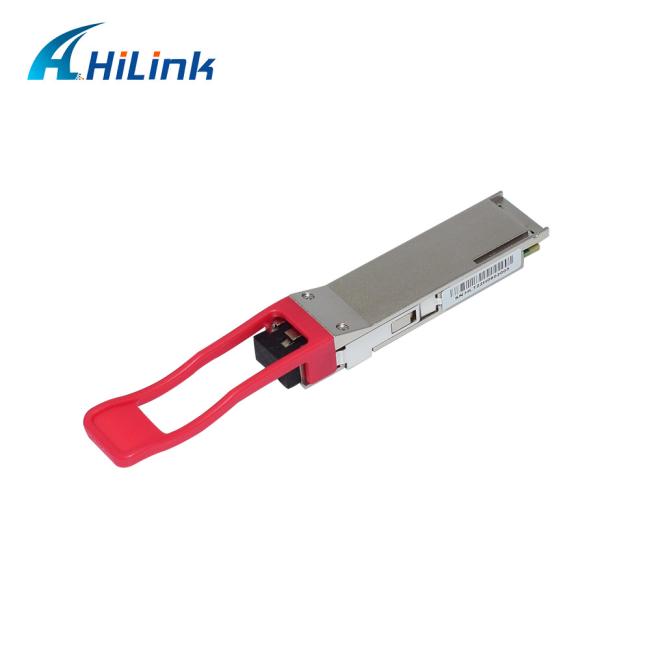

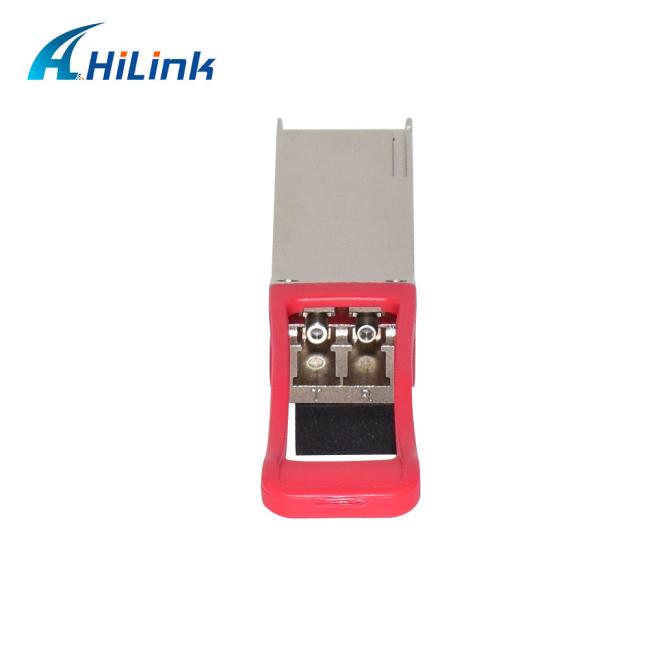

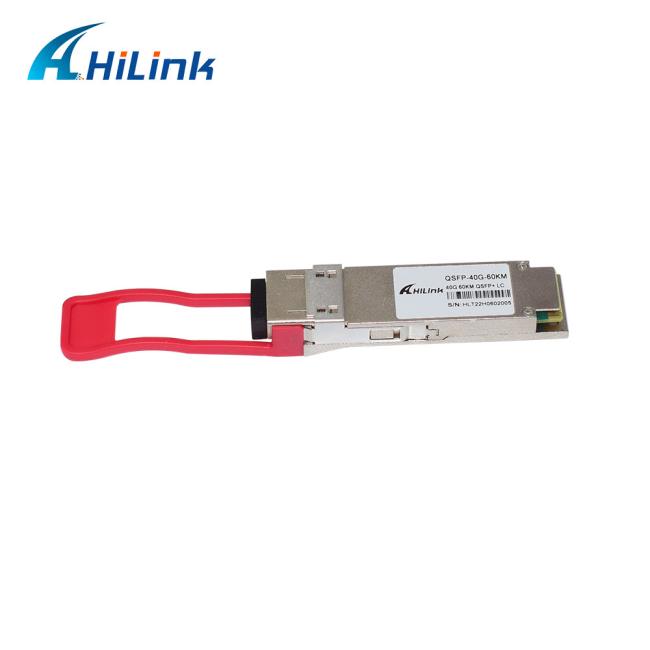

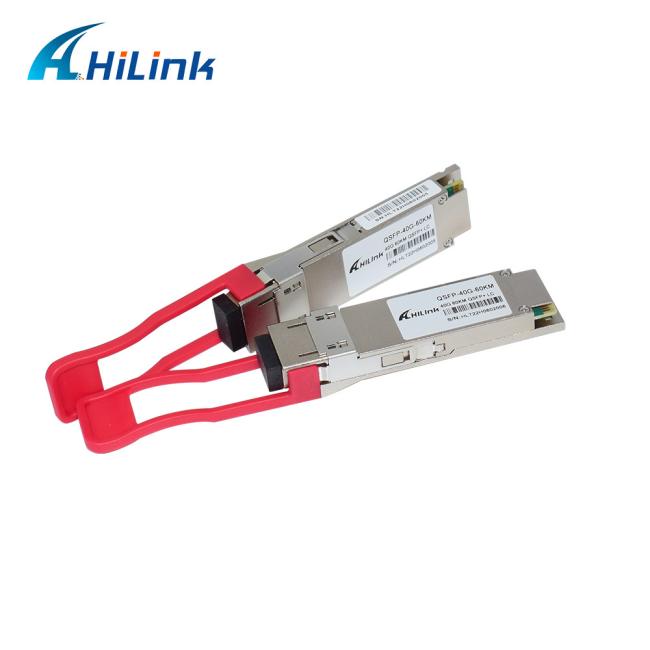

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
