40G PSM LR4 10KM QSFP+ Transceiver MPO/MTP QDR/DDR Infiniband Compliant Optical Module
QSFP+ 40G PSM LR4 10KM MPO/MTP QDR/DDR Infiniband Compliant Optical Module
Hilink 40G QSFP+ PSM LR4 is a transceiver module designed for 10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically
de-multiplexes a 40Gb/s input into 4 channels signals, and converts them to 4 channel output electrical data.
| Item No. | HL-QSFP-PSM-LR4 | Vendor Name | Hilink |
| Form Type | QSFP+ | Max Data Rate | 40Gbps |
| Wavelength | 1310nm | Max Cable Distance | 10KM |
| Interface | MPO/MTP | DOM Support | Yes |
| Cable Type | SMF | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
Features
-
4 CWDM channels are 1271, 1291,1311 and 1331 nm
-
Single +3.3V power supply
-
QSFP+ MSA compliant
-
Up to 60km transmission
-
Operating case temperature: 0~70C
-
Maximum 3.5W operation power
-
RoHS compliant
-
Compliant with IEEE802.3ba
-
Compliant with QSFP+ MSA: SFF-8436
Specificatioins
| Transmitter | ||||||
|
Wavelength Assignment |
1300 |
1311 |
1320 |
nm |
||
| Side-mode Suppression Ratio | SMSR | 30 | - | - | dB | |
| Average Optical Power per Channel | -5 | - | +1 | dBm | ||
| TDP, each Lane | TDP | 2.3 | dB | |||
| Extinction Ratio | ER | 3.5 | - | - | dB | |
|
Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3} |
{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} |
|||||
| Optical Return Loss Tolerance | - | - | 20 | dB | ||
| Average Launch Power OFF Transmitter, each Lane | Poff | -30 | dBm | |||
| Relative Intensity Noise | Rin | -128 | dB/HZ | 1 | ||
| Optical Return Loss Tolerance | - | - | 12 | dB | ||
| Receiver | ||||||
| Damage Threshold | THd | 3.3 | dBm | 1 | ||
| Average Power at Receiver Input, each Lane | R | -12.6 | 0 | dBm | ||
| Receive Electrical 3 dB upper Cut off | 12.3 | GHz | ||||
| Frequency, each Lane | ||||||
| RSSI Accuracy | -2 | 2 | dB | |||
| Receiver Reflectance | Rrx | -26 | dB | |||
| Receiver Power (OMA), each Lane | - | - | 3.5 | dBm | ||
| Receive Electrical 3 dB upper Cutoff Frequency, each Lane | 12.3 | GHz | ||||
| LOS De-Assert | LOSD | -13 | dBm | |||
| LOS Assert | LOSA | -25 | dBm | |||
| LOS Hysteresis | LOSH | 0.5 | dB |
Note:
1. 12dB Reflection
Applications
-
Rack to rack
-
Data centers Switches and Routers
-
Metro networks
-
Switches and Routers
-
40G BASE-LR4-PSM Ethernet Links
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

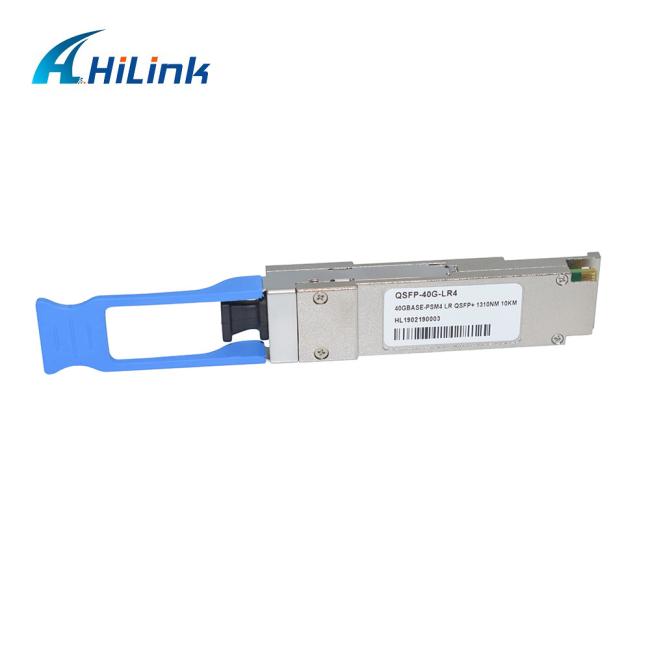

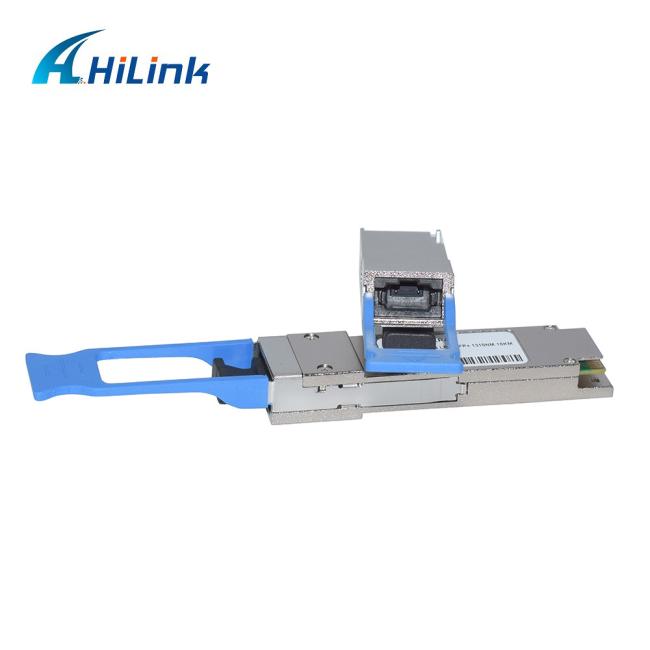

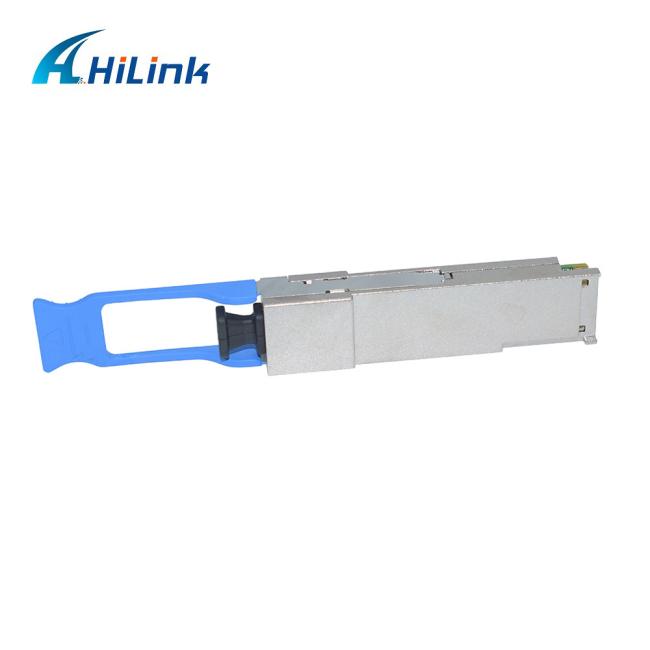

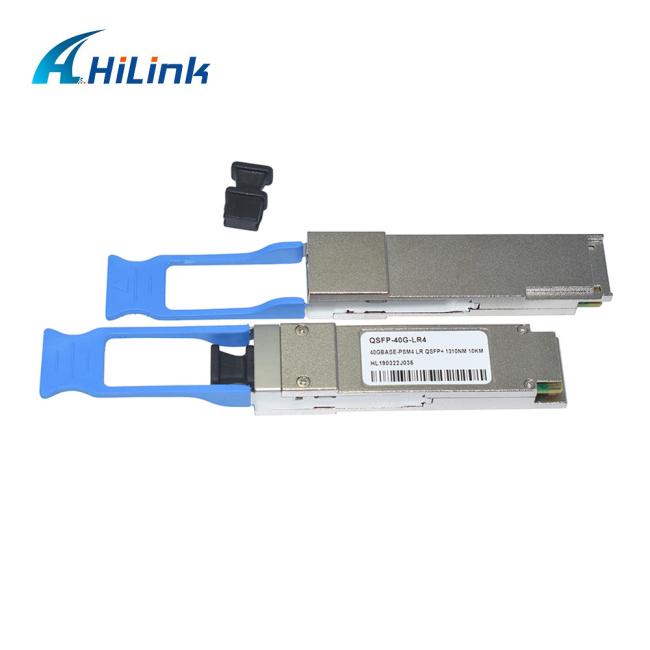

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
